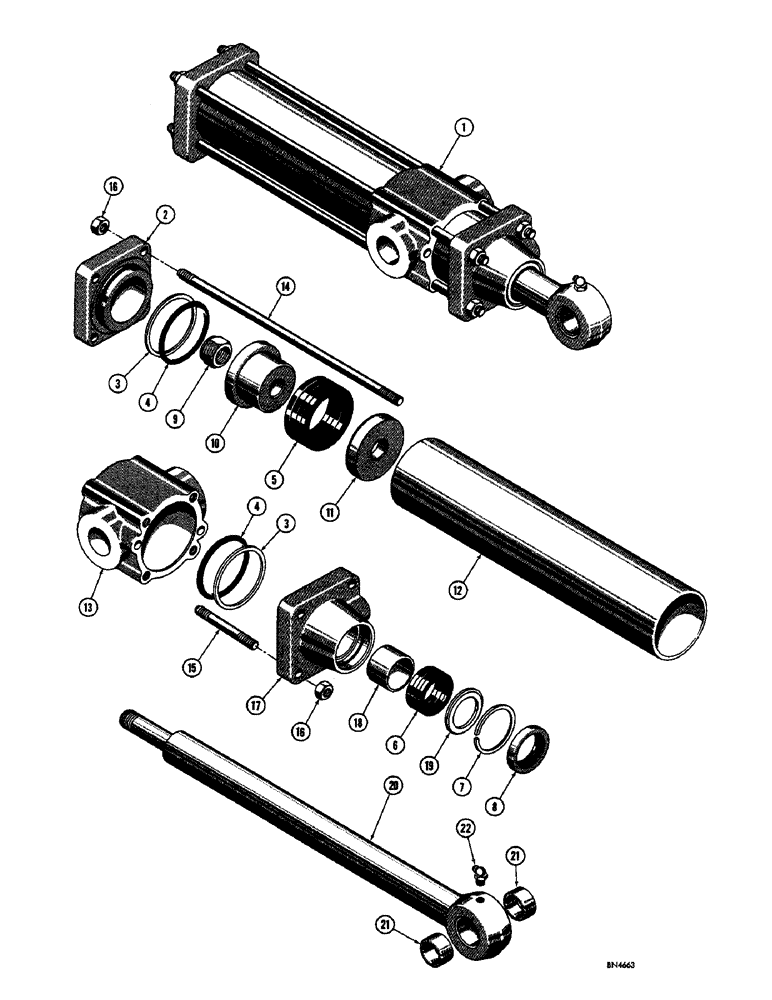

Запчасти Case 750 (246) - * R16739 RIPPER CYLINDER (07) - HYDRAULIC SYSTEM

1

R16739

X

CYLINDER - hydraulic, ripper raise and lower (3-1/2" ID x 14-5/16" stroke) When stock is exhausted, use D28766 cylinder for service (Parts list Fig. 248)

1шт.

2

R16779

END - cylinder

1шт.

D30142

KIT

- packing, tie rod type cylinders

1шт.

3

D24987

RING

- backup, leather

2шт.

4

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "o" ring

2шт.

5

17578

PACKING

- piston

1шт.

6

30568

PACKING

- piston rod

1шт.

7

70742

WASHER

2.50", Int, #250

1шт.

8

30574

WIPER SEAL

SEAL - wiper

1шт.

9

R12336

LOCK NUT

- lock (1" - 14 NF)

1шт.

10

R14107

BLOCK - piston

1шт.

11

R19909

WASHER - packing retaining

1шт.

12

R16784

TUBE - hydraulic cylinder

1шт.

13

70331

TRUNNION - hydraulic cylinder

1шт.

14

R16781

ROD - tie, long

4шт.

15

R16780

ROD - tie, short

4шт.

16

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

8шт.

17

R18788

CAP - cylinder end

1шт.

18

R18782

BUSHING - end cap

1шт.

19

D25043

WASHER

- packing, piston rod

1шт.

20

R18781

ROD - piston (1-3/4" dia.)

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

2шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
