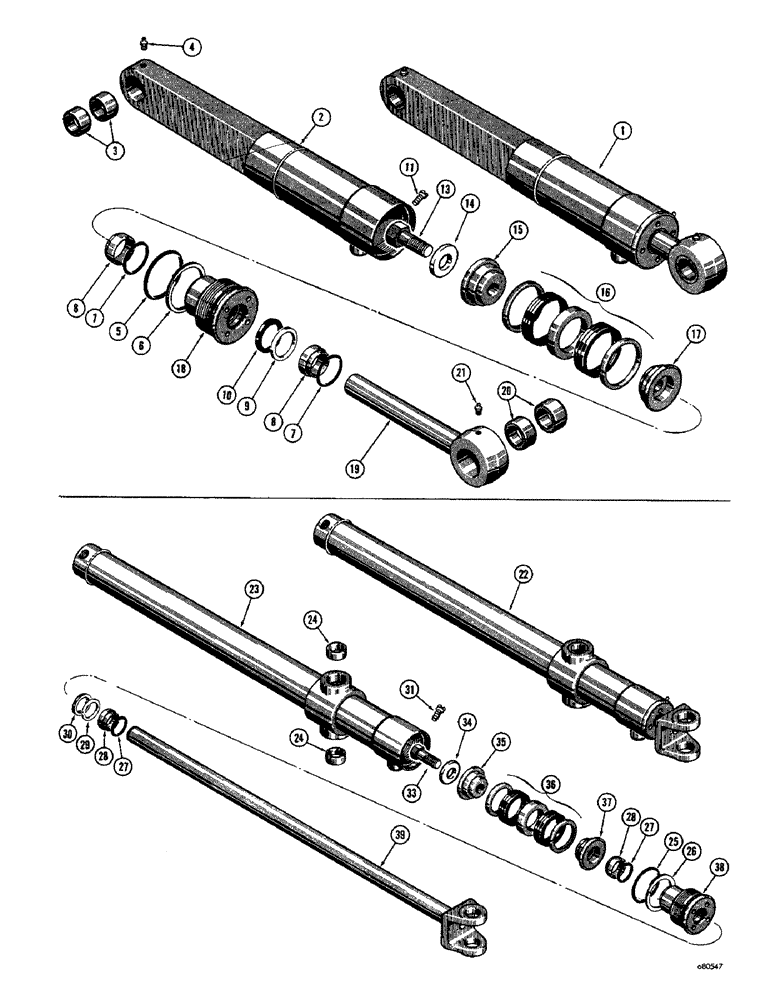

Запчасти Case 750 (244) - D32907 POWER TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

D32907

X

CYLINDER - hydraulic, power tilt (3-1/2" dia. x 4-1/16" stroke)

1шт.

2

D32906

TUBE - cylinder

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

1шт.

D42873

GASKET KIT

KIT - gland packing

1шт.

5

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "o" ring, gland

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "o" ring, wiper

2шт.

8

D27432

SHIM

- rod

2шт.

9

D28499

RING

- backup, rod seal

1шт.

10

D36970

CUP

SEAL - piston rod

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

12

RESERVED

1шт.

13

D32861

BOLT

- special

1шт.

14

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- bolt

1шт.

15

D28367

PISTON

- split, bolt end

1шт.

16

D36963

PACKING

- piston

1шт.

17

D28369

PISTON

- split, eye end

1шт.

18

D27431

GLAND

- packing, uses A14515 seal (When stock is exhausted use D45069 gland for service)

1шт.

D45069

GLAND

- packing

1шт.

19

D32905

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

1шт.

22

D32844

CYLINDER - hydraulic, dozer lift (LH) 3" dia. x 31" stroke, d32844 & D32845

1шт.

D32845

CYLINDER

- hydraulic, dozer lift (RH) 3" dia. x 31" stroke, D32844 & D32845

1шт.

23

D32841

TUBE

- LH, D32844 & D32845 dozer lift cylinder

1шт.

D32842

TUBE - RH, D32844 & D32845 dozer lift cylinder

1шт.

24

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube, D32844 & D32845 dozer lift cylinder

2шт.

D42870

GASKET KIT

KIT - gland packing, D32844 & D32845 dozer lift cylinder

1шт.

25

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "o" ring, gland, D32844 & D32845 dozer lift cylinder

1шт.

26

D28049

RING

- backup, gland seal, D32844 & D32845 dozer lift cylinder

1шт.

27

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "o" ring, wiper, D32844 & D32845 dozer lift cylinder

2шт.

28

D27706

WIPER SEAL

WIPER - rod, D32844 & D32845 dozer lift cylinder

2шт.

29

D28498

RING

- backup, rod seal, D32844 & D32845 dozer lift cylinder

1шт.

30

D36969

CUP

SEAL - piston rod, D32844 & D32845 dozer lift cylinder

1шт.

31

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4", D32844 & D32845 dozer lift cylinder

1шт.

32

RESERVED

1шт.

33

D29306

BOLT

- special, D32844 & D32845 dozer lift cylinder

1шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- bolt, D32844 & D32845 dozer lift cylinder

1шт.

35

D28366

PISTON

- split, bolt end, D32844 & D32845 dozer lift cylinder

1шт.

36

D28374

PACKAGE,SERVICE

PACKING - piston, D32844 & D32845 dozer lift cylinder

1шт.

37

D28365

PISTON

- split, eye end, D32844 & D32845 dozer lift cylinder

1шт.

38

D28048

GLAND

- packing, uses D27878 seal (When stock is exhausted, use D45067 gland for service), D32844 & D32845 dozer lift cylinder

1шт.

D45067

GLAND

- packing, D32844 & D32845 dozer lift cylinder

1шт.

39

D32839

PISTON ROD

ROD - piston (1-1/2" dia.), D32844 & D32845 dozer lift cylinder

1шт.
