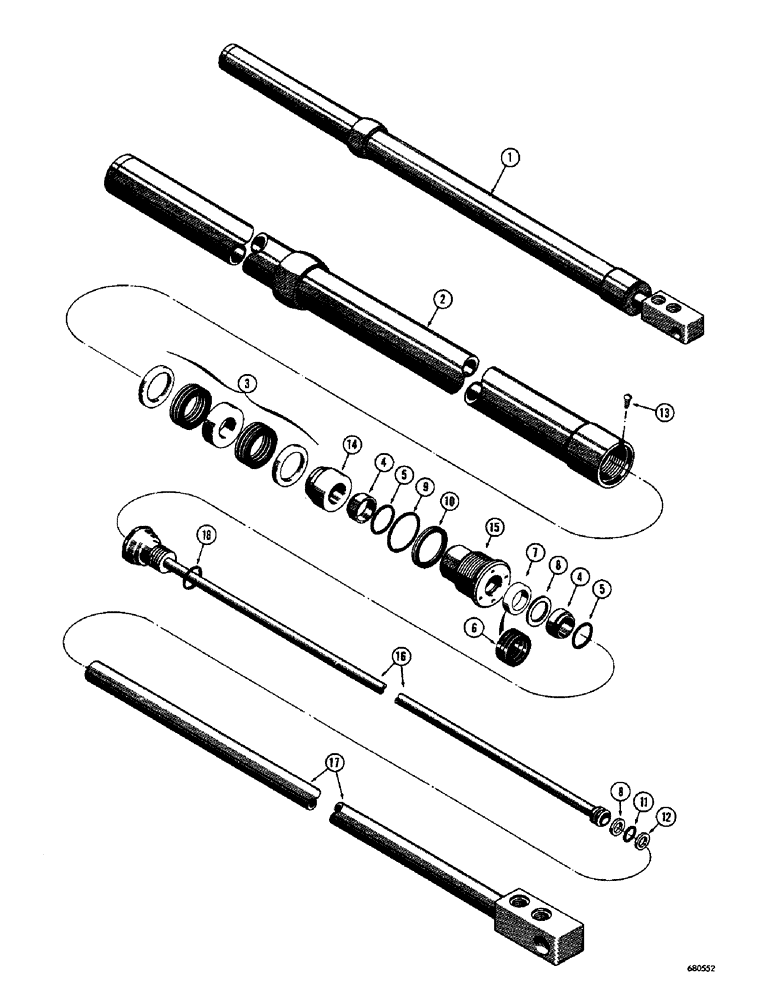

Запчасти Case 750 (242) - D32986 POWER ANGLING CYLINDER (07) - HYDRAULIC SYSTEM

1

D32986

CYLINDER

- hydraulic, power angling (2-1/2" dia. x 40" stroke)

2шт.

2

D32955

TUBE - cylinder

1шт.

D37360

KIT

- packing, gland type cylinder

1шт.

3

D28373

PACKING

- piston

1шт.

4

D27706

WIPER SEAL

WIPER - rod

2шт.

5

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "o" ring (If used)

2шт.

6

D28494

SEAL

PACKING - rod (3 piece) Order D36969 packing for service

1шт.

7

D36969

CUP

PACKING - rod (1 piece)

1шт.

8

D28498

RING

- backup

3шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

10

D27856

RING

- backup

1шт.

11

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

12

D34938

BACK-UP RING,0.827" OD

- backup

2шт.

13

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping

1шт.

14

D32970

PISTON

- split, rod end

1шт.

15

D27999

GLAND

- packing, uses D27878 seal (When stock is exhausted, used D45066 gland for service)

1шт.

D45066

GLAND

- packing

1шт.

16

D34928

TUBE

- hydraulic, piston rod (Inner)

1шт.

17

D32975

ROD

- piston (1-1/2" dia.)

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - "o" ring (If used)

1шт.
