(236[1]) - A17668 AND A17669 DROTT CLAM CYLINDER

Запчасти Case 750 (236[1]) - A17668 AND A17669 DROTT CLAM CYLINDER (07) - HYDRAULIC SYSTEM

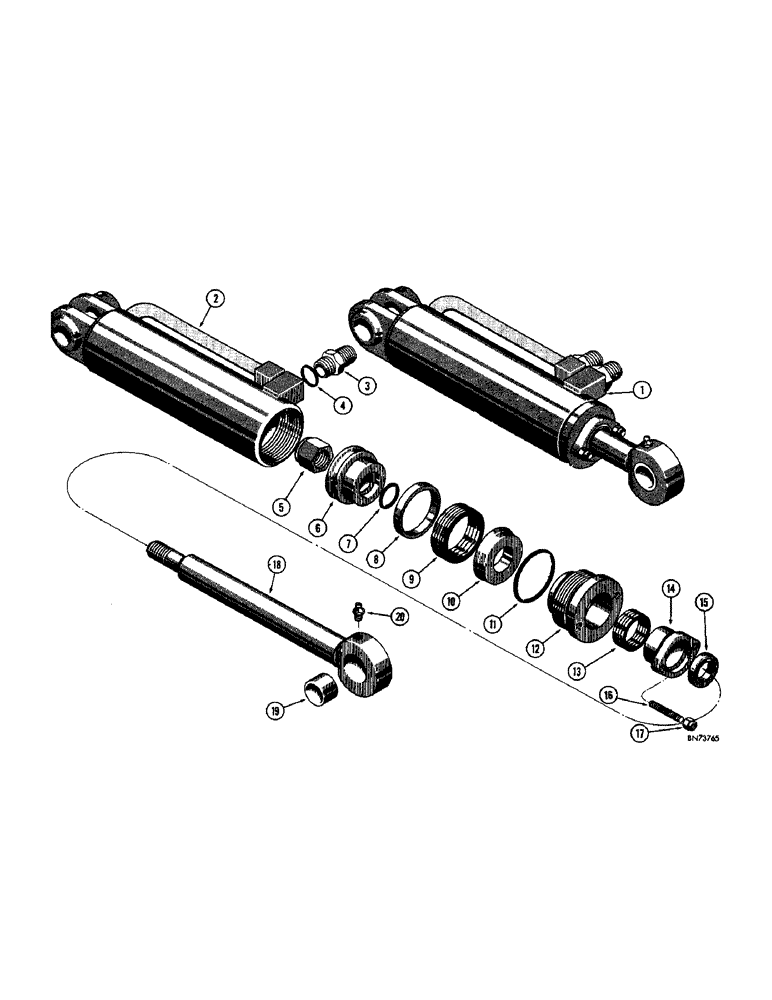

Схема запчастей Case 750 - (236[1]) - A17668 AND A17669 DROTT CLAM CYLINDER (07) - HYDRAULIC SYSTEM
17
13
20
15
5
8
7
16
19
6
10
3
14
1
18
11
2
9
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A17668

CYLINDER

- hydraulic, clam (RH) 4" dia. x 10" stroke

1шт.

A17669

CYLINDER

- hydraulic, clam (LH) 4" dia. x 10" stroke

1шт.

2

A17682

CYLINDER

TUBE - cylinder, RH

1шт.

A17683

CYLINDER

TUBE - cylinder, LH

1шт.

3

A17684

ROD, CONNECTING

CONNECTOR - male, special

2шт.

4

A17685

O-RING

SEAL - "o" ring

1шт.

5

A17709

NUT

- hex., lock

1шт.

6

A17681

PISTON

- half, nut end

1шт.

7

A17680

O-RING

SEAL - "o" ring

1шт.

8

A17686

RING

- wiper

1шт.

9

A17679

KIT

PACKING - piston

1шт.

10

A17678

PISTON

- half, eye end

1шт.

11

A17677

O-RING

SEAL - "o" ring

1шт.

12

A17676

CYLINDER HEAD

GLAND - packing, outer

1шт.

13

A17675

PACKING

- gland

1шт.

14

A17674

GLAND

- packing, inner

1шт.

15

A17672

SEAL

SEAL - wiper

1шт.

16

A17673

STUD

- flange

2шт.

17

131-181

LOCK NUT,3/8"-24, GC

NUT - hex., lock (3/8" x 24 NF)

2шт.

18

A17671

ROD

- cylinder

1шт.

19

A18692

BUSHING

- cylinder

1шт.

20

219-11

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight (1/4" - 28 NF)

1шт.
