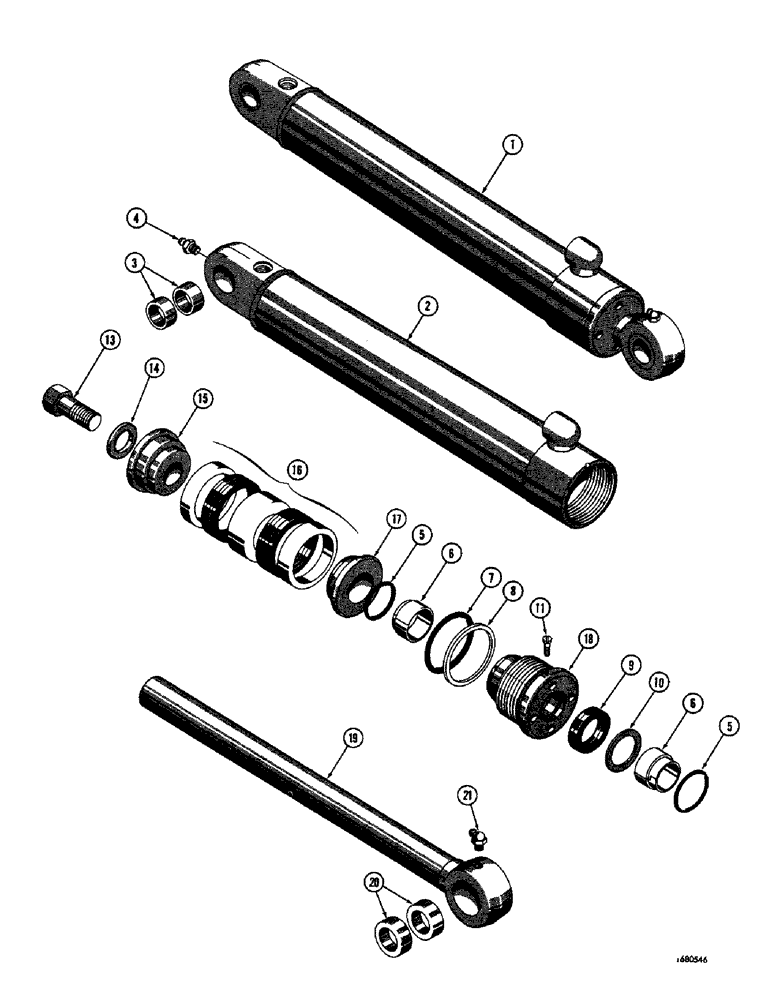

Запчасти Case 750 (234) - D31693 LOADER DUMP CYLINDER (07) - HYDRAULIC SYSTEM

1

D31693

CYLINDER

- hydraulic, loader dump (4" dia. x 21-13/16" stroke) Used on tractor serial no. 7070389 and after

2шт.

2

D31645

TUBE

- cylinder

1шт.

3

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

1шт.

D42876

GLAND

KIT - gland packing

1шт.

5

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "o" ring, rod wiper

2шт.

6

D27380

SCRAPER RING

WIPER - rod

2шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "o" ring, gland

1шт.

8

D27382

RING

- backup, gland seal

1шт.

9

D36971

RING

SEAL - piston rod

1шт.

10

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

12

RESERVED

1шт.

13

D31642

BOLT

- special

1шт.

14

D36434

WASHER

- bolt

1шт.

15

D28370

PISTON

- split, bolt end

1шт.

16

D28376

SEAL

PACKING - piston (When stock is exhausted, use D36964 packing for service)

1шт.

D36964

PACKING

- piston

1шт.

17

D28371

PISTON

- split, eye end

1шт.

18

D27386

HEAD

GLAND - packing, uses D26115 seal (When stock is exhausted, use D45071 gland for service)

1шт.

D45071

GLAND

- packing

1шт.

19

D31692

ROD - piston (2" dia.)

1шт.

20

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.
