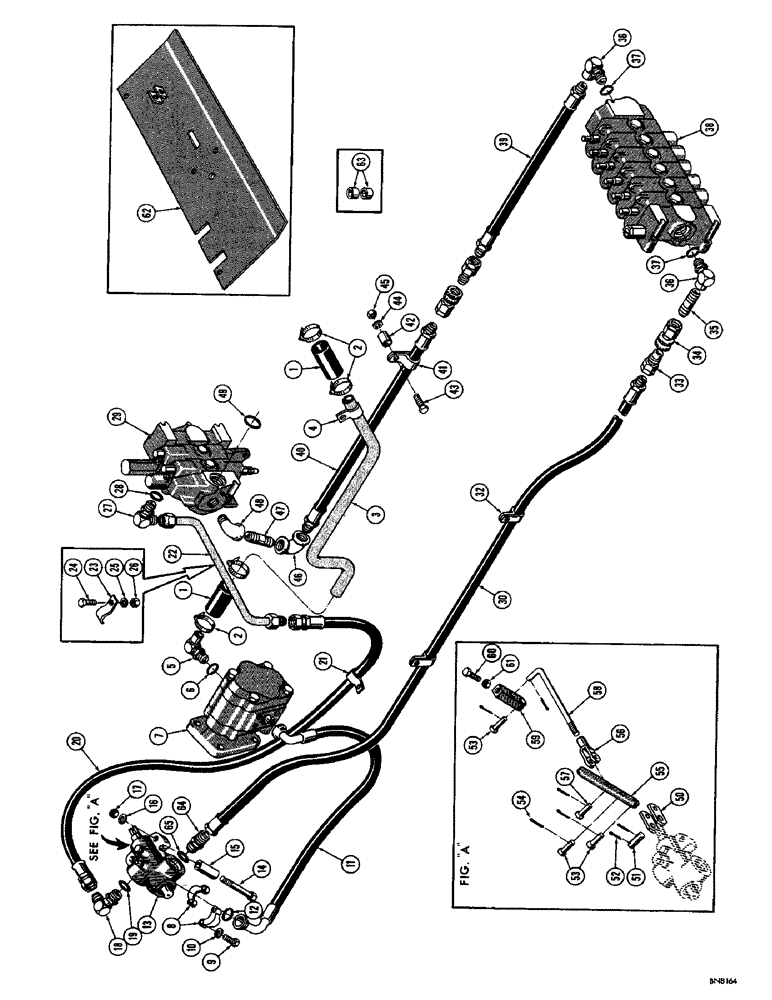

Запчасти Case 750 (222) - BASIC BACKHOE HYDRAULICS (07) - HYDRAULIC SYSTEM

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- suction, from reservoir (4") 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

3

D30477

TUBE - hydraulic, Serial Range: tank-pump

1шт.

4

D30488

CLAMP - tube

1шт.

5

D30511

FITTING

ELBOW - special, 90 degrees

1шт.

6

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

7

D31206

PUMP

- hydraulic (Parts list Fig. 250)

1шт.

8

A12306

FLANGE

- split, at pump and diverter valve

2шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

10

92-6

LOCK WASHER,3/8"

8шт.

11

D34048

HOSE - pump to diverter valve (Special)

1шт.

12

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "o" ring

2шт.

13

A19957

VALVE

- diverter (For valve breakdown, see Model 32 Backhoe Parts Catalog for crawlers)

1шт.

14

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

15

D34061

SPACER - valve mounting

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

18

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

20

D34050

HOSE ASSY.

HOSE - from diversion valve (49" long)

1шт.

21

D34033

CLAMP

- hose

1шт.

22

D30476

TUBE - to equipment control valve

1шт.

23

49782

CLAMP - D30476 tube

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

29

REF

INSTRUCTION

VALVE - equipment control (See Fig. 252 and 254 for proper valve)

1шт.

30

D34046

HOSE - diverter valve to backhoe valve (84" long)

1шт.

31

RESERVED

1шт.

32

D34033

CLAMP

- hose

2шт.

33

D31617

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, male (For breakdown, see Model 32 Backhoe Parts Catalog for crawlers)

2шт.

34

D31618

COUPLING, BREAK AWAY

COUPLING - quick-disconnect, female (For breakdown, see Model 32 Backhoe Parts Catalog for crawlers)

2шт.

35

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe (1/2" x 3")

1шт.

36

D26463

FITTING

ELBOW - special, 90 degrees

2шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "o" ring, elbow

1шт.

38

REF

INSTRUCTION

VALVE - backhoe (For proper valve, see Model 32 Backhoe Parts Catalog for crawlers)

1шт.

39

D31476

HOSE ASSY.

HOSE - return, from backhoe valve (41" long)

1шт.

40

D34052

HOSE - return, to equipment control valve (30" long)

1шт.

41

D34033

CLAMP

- hose

1шт.

42

D34032

SPACER

- clamp bolt

1шт.

43

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

44

92-8

LOCK WASHER,1/2"

If used 1/2"

1шт.

45

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) If used

1шт.

46

221-378

ELBOW,90 Degree, 3/4" NPT

- pipe, 90 degrees

1шт.

47

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe, 3/4" x 3"

1шт.

48

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- street, 45 degrees

1шт.

49

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "o" ring at hydraulic tank

1шт.

50

D34056

LINK - diverter valve spool

2шт.

51

D34036

PIN - link at valve

1шт.

52

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

53

B18292

AXLE PIN

PIN - linkage pivot

3шт.

54

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

5шт.

55

D34057

LEVER

- diverter valve

1шт.

56

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod, throttle stop bracket

1шт.

57

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

58

D34058

ROD - throttle stop bracket

1шт.

59

D34059

BRACKET - throttle stop

1шт.

60

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

1шт.

61

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

62

D34069

PLATE - floor, front

1шт.

63

O2062HT

SPACER - seat mounting studs

8шт.

64

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, HYD., , Tube, Straight 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

65

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "o" ring, connector

1шт.
