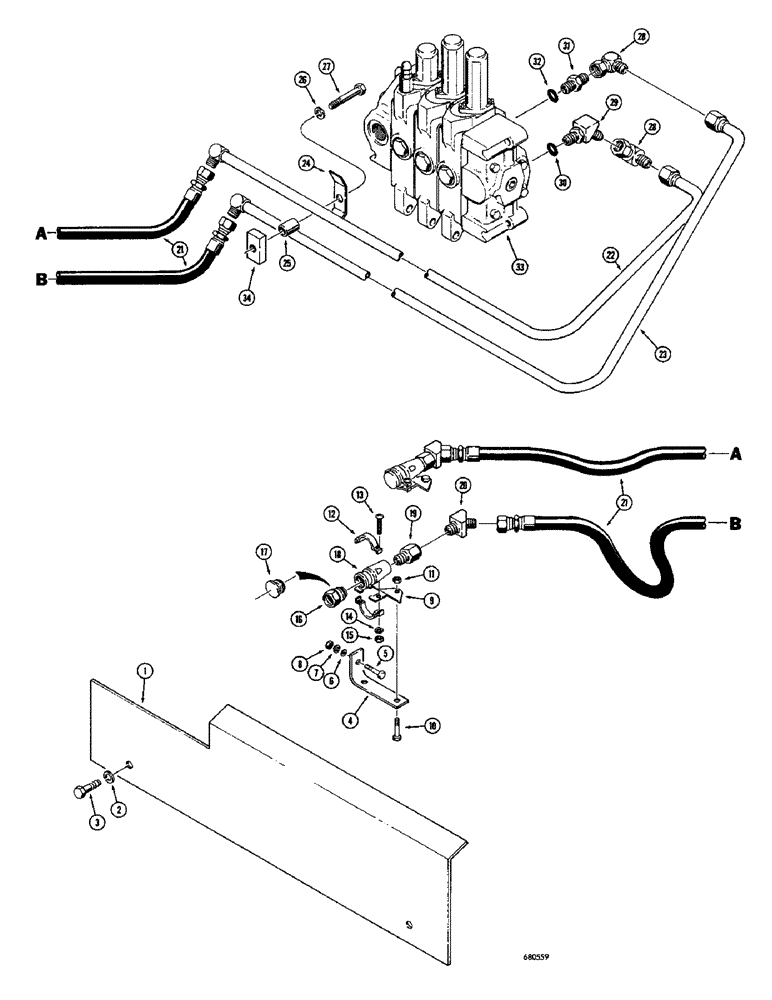

Запчасти Case 750 (220) - PULL BEHIND HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D40299

GUARD - rear

1шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4

2шт.

4

D40298

BRACKET - pull behind

1шт.

5

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2" - 20 NF x 2"

1шт.

6

195-33

WASHER,1/2"

- plain (17/32")

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

1шт.

9

A27360

BRACKET

- coupling mounting

2шт.

10

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

12

A27423

CLAMP

- coupling mounting

4шт.

13

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- round head machine (#8 - 32 NC x 5/8")

4шт.

14

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

15

129-6

NUT,#8-32

4шт.

16

A28541

COUPLING, BREAK AWAY

COUPLING - male

2шт.

17

A22768

PLUG

- dust, coupling

2шт.

18

A28542

COUPLING, QUICK, FEM

COUPLING - female

2шт.

19

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- coupling, special

2шт.

20

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degrees

2шт.

21

19178

HOSE

- pull behind (33-1/2" long)

2шт.

22

D40296

TUBE - lower port

1шт.

23

D40294

TUBE - upper port

1шт.

24

R17319

CLAMP

- tube

1шт.

25

D33552

BUSHING

SPACER - clamp

1шт.

26

92-5

LOCK WASHER,5/16"

1шт.

27

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

28

50003

ELBOW

- special, 90 degrees

2шт.

29

D35130

X

ELBOW - special, 45 degrees

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

31

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight

1шт.

32

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

33

REF

INSTRUCTION

VALVE - control, see page 254 for proper valve

1шт.

34

D24663

BLOCK

- tube support

1шт.
