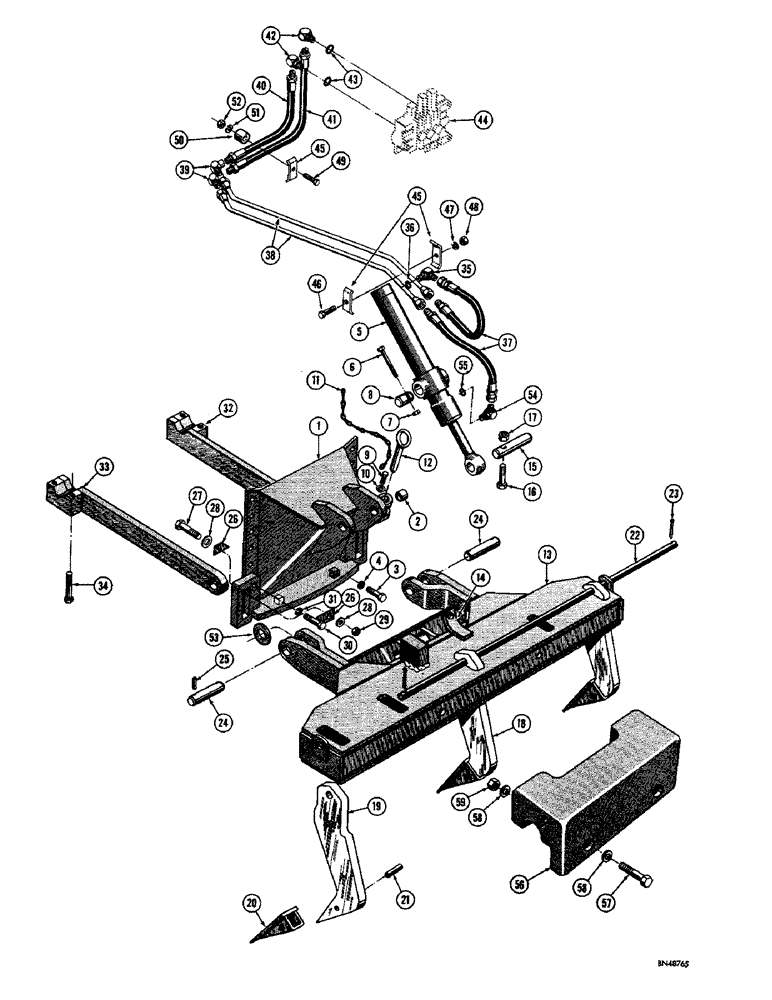

Запчасти Case 750 (216) - * RIPPER AND RIPPER HYDRAULICS, (LATE PRODUCTION) (07) - HYDRAULIC SYSTEM

1

D29486

BACKING PLATE - ripper

1шт.

2

70332

BUSHING - backing plate

2шт.

3

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(If used) Hex, 5/8"-18 x 1 1/2", G5

10шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(If used) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

10шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

5

D28766

CYLINDER

- hydraulic, ripper lift and lower (Parts list Fig. 248)

1шт.

6

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

2шт.

7

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

2шт.

8

70333

PIN - cylinder attaching

2шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8")

1шт.

11

35393

AXLE-SHAFT, ARTICULA

CHAIN - pin attaching

1шт.

12

72101

PIN - ripper frame locking

1шт.

13

D31805

FRAME - ripper

1шт.

14

R19989

BRACKET - ripper latch

1шт.

15

D31841

AXLE PIN

PIN - ripper frame to hydraulic cylinder

1шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

17

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

1шт.

18

R17659

TOOTH ASSEMBLY - ripper

3шт.

19

R17501

SHANK

1шт.

20

74172

TOOTH

1шт.

21

138-207

LOCK PIN,1/2" x 2 1/4", Slotted

PIN, 1/2" x 2 1/4", Slotted

1шт.

22

R17652

ROD - ripper tooth attaching

1шт.

23

135-773

PIN - groove, 5/16" dia. x 1-3/4"

2шт.

24

D30473

PIN - ripper frame attaching

2шт.

25

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

4шт.

26

D30441

SPARE PART

WEDGE BLOCK - ripper arm guide

4шт.

27

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

28

D31694

WASHER - special

4шт.

29

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

30

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8" - 18 NF x 3" (If used)

2шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(If used) Hex, 5/8"-11 x 3", G5

2шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

32

D30452

ARM - ripper attaching, RH

1шт.

33

D30451

ARM - ripper attaching, LH

1шт.

34

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

HHCS - 3/4" - 10 NC x 5-1/2"

4шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

37

36547

HOSE

- hydraulic cylinder to tube (19" long)

2шт.

38

D30507

TUBE - hydraulic cylinder to equipment control valve

2шт.

39

D26361

FITTING

ELBOW - special, 90 degrees

2шт.

40

D30504

HOSE - hydraulic cylinder, upper port to equipment control valve (18" long)

1шт.

41

D30503

HOSE - hydraulic cylinder, lower port to equipment control valve (22" long)

1шт.

42

D29145

ELBOW UNION

ELBOW - special, 90 degrees

2шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

44

REF

INSTRUCTION

VALVE - equipment control (See Fig. 252 and 254 for proper valve)

1шт.

45

32978

PLATE ASSY.

CLAMP - tube

3шт.

46

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.
