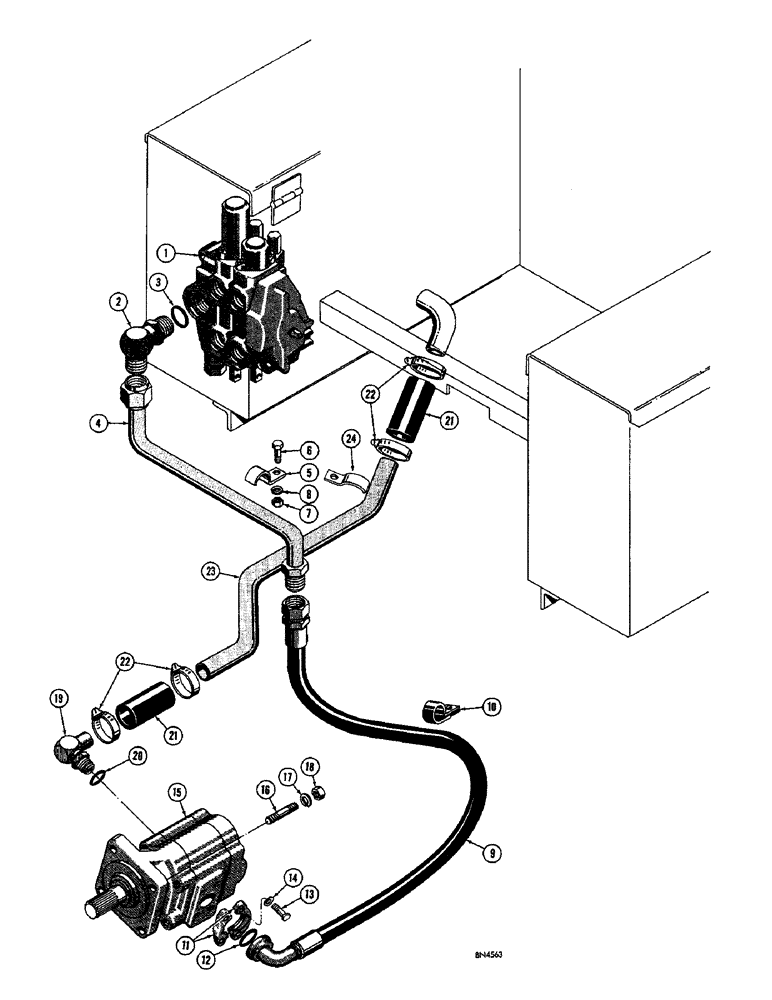

Запчасти Case 750 (210) - LOADER AND DOZER PRIMARY HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Fig. 252 and 254 for proper valve)

1шт.

2

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable (Used with two spool valves)

1шт.

D32134

ELBOW UNION

ELBOW - special, 90 degrees (Used with three spool valves)

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

4

D30476

TUBE - hydraulic pump to equipment control valve, inlet section

1шт.

5

49782

CLAMP - tube

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

8

92-5

LOCK WASHER,5/16"

1шт.

9

R22214

HOSE

- hydraulic pump to equipment control valve, inlet section (36-1/2" long)

1шт.

10

D30474

CLAMP

- hose

1шт.

11

A12306

FLANGE

- split, set

1шт.

12

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

D31206

PUMP

- hydraulic, 28.5 GPM at 1900 RPM at 1875 PSI (Commercial shearing #P25X178BEGBC 15-7) Parts list Fig. 250

1шт.

16

D32386

STUD

- 1/2" - 13 NC x 3-1/8"

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

19

D30511

FITTING

ELBOW - special, 90 degrees

1шт.

20

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

21

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

22

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

23

D30477

TUBE - hydraulic tank to hydraulic pump

1шт.

24

D30488

CLAMP - tube

1шт.
