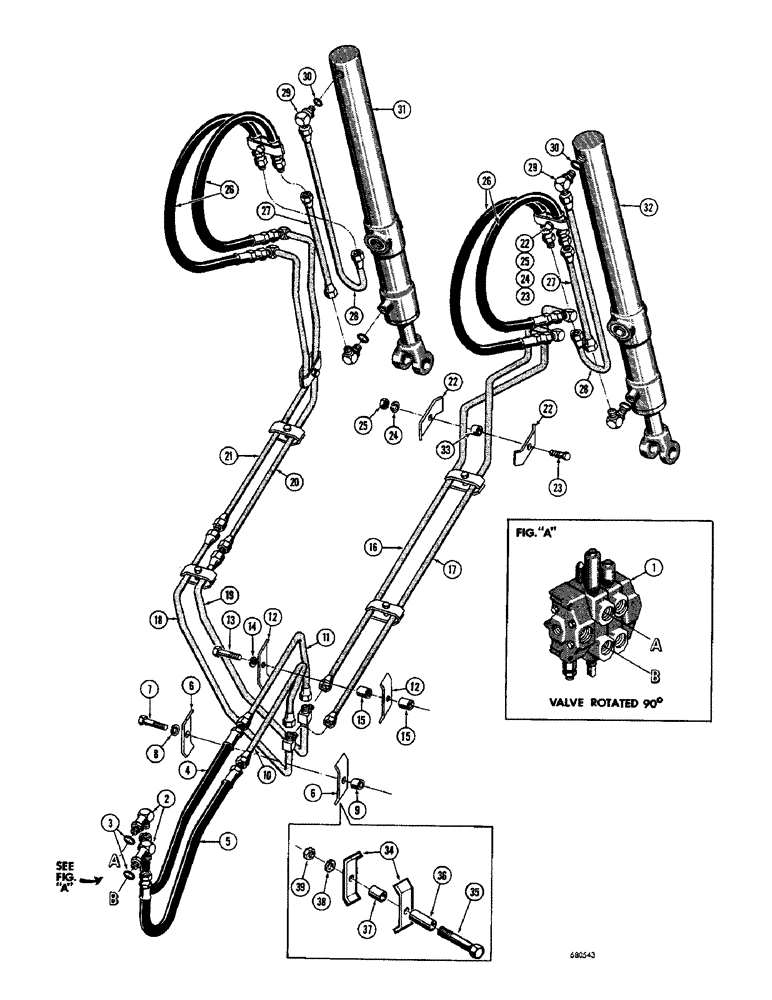

Запчасти Case 750 (208) - DOZER LIFT HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Fig. 254 proper valve)

1шт.

2

D30444

ELBOW UNION

ELBOW - adjustable, 90 degrees

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

4

D31794

HOSE ASSY.

HOSE - valve to lift cylinder (29" long) Rod end

1шт.

5

D32823

HOSE - valve to lift cylinder (23" long) Closed end

1шт.

6

R16917

CLAMP - hose (If used)

2шт.

7

14-544

SCREW,Hex, 5/16" - 24 x 2 3/4"

HHCS - 5/16" - 24 NF x 2-3/4"

1шт.

8

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

9

D33552

BUSHING

SPACER - clamp

1шт.

10

D32829

TUBE - valve to lift cylinder, closed end

1шт.

11

D32819

TUBE - valve to lift cylinder, rod end

1шт.

12

32978

PLATE ASSY.

CLAMP - tube (If used)

2шт.

13

14-536

CAPSCREW,Hex, 5/16" - 24 x 2 1/4", Gr 5

HHCS - 5/16" - 24 NF x 2-1/4"

1шт.

14

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

15

D33552

BUSHING

SPACER - clamp

2шт.

16

R17253

TUBE - valve to lift cylinder (RH) Rod end

1шт.

17

R19627

TUBE - valve to lift cylinder (RH) Closed end

1шт.

18

R22219

TUBE

- valve to lift cylinder (LH) Closed end

1шт.

19

R22217

TUBE

- valve to lift cylinder (LH) Rod end

1шт.

20

R17255

TUBE - valve to lift cylinder (LH) Rod end

1шт.

21

R19628

TUBE - valve to lift cylinder (LH) CLosed end

1шт.

22

R16916

CLAMP - tube

16шт.

23

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

8шт.

24

195-21

WASHER,5/16"

- plain () 5/16"

8шт.

25

131-4

LOCK NUT,5/16"-18, GB

NUT - lock (5/16" - 18 NC)

8шт.

26

D32833

HOSE ASSY.

HOSE - valve to lift cylinder (30" long)

4шт.

27

D32827

TUBE - valve to lift cylinder, rod end

2шт.

28

D32825

TUBE - valve to lift cylinder, closed end

2шт.

29

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees

4шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

31

D32844

CYLINDER - hydraulic, dozer lift, LH (Parts list Fig. 244)

1шт.

32

D32845

CYLINDER

- hydraulic, dozer lift, RH (Parts list Fig. 244)

1шт.

33

D33552

BUSHING

SPACER - clamp

6шт.

34

31665

COLLAR CLAMP

CLAMP - tube and hose (If used)

4шт.

35

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4"

2шт.

36

D34632

BUSHING

SPACER - clamp

2шт.

37

D33552

BUSHING

SPACER - clamp

2шт.

38

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

39

131-4

LOCK NUT,5/16"-18, GB

NUT - lock (5/16" - 18 NC)

2шт.
