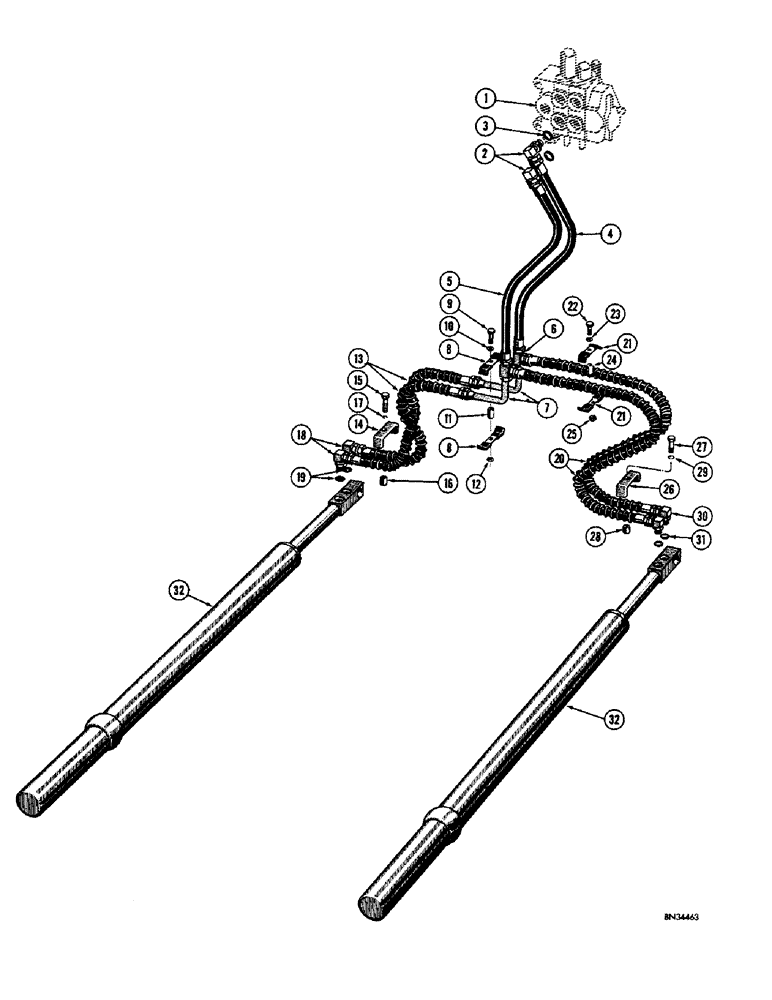

Запчасти Case 750 (202) - POWER ANGLING DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, equipment control (See Fig. 254 for proper valve)

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

4

D32923

HOSE - valve to RH angling cylinder front port, LH angling cylinder rear port (26" long)

1шт.

5

D32835

HOSE - valve to RH angling cylinder rear port, LH angling cylinder front port (21" long)

1шт.

6

218-595

TEE,7/8"-14, 37 Degree

- 5/8" JIC x 5/8" JIC

2шт.

7

D33021

TUBE - valve to RH angling cylinder

2шт.

8

R16916

CLAMP - tube

2шт.

9

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8")

1шт.

11

D33552

BUSHING

SPACER

1шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

13

D33019

HOSE ASSY.

HOSE - valve to RH angling cylinder (21" long)

2шт.

14

R17393

CLAMP - hose

1шт.

15

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

1шт.

16

R17394

SPACER - clamp

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

20

D34628

HOSE

- valve to LH angling cylinder (51" long)

2шт.

21

R16916

CLAMP - hose

2шт.

22

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8")

1шт.

24

D34089

SPACER

1шт.

25

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

26

R17393

CLAMP - hose

1шт.

27

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

1шт.

28

R17394

SPACER - clamp

1шт.

29

92-8

LOCK WASHER,1/2"

1шт.

30

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

2шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

32

D32986

CYLINDER

- hydraulic, dozer angling (Parts list Fig. 242)

2шт.
