Запчасти Case 750 (282) - TOOLS, GREASE GUN AND DECALS Invalid section

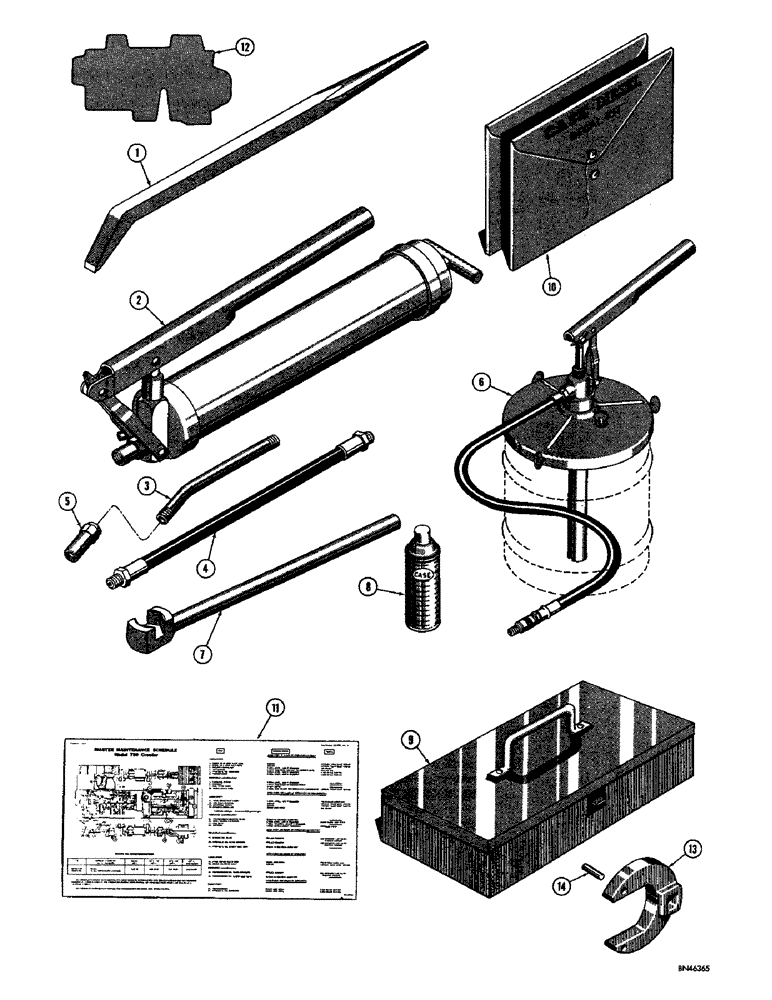

Схема запчастей Case 750 - (282) - TOOLS, GREASE GUN AND DECALS Invalid section
1
2
3
5
4
7
10
12
11
13
8
9
6
14

Артикул

Название

Примечание

Количество

1

NLS

NO LONGER SERVICED

BAR - pinch

1шт.

2

D28955

BARREL & LEVER - grease gun, hand type (15 ounce)

1шт.

3

D28956

CABLE EXTENSION

EXTENSION - nozzle

1шт.

4

D28957

HOSE

- flex (12" long)

1шт.

5

D28958

COUPLING, QUICK, FEM

COUPLER - hydraulic

1шт.

6

71261

PUMP ASSEMBLY - lubricant

1шт.

R12163

PUMP

1шт.

R12179

NOZZLE - non drip

1шт.

R12180

HOSE - flex (3 ft. long)

1шт.

R12181

SCREW - thumb (1/2" - 20 NC)

3шт.

R12182

SCREW - thumb (5/16" - 18 NC)

1шт.

R12183

WASHER - plunger packing

1шт.

R12184

COVER

1шт.

R12185

CLAMP

1шт.

7

R21610

TOOL

WRENCH - track bolt

1шт.

8

B17072

START SPRAY FLUID

ETHER CAN - cold starting aid

1шт.

9

73200

1шт.

KIT - tool, crawler service (Includes 1 - 6" slip joint plier, 1 - 5/16" x 4" screwdriver, 1 - 5/16" x 6" screwdriver, 1 - 1-1/2 ball peen hammer, 1 - set of 7 double open end wrenches (3/8" to 1-1/8"), 1 - 12" adjustable wrench, 1 - taper punch, 1 - 1/2" cut chisel, 1 - 18" jimmy bar, 1 - set of 5 allen style wrenches (3/8" to 1"), 1 - socket drive adapter (3/8" female x 1/2" male), 1 - 8-1/4" T-flex. handle (3/8" drive), 1 - 17" sliding T-handle (3/4" drive), 1 - set of 12 point 3/4" drive sockets (1-1/16

1шт.

10

R4192

KIT - decal, (Loader Tractors) Use D11874

1шт.

D11874

DECAL

KIT - decal, loader models

1шт.

D12114

KIT - decal, dozer and drawbar models

1шт.

11

321-909

PLATE - "Master Maintenance Schedule"

1шт.

12

R15813

GAUGE - wear, track components (Use before tractor serial no. 7071626 models with links and plates having 17/32" holes)

1шт.

D44716

SPARE PART

GAUGE - wear, track components (Use on tractor serial no. 7071626 and after or models with links and plates having 39/64" holes)

1шт.

D12631

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)

1шт.

13

D30102

WRENCH - spanner, for 2-1/2" ID cylinders with 1-1/4" or 1-1/2" piston rods

1шт.

D30103

WRENCH - spanner, for 3" ID cylinders with 1-1/2" piston rod

1шт.

D30104

WRENCH - spanner, for 3" ID cylinders with 1-3/4" piston rod

1шт.

D30105

WRENCH - spanner, for 3-1/2" ID cylinders with 1-3/4" or 2" piston rods

1шт.

D30106

WRENCH - spanner, for 4" ID cylinders with 2" piston rod

1шт.

14

D30107

PIN

- spanner wrench

2шт.

Выбрано товаров: 31
