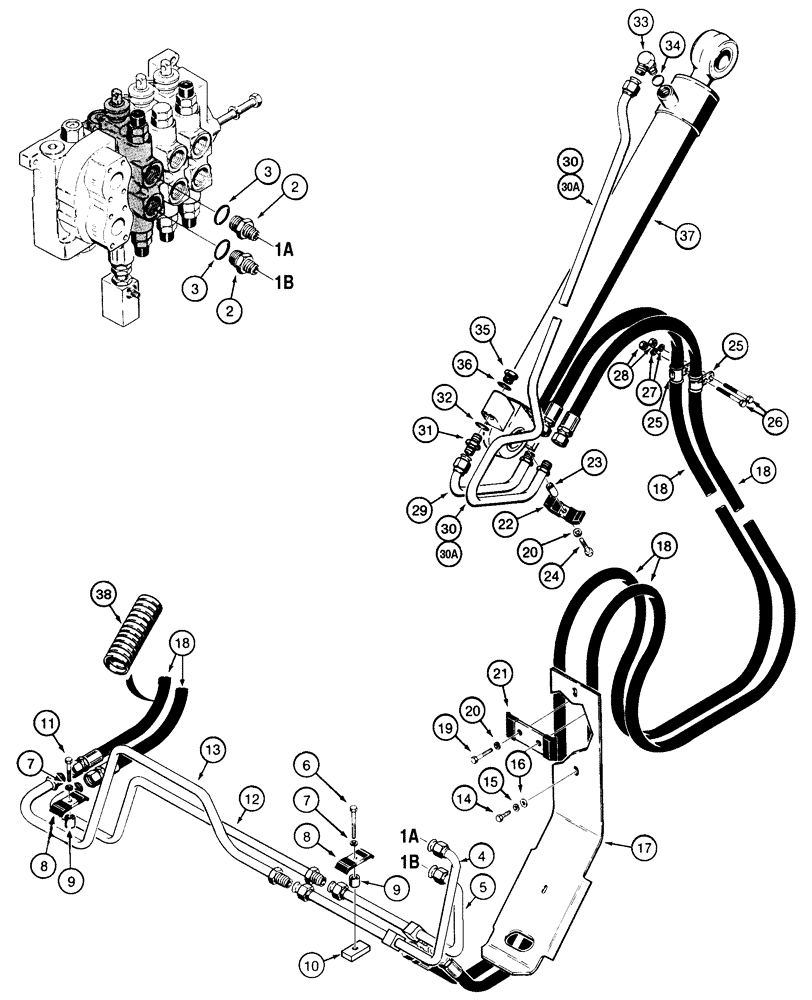

Запчасти Case 855E (8-016) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components, see pages 8-79 - 8-87

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

R34912

TUBE,1" OD

- at valve, port 1A, upper

1шт.

5

R35884

TUBE,1" OD

- at valve, port 1B, lower

1шт.

6

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

R25782

CLAMP

- tube support

2шт.

9

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

2шт.

10

A19305

SPACER

- tube clamp

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

12

R34920

TUBE,0.75" OD

- lower

1шт.

13

R34918

TUBE,0.75" OD

- upper

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

15

492-11038

LOCK WASHER,3/8"

6шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

17

R33364

GUARD

- bucket hoses, cannot be used on models with a cab

2шт.

18

R34917

HOSE

- 116 inch long

4шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

20

492-11038

LOCK WASHER,3/8"

6шт.

21

R35059

CLAMP

- hoses, inside loader frame upright

2шт.

22

R25782

CLAMP

- tubes, at cylinder

2шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamps

2шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

25

R46550

CLAMP

- hoses to lift frame

4шт.

26

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

R34475

TUBE,0.75" OD

- to cylinder, closed end

2шт.

30

R38867

TUBE,0.75" OD

- to left-hand cylinder, rod end

1шт.

30a

R52533

TUBE,0.75" OD

- to right-hand cylinder, rod end

1шт.

31

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

2шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

33

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

2шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

G101210

CYLINDER

ASSEMBLY - bucket, parts list figure 8-48

2шт.

38

S119802

CONDUIT - 11 inch (279 mm) long, on left-hand dump hose, cut from S113778 conduit, see below

2шт.

S113778

CONDUIT - 60 inch (1524 mm) long

1шт.
