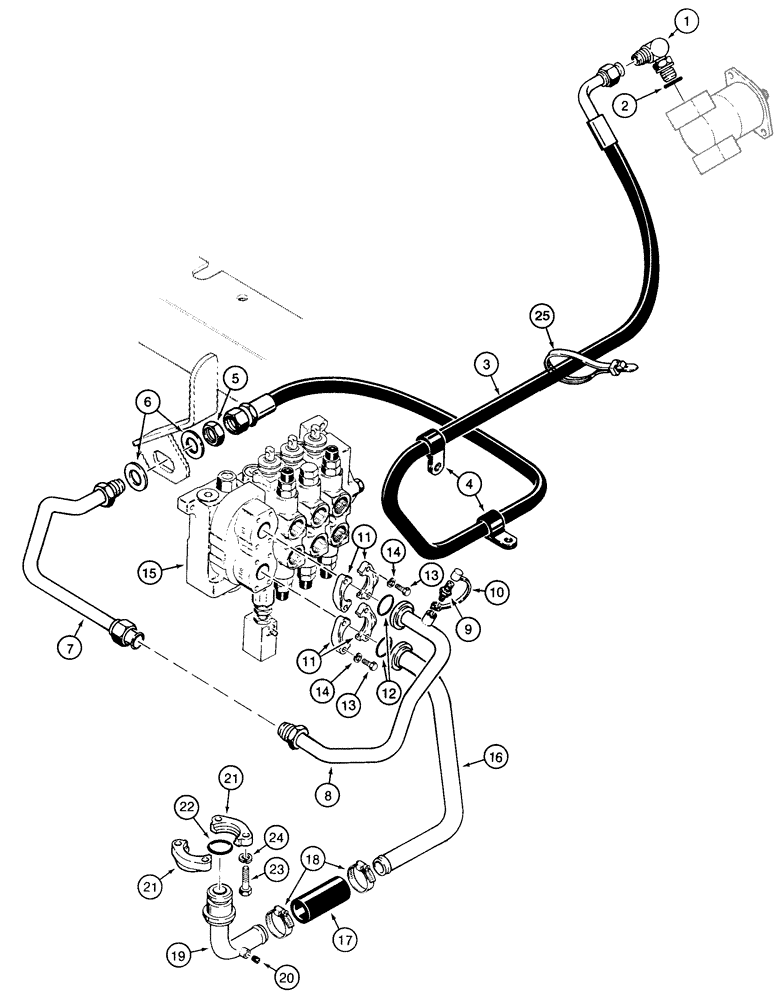

Запчасти Case 855E (8-010) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE AND RESERVOIR *LOADER MODELS (08) - HYDRAULICS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

R58185

HOSE ASSY.

HOSE - 2170 mm long, Serial Range: pump-tube

1шт.

4

D40471

CLAMP

- P-type, hose, use existing hardware, items 13 and 25-27 on figure 8-6

2шт.

5

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

1шт.

6

95-81142

WASHER,1 3/8" x 2" x .065"

- flat, 1-3/8 x 2 x 1/16 inch

2шт.

7

R58814

TUBE ASSY.

TUBE - to control valve inlet port, from hose

1шт.

8

R51936

TUBE,1" OD

- at control valve inlet port

1шт.

9

R55912

NIPPLE

COUPLER - quick disconnect, diagnostic check

1шт.

10

H434163

DUST CAP

CAP - dust, coupler

1шт.

11

A12301

CLAMP,Half

CLAMP - split flange, tube

4шт.

12

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Control valve inlet and outlet tube -222, 90 Duro, 1.484" ID x .139" Thk

2шт.

13

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

- hex, 7/16 NC x 1-1/2 inch

8шт.

14

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components, see pages 8-77 - 8-87

1шт.

16

R35206

TUBE,1.25" OD

- control valve outlet port to hydraulic reservoir

1шт.

17

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

-from reservoir, cut from S118465X bulk hose, see below 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

18

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable (27 mm/51 mm) #24, 1.06/2.00 Type F Worm

2шт.

19

R33400

TUBE,1.25" OD x 4.2, 3.64" L

- to hydraulic reservoir

1шт.

20

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

1шт.

21

R27612

CLAMP

- split flange

2шт.

22

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

-325, 70 Duro, 1.475" ID x .210" Thk, Tube, at hydraulic reservoir

1шт.

23

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, if used

4шт.

S118465X

LARGE HOSE

HOSE - bulk, 1-1/4 (32) x 1-3/4 (45) x 180 inch (4572 mm) long

1шт.
