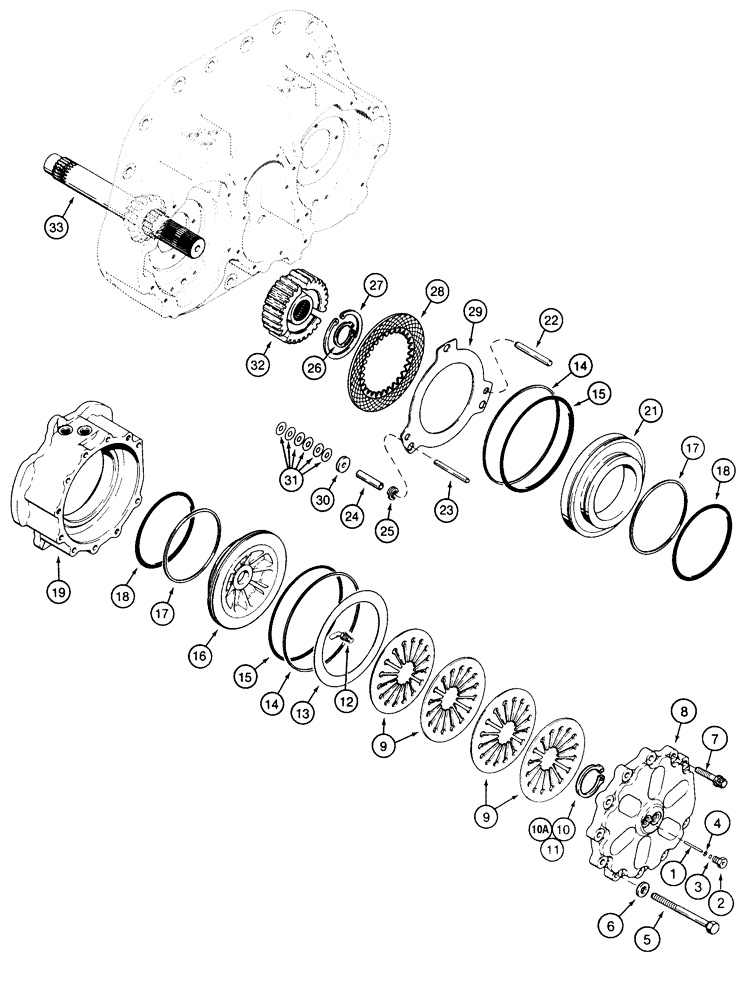

Запчасти Case 855E (7-06) - TRANSMISSION BRAKES (07) - BRAKES

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see figure 6-8 for correct assembly

1шт.

1

1997011C4

PIN

GAUGE - sight, brake wear

2шт.

2

1997050C3

PLUG

- special, sight gauge

2шт.

3

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

2шт.

4

100-2531

SNAP RING,0.312", Int, #31

Ring, Snap, 0.312", Int, #31

2шт.

5

107-9684

LOCK BOLT,Locking, 3/8"-16 x 5 1/4", G8

BOLT, Locking, 3/8"-16 x 5 1/4 inch", G8

16шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

16шт.

7

180-617

12 PT SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

BOLT - 12 point flange, self-locking, 3/8 NC x 1-3/4 inch, grade 8

6шт.

8

1348963C3

COVER

- brake, also order ref 11 snap ring

2шт.

9

1348986C1

SPRING

- parking brake

8шт.

10

800-1148

SNAP RING,M48, Ext

RING - snap, .069 inch (1.75 mm) thick, if used

2шт.

10a

800-5148

SNAP RING,M48, Ext, Hvy

RING - snap, .098 inch (2.50 mm) thick, if used

2шт.

11

100-16193

SNAP RING,#193, Ext

Ring, Snap, , if used #193, Ext

2шт.

12

1997029C1

TUBE,9.52 mm OD

- brake

2шт.

13

1348999C1

SPRING WASHER,146.8mm ID x 187mm OD x 1.05mm Thk

- spring, parking brake

2шт.

14

1348992C2

SEAL - brake piston, inner

4шт.

15

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

4шт.

16

1348971C2

PISTON

- parking brake

2шт.

17

1348903C1

SEAL

- brake piston, inner

4шт.

18

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.

19

1997049C1

HOUSING

- brake, right-hand

1шт.

20

1348960C2

HOUSING

- brake, left-hand, not shown

1шт.

21

1348972C2

PISTON

- brake

2шт.

22

37-1852

DOWEL,3/4" x 3 1/4"

PIN - dowel, 1/2 x 3-1/4 inch, hardened

4шт.

23

37-1652

DOWEL,3/8" x 3 1/4"

PIN - dowel, 3/8 x 3-1/4 inch, hardened

6шт.

24

1348983C1

TUBE,9.83 mm ID, 12.7 mm OD, 50 mm Length

- self adjuster

6шт.

25

100-1450

SNAP RING,#50, Ext

Ring, Snap, , Self adjuster #50, Ext

12шт.

26

800-1140

SNAP RING,M40, Ext

Brake hub M40, Ext

2шт.

27

800-2188

SNAP RING,M88, Int

RING - snap, brake hub, internal

2шт.

28

G102354

PLATE

DISC - friction, brake

8шт.

29

1348965C3

LARGE PLATE

PLATE - separator, brake

10шт.

30

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

6шт.

31

1348985C1

SPRING

- piston return

36шт.

32

1348981C1

HUB

- brake

2шт.

33

REF

INSTRUCTION

SHAFT - bevel pinion, see figure 6-8

2шт.
