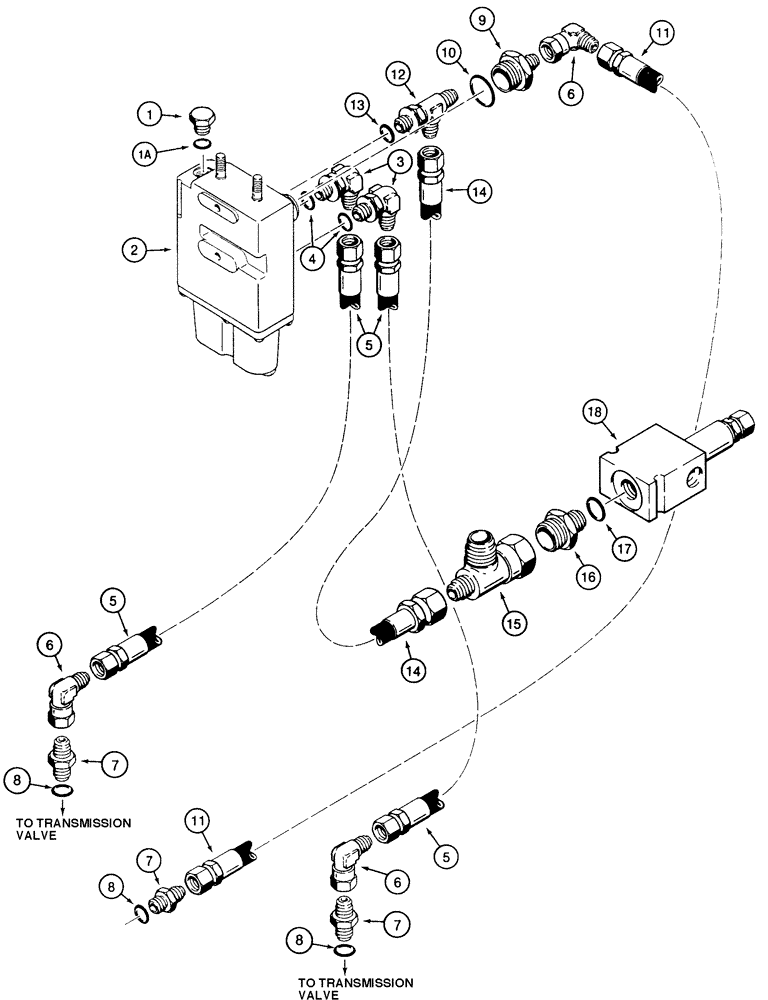

Запчасти Case 855E (7-04) - POWER BRAKE HYDRAULIC LINES, VALVE TO TRANSMISSION (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
76349
PLUG,9/16" - 18 ORB
1шт.
2
1272218C1
VALVE
ASSEMBLY - power brake, parts list figure 7-8, see figure 7-2 for mounting hardware and linkage
1шт.
3
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 90 degree, 9/16-18 inch flare x adj O-ring boss
2шт.
5
R58723
HOSE
- 45-7/8 inch (1163 mm) long, Serial Range: valve-transmission
2шт.
6
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
- 90 degree, 9/16-18 inch flare x swivel
3шт.
7
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ADAPTER - straight, 9/16-18 inch flare x O-ring boss, if used
3шт.
9
218-5044
HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, 9/16-18 flare x 1-1/16-12 inch O-ring boss
1шт.
10
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
11
R58725
HOSE
- 57-1/8 inch (1451 mm) long, Serial Range: valve-transmission
1шт.
12
218-5243
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 9/16-18 inch flare branch x flare x adj O-ring boss
1шт.
14
R58726
HOSE
- 41 inch (1041 mm) long, brake valve to relief valve
1шт.
15
218-5488
TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12
- 1-1/16-12 flare branch x swivel x 3/4-16 inch flare
1шт.
16
218-5353
HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch O-ring boss
1шт.
17
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
18
R57582
VALVE
ASSEMBLY - relief, see figure 6-26 for related parts
1шт.
1a
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
4
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
8
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
13
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
Выбрано товаров: 19
