Запчасти Case 855E (6-40) - TRANSMISSION CLUTCH CUTOUT (06) - POWER TRAIN

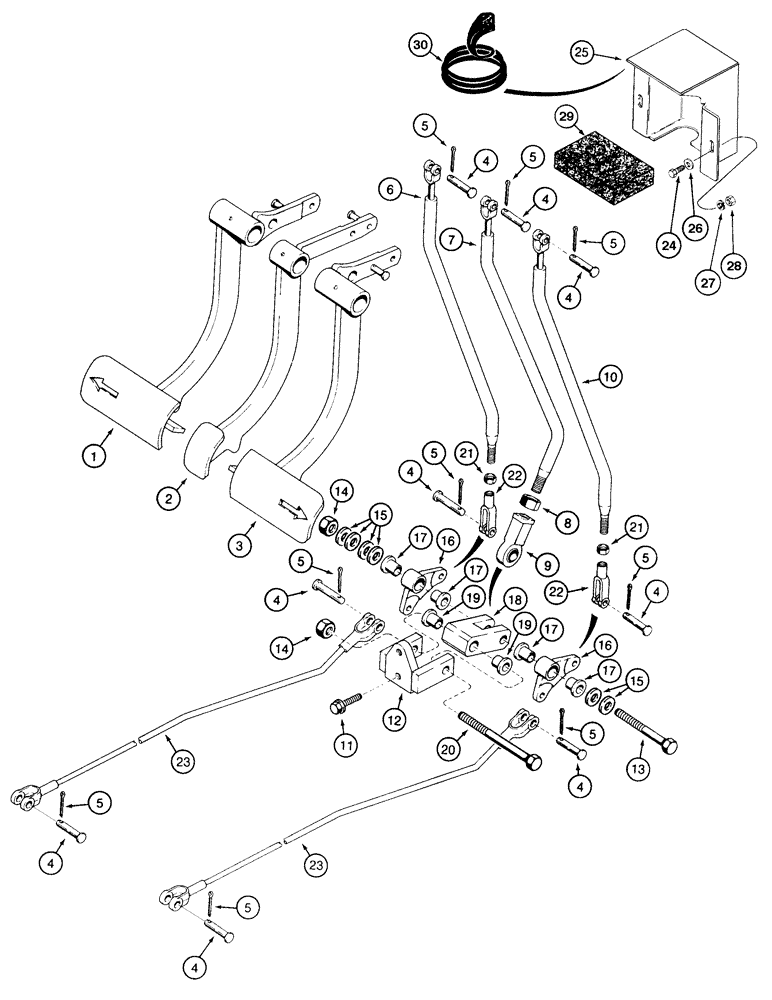

Схема запчастей Case 855E - (6-40) - TRANSMISSION CLUTCH CUTOUT (06) - POWER TRAIN
13
12
5
19
17
4
25
5
4
18
21
4
1
3
22
6
9
29
5
5
23
17
4
8
5
28
5
17
10
15
5
22
5
4
20
15
11
19
4
2
7
5
4
30
16
21
14
26
24
14
4
17
4
16
23
27

Артикул

Название

Примечание

Количество

1

R58358

PEDAL

ASSEMBLY - brake, left-hand, see figure 7-2 for components and related parts

1шт.

2

R58360

PEDAL

ASSEMBLY - brake, center, see figure 7-2 for components and related parts

1шт.

3

R58357

PEDAL

ASSEMBLY - brake, right-hand, see figure 7-2 for components and related parts

1шт.

4

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

9шт.

5

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

9шт.

6

R58681

ROD

- left-hand, Serial Range: pedal-bellcrank

1шт.

R58705

ROD

ASSEMBLY - center pedal to clutch cutout block

1шт.

7

NSS

NOT SOLD SEPARAT

ROD - center pedal to clutch cutout block

1шт.

8

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

9

L115782

BALL JOINT

JOINT - ball, female, center, Serial Range: rod-block

1шт.

10

R58685

ROD

- right-hand, Serial Range: pedal-bellcrank

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

12

R58688

BRACKET

- block mounting

1шт.

13

426-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

- hex, 1/2 NC x 4 inch, grade 8

1шт.

14

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

15

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Hardened 1/2", SAE

6шт.

R58374

CRANK LEVER

BELLCRANK ASSEMBLY - clutch cutout

2шт.

16

NSS

NOT SOLD SEPARAT

BELLCRANK - clutch cutout

1шт.

17

R58311

BRONZE BUSHING

BUSHING - bronze

2шт.

R58375

BLOCK

ASSEMBLY - connection, clutch cutout

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK - connection, clutch cutout

1шт.

19

R58311

BRONZE BUSHING

BUSHING - bronze

2шт.

20

426-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

- hex, 1/2 NC x 5-1/2 inch, grade 8

1шт.

21

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

2шт.

23

R58677

ROD

-, Serial Range: bellcrank-transmission

2шт.

24

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex 1/4 NC x 1 inch, cab models only

2шт.

25

103233A1

COVER

- linkage, cab models only

1шт.

26

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, cab models only

2шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Cab models only 1/4"

2шт.

28

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, cab models only

2шт.

29

103232A1

SEAL

PAD - noise reduction, at cover, cab models only

1шт.

30

D49094

LINING

TRIM - edge, 10-1/2 inch long, cut from F42827 bulk, see below, cab models only

1шт.

F42827

TRIM,2946.4mm L

TRIM - bulk, 116 inch (2946 mm) long, cab models only

1шт.
