Запчасти Case 855E (6-38) - TRANSMISSION RANGE SHIFT CONTROL (06) - POWER TRAIN

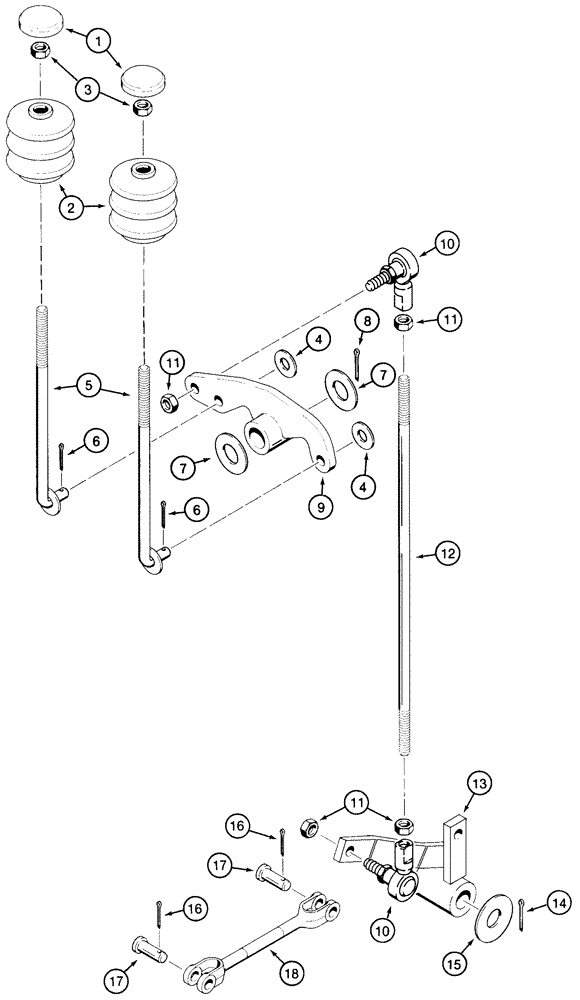

Схема запчастей Case 855E - (6-38) - TRANSMISSION RANGE SHIFT CONTROL (06) - POWER TRAIN
10
6
3
15
11
1
81
8
6
10
9
16
7
4
11
17
13
16
17
7
12
5
11
4
2
14

Артикул

Название

Примечание

Количество

1

R57963

PEDAL

- range shift control

2шт.

2

D141049

BOOT

- pedal

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

R58198

ROD ASSY.

ROD -, Serial Range: pedal-bellcranck

2шт.

6

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

7

895-11020

WASHER,M20 x 37 x 3

- flat, 22 x 37 x 3 mm

2шт.

8

32-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

9

R58012

LEVER

BELLCRANK - range shift control

1шт.

10

R47940

BALL JOINT

JOINT - ball, 3/8 inch NF, control lever

2шт.

11

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

4шт.

12

D68441

ROD

- bellcrank to range shift lever

1шт.

13

R58193

LEVER ASSY.

LEVER - range shift control

1шт.

14

32-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

15

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 1/8 inch

1шт.

16

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

17

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

2шт.

18

D30319

ROD

- range control lever

1шт.

Выбрано товаров: 18
