Запчасти Case 855E (6-34) - TRANSMISSION CONTROLS (06) - POWER TRAIN

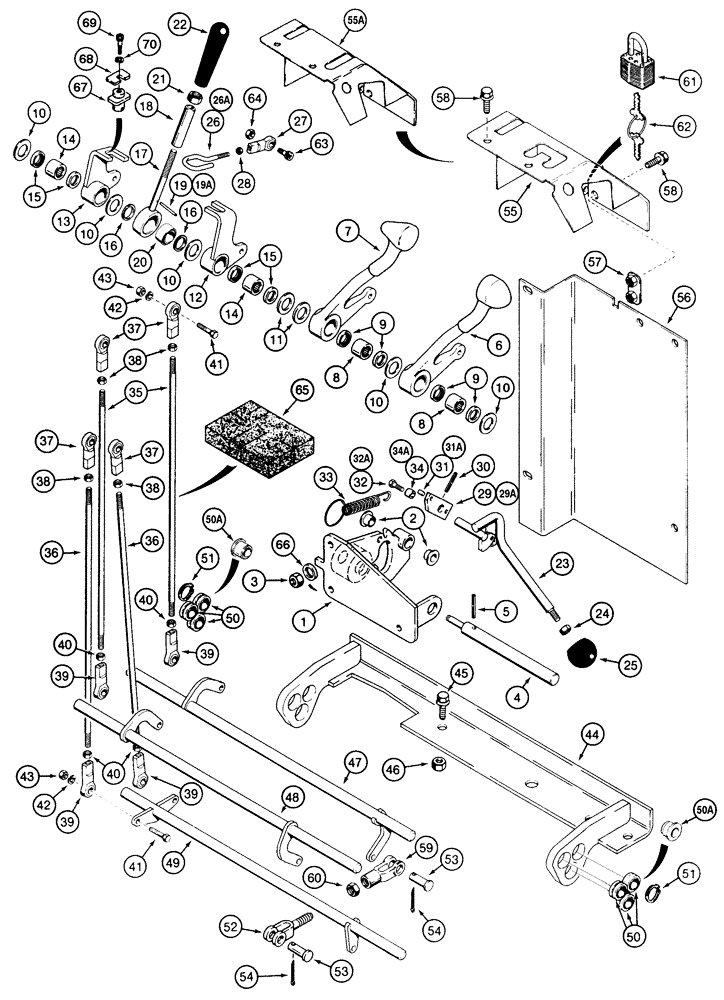

Схема запчастей Case 855E - (6-34) - TRANSMISSION CONTROLS (06) - POWER TRAIN
5
54
10
40
16
69
39
32a
14
58
46
51
9
35
54
27
39
29a
53
10
37
8
18
15
48
10
29
41
44
66
51
30
22
42
4
67
1
36
37
45
68
63
6
23
59
13
24
9
52
10
37
26a
53
10
2
39
40
28
43
55
3
26
38
31a
16
19
70
65
19a
47
40
41
57
15
34a
32
38
56
17
20
49
60
50
42
34
50
12
50a
11
39
21
31
7
25
43
58
64
36
8
50a
14
33
38
55a

Артикул

Название

Примечание

Количество

1

106584A1

BRACKET

- mounting, throttle and transmission control, see figure 3-2 for throttle control components

1шт.

2

R58311

BRONZE BUSHING

BUSHING - bronze, at neutral start lever

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

4

R57937

SHAFT

- pivot, throttle and transmission control levers

1шт.

5

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, 1/4" x 2", Slotted

1шт.

6

R58134

LEVER

ASSEMBLY - right-hand track speed, includes items 8 and 9

1шт.

7

R58135

LEVER

ASSEMBLY - left-hand track speed, includes items 8 and 9

1шт.

8

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

BEARING - roller

1шт.

9

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, lever bearing

2шт.

10

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

- wear

6шт.

11

R58209

SPACER

- nylon

2шт.

12

106582A1

LEVER

BELLCRANK ASSEMBLY - forward control

1шт.

13

106583A1

LEVER

BELLCRANK ASSEMBLY - reverse control

1шт.

14

377133R91

ROLLER BEARING,Needle, 19.04mm ID x 25.41mm OD x 19.05mm W

BEARING - roller

1шт.

15

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil, lever bearing

2шт.

16

R57931

SPACER

- forward-neutral-reverse control lever to forward and reverse bellcrancks

2шт.

R58305

LEVER

ASSEMBLY - control, forward-neutral-reverse

1шт.

17

NSS

NOT SOLD SEPARAT

LEVER - control, forward-neutral-reverse

1шт.

18

R58303

ROLLER

SPACER - control lever

1шт.

19

38-1822

PIN,1/8" OD x 1-3/8" L, Slotted

Pin, 1/8" x 1 3/8", Slotted

1шт.

19a

38-1814

LOCK PIN,1/8" x 7/8", Slotted

Pin, 1/8" x 7/8", Slotted

1шт.

20

R58306

SPHERICAL BEARING,19.05mm ID x 31.75mm OD x 16.66mm W

BEARING - self-aligning, control lever

1шт.

21

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch N

1шт.

22

R58314

KNOB

HANDLE - control lever

1шт.

23

R57938

LEVER

- control, neutral start, parking brake

1шт.

24

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NF

1шт.

25

70213

KNOB

- control lever

1шт.

26

R58266

LINK

- neutral start lever

1шт.

26a

R58821

LINK

- neutral start lever, if used

1шт.

27

A146456

BALL

JOINT - ball, adjustable, at link

1шт.

28

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

29

108505A1

ARM

- spring mounting, at neutral start lever (for 5/16 inch bolt)

1шт.

29a

101851A1

ARM

- spring mounting, at neutral start lever (for 1/4 inch bolt)

1шт.

30

435-1416

GROOVED PIN,1/8" x 1", Type A

PIN - roll, 1/8 x 1 inch

1шт.

31

38-31208

PIN,3/16" x 1/2", Coiled

(for 101851A1 arm, item 29A) 3/16" x 1/2", Coiled

1шт.

31a

38-11210

LOCK PIN,3/16" x 5/8", Slotted

(For 108505A1 arm, item 29) 3/16" x 5/8", Slotted

1шт.

32

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch (for 101851A1 arm, item 29A)

1шт.

32a

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch (for 108505A1 arm, item 29)

1шт.

33

101993A1

SPRING

- return, neutral start lever

1шт.

34

L126822

SPACER

- spring mounting, if used

1шт.

34a

495-81020

WASHER,17/32" x 1" x .030"

- 17/32 x 1 x 1/32 inch, spring mounting, if used

1шт.

35

220962A1

ROD

- connecting, track speed levers to lower cross shafts

2шт.

36

220960A1

ROD

- connecting, forward and reverse bellcranks to lower cross shafts

2шт.

37

R47498

END

- rod , at control levers, right-hand thread

4шт.

38

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF, RH thread

4шт.

39

R58783

END

- rod, at lower cross shaft, left-hand thread

4шт.

40

129-216

JAM NUT,Jam, 5/16"-18, G5, LH

thread Jam, 5/16"-18, G5, LH

4шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

8шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

43

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

44

106710A1

BRACKET

- mounting, lower control cross shaft

1шт.

45

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

46

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

47

R57883

SHAFT

- cross, lower control, right-hand track speed

1шт.

48

R57884

SHAFT

- cross, lower control, left-hand track speed

1шт.

49

106639A1

SHAFT

- cross, lower control, forward-neutral-reverse

1шт.

50

R58197

BUSHING

BEARING - self-aligning, steel, cross shafts, no longer used, service with 130756A1

6шт.

50a

130756A1

BUSHING

BEARING - self-aligning, plastic, cross shafts

6шт.

51

100-1462

SNAP RING,#62, Ext

Ring, Snap, , Brg #62, Ext

6шт.

52

D34885

YOKE

LINK - connecting, cross, Serial Range: shaft-valve

3шт.

53

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

6шт.

54

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

55

106610A1

COVER

- console, top

1шт.

55a

R58816

COVER

- console, top, if used

1шт.

56

R58184

LARGE PLATE

COVER - console, front

1шт.

57

R58683

PLATE

BRACKET - support, top console cover

1шт.

58

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex serrated flange, 3/8 NC x 3/4 inch

8шт.

59

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF

3шт.

60

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF, RH thread

3шт.

61

D93753

PADLOCK

- includes keys,neutral start lever to console cover, if used

1шт.

62

R29555

KEY

- for Master padlock only

2шт.

62

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

63

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

BOLT - hex socket, 1/4 NC x 3/4 inch

1шт.

64

425-144

JAM NUT,Jam, 1/4"-20, G5

- heavy hex, self-locking, 1/4 inch NC

1шт.

65

103584A1

PAD

- noise reduction, control levers, cab models only

1шт.

66

R58742

WASHER

- belleville, if used

3шт.

67

R58819

SHAFT

- lever mounting, if used

1шт.

68

R58820

LARGE PLATE

PLATE - shaft mounting, if used

1шт.

69

461-7258

HEX SOC SCREW,Btn Hd, 1/4"-20 x 1/2"

SCREW - hex button head, 1/4 NC x 1/2, if used

1шт.

70

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.
