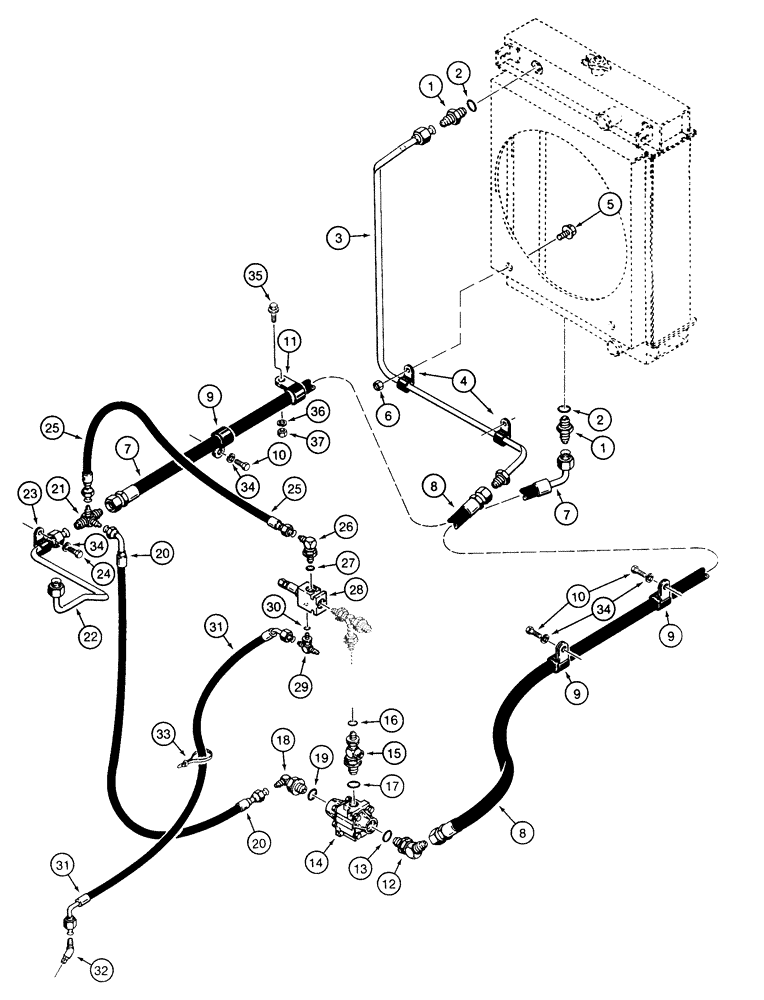

Запчасти Case 855E (6-30) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM (06) - POWER TRAIN

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

2шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

R57812

TUBE,0.75" OD

- to upper port of radiator

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Tube 3/4", Insul, 3/8" Bolt

2шт.

5

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

R56466

HOSE ASSY.

HOSE - 1481 mm long, from lower port of radiator

1шт.

8

R57341

HOSE

- 1200 mm long, from by pass valve to radiator tube

1шт.

9

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type, Hose 1 1/8", Insul, 3/8" Bolt

3шт.

10

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

3шт.

11

D34033

CLAMP

- hose, P-type, 1-3/16 inch ID

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

14

R51141

THERMOSTAT

VALVE ASSEMBLY - bypass, parts list Figure 6-32

1шт.

15

R57336

TEE,1-1/16" - 12 ORB x 3/4" - 16 ORB x 1/2" NPT

- special, at torque converter and bypass valve

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

R57486

HOSE

- 27-9/16 inch (700 mm) long, bypass, Serial Range: valve-tee

1шт.

21

R57479

FITTING

MANIFOLD - 4-way, special

1шт.

22

R58444

TUBE,19.05 mm OD x 380, 115 mm L

- bypass valve to transmission

1шт.

23

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Tube 3/4", Insul, 3/8" Bolt

1шт.

24

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

25

R57487

HOSE

- 535 mm long, tee to pressure sensing valve

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

R57597

VALVE

- pressure sensing, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

29

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare

1шт.

31

R34863

HOSE

- 35 inch (889 mm) long, pressure sensing, Serial Range: valve-transmission

1шт.

32

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

34

492-11038

LOCK WASHER,3/8"

4шт.

35

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

36

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
