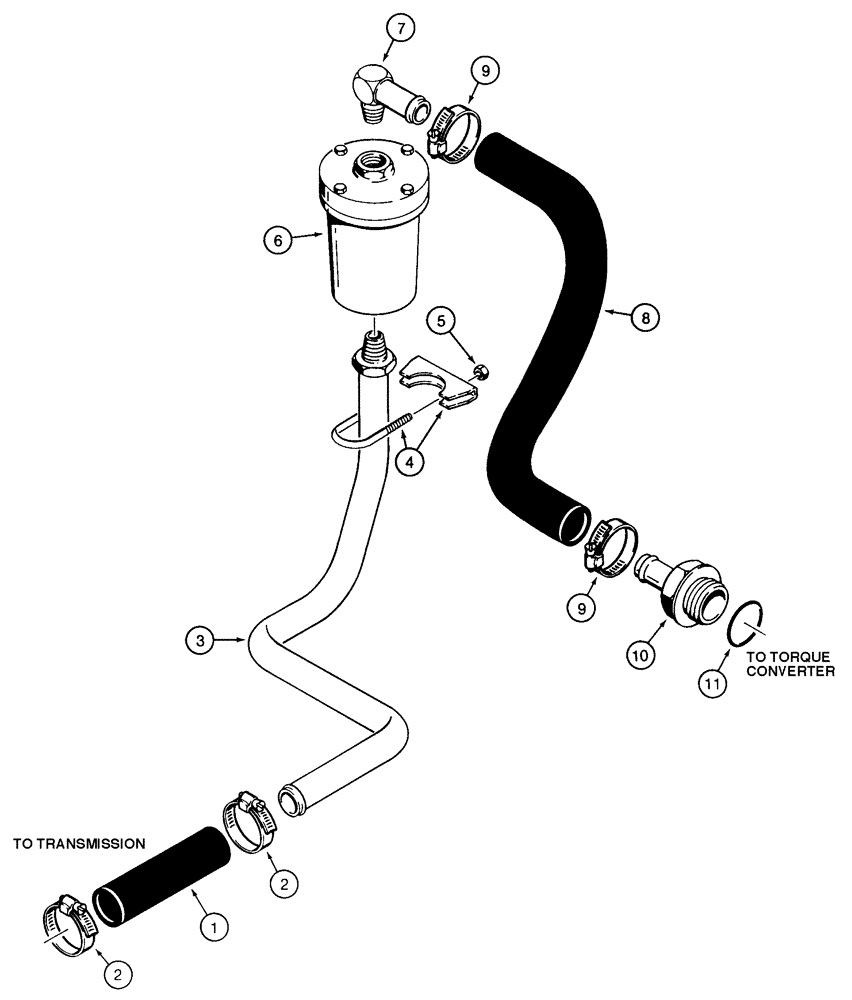

Запчасти Case 855E (6-28) - CRAWLER HYDRAULIC CIRCUIT, TRANSMISSION SUCTION LINE (06) - POWER TRAIN

1

R46690

HOSE - 1-1/4 x 1-3/4 x 6 inch long, cut from D33365 bulk hose, see below

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

CLAMP - adj, 1-1/4 - 2-1/8 inch dia

2шт.

3

R58697

TUBE,31.75 mm OD

- suction, transmission to suction filter

1шт.

4

L45901

CLAMP

-, Serial Range: tube-frame

1шт.

5

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

6

D35144

FILTER

FILTER ASSEMBLY - transmission oil, suction line, parts list figure 6-38

1шт.

7

R57811

FITTING

ELBOW - 90 degree, 1 inch stem end x PT

1шт.

8

R58743

HOSE,25.40 mm ID x 510.00 mm, SAE 100R3

Sucton Filter to Torque Converter 25.40 mm ID x 510.00 mm, SAE 100R3

1шт.

9

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - adj, 1 - 1-7/8 inch dia

2шт.

10

R57462

ADAPTER

- special, at torque converter

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

S118465X

LARGE HOSE

HOSE - 1-1/4 inch (32 mm) ID x 1-3/4 inch (44 mm) OD x 180 inch long, bulk

1шт.
