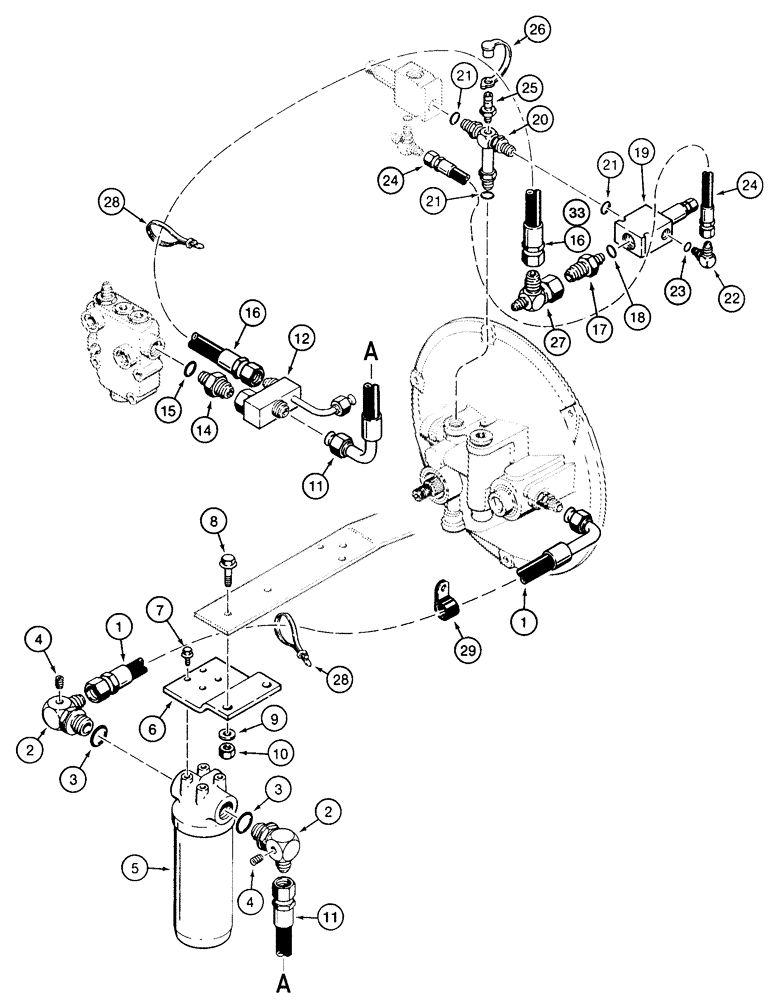

Запчасти Case 855E (6-26) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (06) - POWER TRAIN

1

R56466

HOSE ASSY.

HOSE - 1481 mm long, torque, Serial Range: converter-filter

1шт.

2

R49557

FITTING

ELBOW - 90 degree, with check port, special

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

4

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT

2шт.

5

R48993

FILTER

ASSEMBLY - transmission oil, parts list figure 6-34

1шт.

6

R49362

SUPPORT

BRACKET - filter mounting

1шт.

7

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

8

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

R50075

HOSE

- 13 inch long, filter to modulator valve on transmission

1шт.

12

1997073C1

BLOCK ASSY.

MANIFOLD - special, hydraulic distribution

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

H224147

HYDRAULIC HOSE,19.05 mm ID x 1320.80 mm, SAE 100R1

Modulator Valve to Relief Valve 19.05 mm ID x 1320.80 mm, SAE 100R1

1шт.

17

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 1-1/16-12 flare x 3/4-16 inch O-ring boss

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

R57582

VALVE

ASSEMBLY - relief, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

20

R57585

FITTING

TEE - special, at torque converter, see page 6-36 for pressure sensing valve

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

24

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

ASSY, , Relief Valve to Pressure Sensing Valve 0.38" ID x 18.75", SAE 100R1

1шт.

25

H434164

COUPLING

COUPLER - quick disconnect, diagnostic check

1шт.

26

H434163

DUST CAP

CAP - dust, coupler

1шт.

27

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

- 1-1/16-12 flare branch x swivel x 3/4-16 inch flare

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type, Hose 1 1/8", Insul, 3/8" Bolt

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
