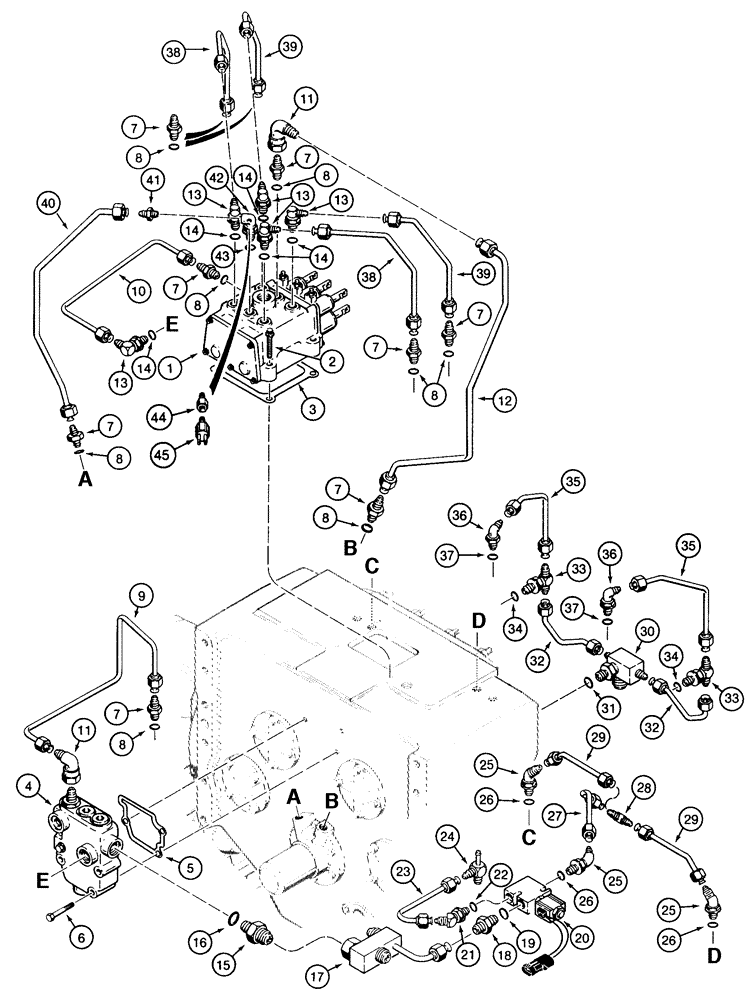

Запчасти Case 855E (6-20) - TRANSMISSION HYDRAULIC LINES, (WITHOUT MODULATOR IN TRANSMISSION CONTROL VALVE 1542619C1 (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see figure 6-8 for correct assembly

1шт.

1

1542619C1

VALVE

ASSEMBLY - transmission control, parts list figure 6-22

1шт.

2

180-607

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

BOLT - 12 point flange, self-locking, 3/8 NC x 2 inch, grade 8

4шт.

3

1986527C1

GASKET

-, Serial Range: valve-housing

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

4

1346352C2

VALVE

ASSEMBLY - modulator, parts list figure 6-24

1шт.

5

G105635

GASKET

GASKET - modulator valve

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

6

107-9640

LOCK BOLT,Locking, 3/8"-16 x 2 1/2", G8

BOLT - hex, chemical locking, 3/8 NC x 2-1/2 inch, grade 8

3шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

9шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1997010C2

TUBE

- forward/reverse track, control valve to modulator valve

1шт.

10

G108278

HYD TUBE,0.5" OD

TUBE - high/low track, control valve to modulator valve

1шт.

11

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

12

1997056C1

TUBE

- forward

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

5шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

1997073C1

BLOCK ASSY.

MANIFOLD - special, hydraulic distribution

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

20

1997074C1

VALVE

SOLENOID - 3-way (Replaces 1997072C1)should be 24 volt not (12volt)

1шт.

21

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

23

1997077C1

TUBE

- brake dump

1шт.

24

1997075C1

FITTING

TEE - special, brake dump

1шт.

25

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss

3шт.

27

1997043C3

TUBE

- parking brake, at soleniod

1шт.

28

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

29

1997023C2

TUBE,9.52 mm OD

- parking brake, tee to brake housing

2шт.

30

1997012C1

TEE

FITTING - special, front of transmission

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

32

1997107C1

TUBE,9.52 mm OD

- special fitting to tee at brake housing

2шт.

33

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare

2шт.

35

1997029C1

TUBE,9.52 mm OD

- track lube

2шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

38

1997025C2

TUBE,12.7 mm OD

- low track

2шт.

39

1997021C2

TUBE,12.7 mm OD

- high track

2шт.

40

G108276

TUBE,0.5" OD

- reverse

1шт.

41

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

42

G107178

ELBOW

- 90 degree, special, tapped for backup alarm switch plumbing

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

R52651

FITTING

SNUBBER - pressure switch

1шт.

45

D139904

SWITCH

- pressure, backup alarm, see figure 4-24

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 3 and 5 and parts in Figures 6-06 through 6-18 and B17501 sealant

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
