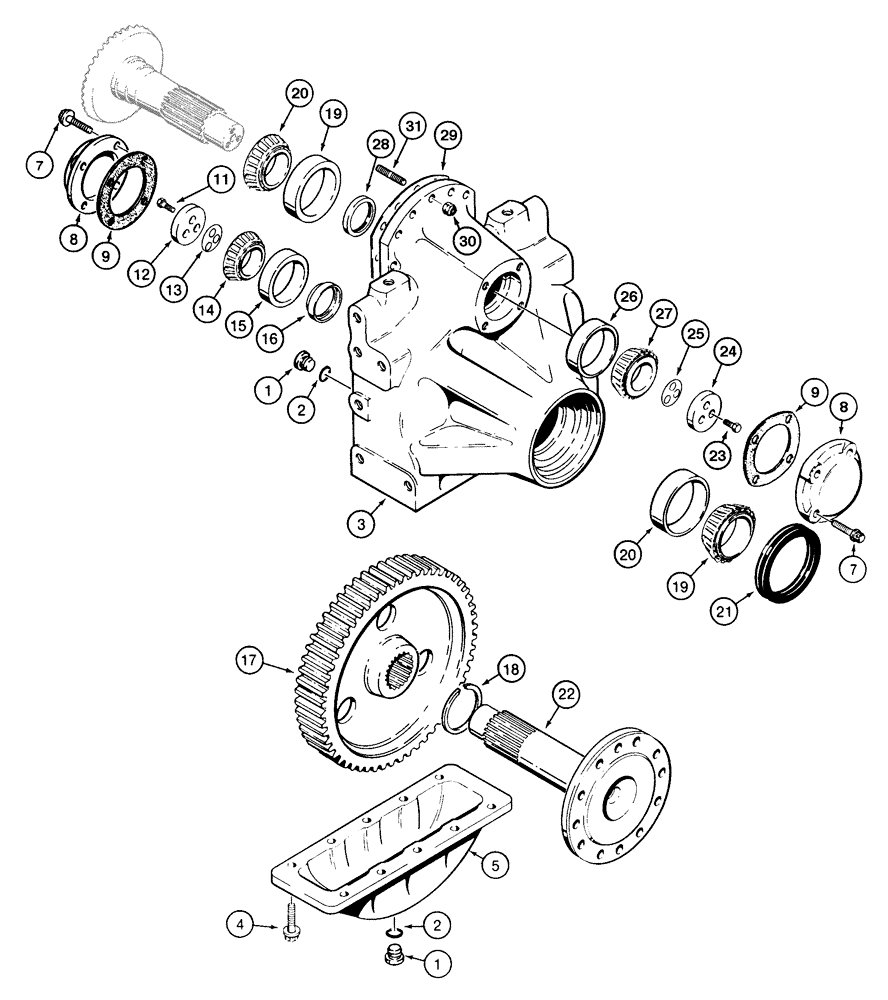

Запчасти Case 855E (6-16) - TRANSMISSION FINAL DRIVE, ALL MODELS EXCEPT 70 INCH (1778 MM)GAUGE DOZER LGP MODELS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see figure 6-8 for correct assembly

1шт.

G107164

TRANSMISSION

DRIVE ASSEMBLY - final, all models except 70 inch (1778 mm) gauge LGP dozer models

2шт.

1

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

G101600

HOUSING

- final drive assembly

1шт.

4

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

BOLT - 12 point flange, self-locking, 1/2 NC x 1-1/2inch, grade 8

10шт.

5

1348875C1

COVER

PAN - bottom, to housing, see sealant below

1шт.

7

180-609

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - 12 point flange, self-locking, 1/2 NC x 1 inch, grade 8

8шт.

8

G105822

COVER ASSY

COVER - shaft

2шт.

9

G101598

GASKET

- cover

2шт.

11

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

BOLT, d Locking, 9/16"-18 x 1 1/4", G8, Full Th

3шт.

12

1997099C1

PLATE

- bearing retaining, final drive shaft

1шт.

13

R21741

SHIM,.005" Thk

(0.127 mm), Plate .005" Thk

1шт.

13

R21742

SHIM,.007" Thk

(0.178 mm), Plate .007" Thk

1шт.

13

R21743

SHIM,.020" Thk

(0.508 mm), Plate .020" Thk

1шт.

14

630203C91

TAPERED BEARING

- tapered roller, final drive shaft, inner

1шт.

15

L35931

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

16

G100325

SPACER

- final drive shaft

1шт.

17

A50134

GEAR

- final drive

1шт.

18

101-11325

SNAP RING,#325, 3.070, Ext

RING - retaining, gear

1шт.

19

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing

2шт.

20

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

BEARING - tapered roller, final drive, outer

2шт.

21

1981095C1

SEAL

- oil, face, final drive shaft

1шт.

22

G106477

SHAFT

- final drive

1шт.

23

107-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G8, Full Thd

BOLT - hex, chemical locking, 1/2 NC x 1-1/4 inch, grade 8

3шт.

24

1997100C1

PLATE

- bearing retaining, bevel gear

1шт.

25

G100328

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

25

G100329

SHIM,.007" Thk

(0.178 mm), Plate .007" Thk

1шт.

25

G100330

SHIM,.020" Thk

(0.508 mm), Plate .020" Thk

1шт.

26

895366C1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

27

1997114C1

TAPERED BEARING,55.001 mm ID x 39 mm

BEARING - tapered roller, bevel gear, outer

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil, housing, bevel gear

1шт.

29

A50199

SHIM,.003" Thk

(0.076 mm), Housing .003" Thk

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

29

A50198

SHIM,.005" Thk

(0.127 mm), Housing .005" Thk

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

29

1997091C1

SHIM

- housing, 0.020 inch (0.508 mm) thick

1шт.

30

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

14шт.

31

G100303

STUD

- 1/2 NC x 2-5/16 inch, final drive mounting

28шт.

B17555

LOCTITE

SEALANT - Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT - Gasket Eliminator No. 515, 300 ml tube

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 29-P/N A50199 and Ref. 29- P/N A50198 and parts in Figures 6-06 through 6-14, 6-18 and 6-20 and B17501 sealant

1шт.

138973A1

SEAL KIT

KIT - seal, final drive, includes B17501 sealant

1шт.
