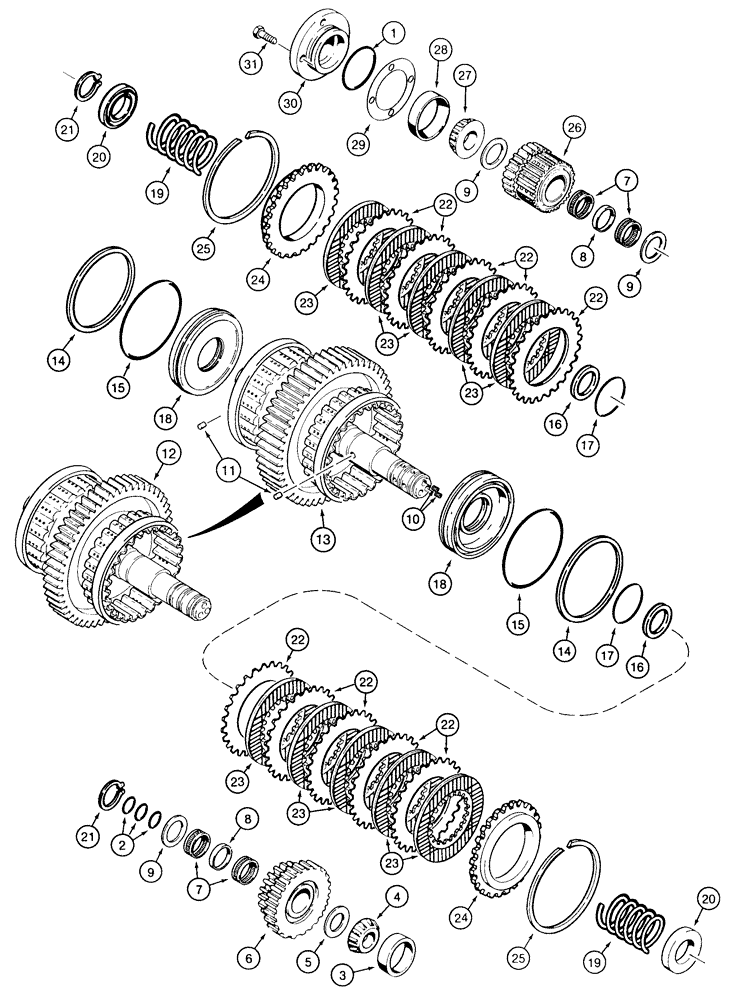

Запчасти Case 855E (6-14) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see figure 6-8 for correct assembly

1шт.

1

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

2шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

2

A175509

SEALING RING,32.81mm ID x 36.13mm OD x 2.38mm Thk

RING - seal, shaft

6шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

3

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP - tapered roller bearing

2шт.

4

3131513R91

ROLLER BEARING

- tapered roller

2шт.

5

A175396

WASHER, THRUST,36.6mm ID x 60mm OD x 2.3mm Thk

WASHER - thrust

2шт.

6

1997063C1

GEAR

- drive, high, 29/40 teeth

2шт.

7

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

BEARING -roller, needle

8шт.

8

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

- inner, needle bearing

4шт.

9

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

WASHER - thrust

6шт.

1997047C2

CLUTCH HOUSING

CLUTCH ASSEMBLY - high/low, left-hand, with shaft and gear, 51 (17 mm wide) teeth

1шт.

1997046C2

CLUTCH HOUSING

CLUTCH ASSEMBLY - high/low, right-hand, with shaft and gear, 51 (42 mm wide) teeth

1шт.

10

83-3446

SET SCREW,Hex Soc, 7/16"-14 x 3/8"

SCREW - set, hex socket headless, 7/16 NC x 3/8 inch, flat point, use Loctite

2шт.

11

38-3605

PIN,3/32" x 5/16", Coiled

2шт.

12

1348993C2

SHAFT

- high/low clutch, left-hand, with gear and clutch housings, 51 (17 mm wide) teeth

1шт.

13

1348991C2

SHAFT

- high/low clutch, right-hand, with gear and clutch housings, 51 (42 mm wide) teeth

1шт.

14

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

- piston, external

2шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

15

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Piston, external -156, 70 Duro, 4.237" ID x .103" Thk

2шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

16

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL - piston, internal

2шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

Piston, internal -137, 90 Duro, 2.05" ID x .103" Thk

2шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

18

A159292

PISTON

- clutch

2шт.

19

A188080

SPRING

-piston, return

2шт.

20

A188044

RETAINER

- spring

2шт.

21

100-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

22

A175806

PLATE

- clutch, separator

10шт.

23

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE - clutch, friction

10шт.

24

137720A1

PLATE

- clutch, backing

2шт.

25

A158227

CIRCLIP

RING - retaining, internal

2шт.

26

1997064C1

GEAR

- drive, low, 20/40 teeth

2шт.

27

G100313

BEARING CONE,34.92mm ID x 20.64mm W

BEARING - tapered roller, clutch shaft, rear

2шт.

28

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing, rear

2шт.

29

G103645

SHIM,.003" Thk

Cover (0.076 mm) .003" Thk

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

29

G103647

SHIM,.010" Thk

Cover (0.254 mm) .010" Thk

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

29

1348980C1

BLOCK

SHIM - cover, 0.508 mm thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

30

G103644

COVER ASSY

COVER - high/low clutch shaft

2шт.

31

107-9620

LOCK BOLT,Locking, 3/8"-16 x 1 1/4", G8

BOLT, Locking, 3/8-16 x 1 1/4", G8

8шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 1, 2, 14-17 and all 29's and parts on Figures 6-06 through 6-12 and 6-16 through 6-20 and B17501 sealant

1шт.
