Запчасти Case 855E (6-10) - TRANSMISSION RANGE SHIFT (06) - POWER TRAIN

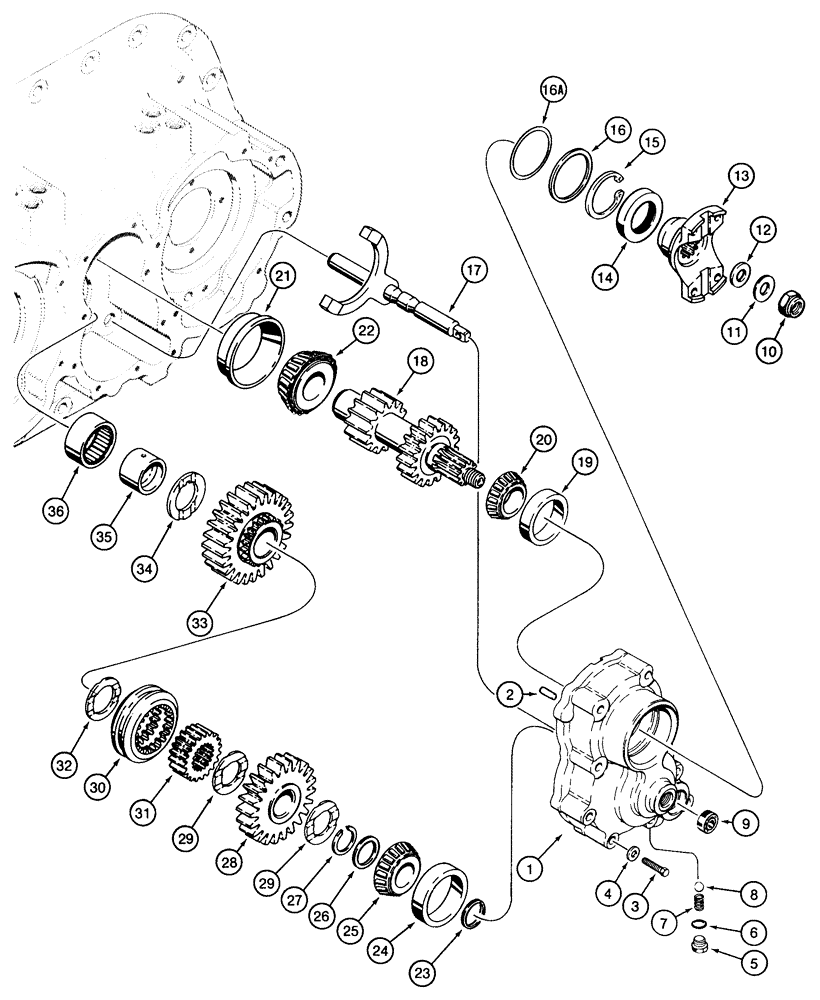

Схема запчастей Case 855E - (6-10) - TRANSMISSION RANGE SHIFT (06) - POWER TRAIN
24
10
7
34
29
18
31
16a
14
19
20
1
32
23
28
11
6
30
16
4
8
12
2
3
25
21
26
13
35
5
17
38
27
33
9
15
29
22

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - see figure 6-8 for correct assembly

1шт.

1

1348962C2

HOUSING ASSY.

HOUSING - range gear, see sealant below

1шт.

2

37-1820

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch, hardened, range gear housing

2шт.

3

107-9648

LOCK BOLT,Locking, 3/8"-16 x 3", G8

BOLT, Locking, 3/8"-16 x 3", G8

9шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

9шт.

5

76349

PLUG,9/16" - 18 ORB

1шт.

7

A50092

SPRING

- detent

1шт.

8

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24

1шт.

9

G105118

OIL SEAL

- oil, selector shaft, at range gear housing

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

10

131-37

LOCK NUT,3/4"-16

NUT - thin hex, self-locking, 3/4 inch NF, input shaft

1шт.

11

32601

WASHER

- flat, special, yoke retaining

1шт.

12

34395

SEALING WASHER

WASHER - flat, special, seal

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

13

1348825C1

STIRRUP

YOKE - input shaft

1шт.

14

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, yoke

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

15

100-21300

SNAP RING,3.00", Int, #300

Ring, Snap, , For 3 inch housing 3.00", Int, #300

1шт.

16

1997006C2

SHIM

SPACER - 3.175 mm thick

1шт.

16a

1997004C1

SHIM

- 0.076 mm thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

16a

1997005C1

SHIM

- 0.178 mm thick

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

17

G107672

SHAFT

- range selector, with welded fork

1шт.

18

1342842C1

SHAFT

- input, with gears

1шт.

19

165964R1

BEARING CUP

CUP - tapered roller bearing, front, input shaft

1шт.

20

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller, front, input shaft

1шт.

21

G106463

BEARING, CUP,89.59mm OD x 23.81mm W

CUP - tapered roller bearing, rear, with flange

1шт.

22

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

BEARING - tapered roller, rear, input shaft

1шт.

23

1981335C1

SEAL

RING - seal, main shaft, front

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

24

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

CUP - tapered roller bearing, front, main shaft

1шт.

25

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

BEARING - tapered roller, front, main shaft

1шт.

26

1997008C1

SPACER

- special

1шт.

27

100-16131

SNAP RING,#131, Ext

Ring, Snap, , Front bearing #131, Ext

1шт.

28

1342843C1

PINION

GEAR - range, front, main shaft

1шт.

29

G107116

WASHER,33.48mm ID x 55.63mm OD x 3.17mm Thk

- thrust, range gear

2шт.

30

A51806

COLLAR

SLEEVE - range selector

1шт.

31

G107110

HUB

COLLAR - range selector

1шт.

32

G107117

WASHER

- thrust, between range selector collar and rear range gear

1шт.

33

G107094

GEAR WHEEL

GEAR - range, rear, main shaft

1шт.

34

G106465

WASHER

- thrust, range gear, rear, main shaft

1шт.

35

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

RACE - inner, needle bearing

1шт.

36

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle, main shaft at front housing cover

1шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 6, 9, 12, 14, both 16A's and 23 and parts on Figures 6-6, 6-08 and 6-12 though 6-20 and B17501 sealant

1шт.

B17555

LOCTITE

SEALANT - Gasket Eliminator No. 515, 50 ml tube

1шт.

B17556

LOCTITE

SEALANT - Gasket Eliminator No. 515, 300 ml tube

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

Выбрано товаров: 49
