Запчасти Case 855E (6-06) - TRANSMISSION DIPSTICK AND FLUID RECOVERY BOTTLE (06) - POWER TRAIN

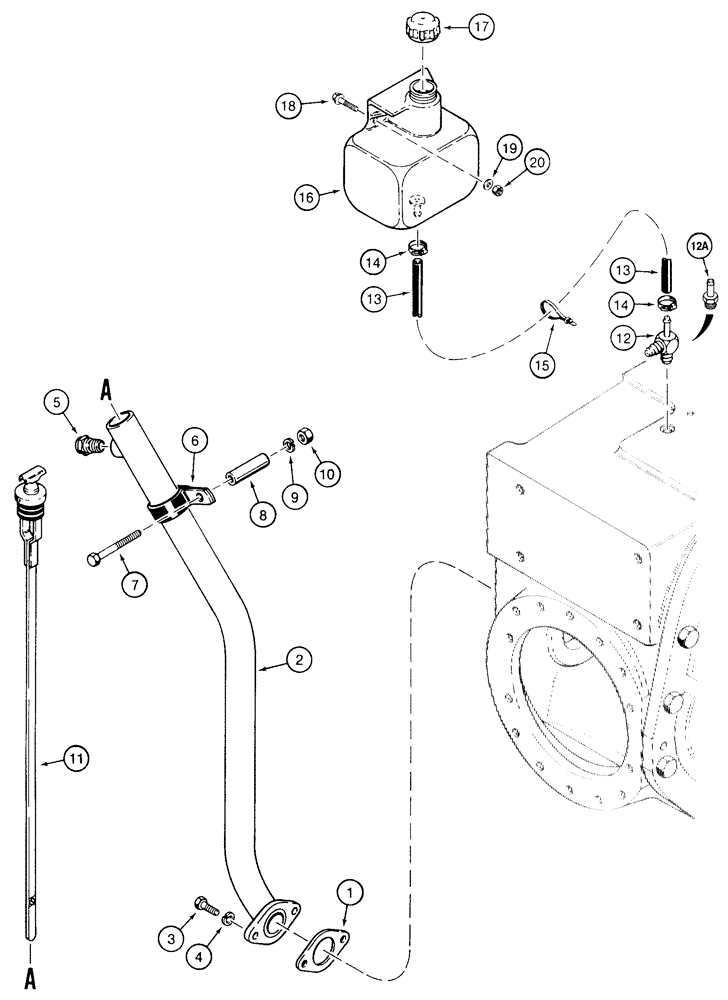

Схема запчастей Case 855E - (6-06) - TRANSMISSION DIPSTICK AND FLUID RECOVERY BOTTLE (06) - POWER TRAIN
8
1
13
9
13
14
16
10
15
2
4
6
18
14
20
11
12a
12
17
5
7
19
3

Артикул

Название

Примечание

Количество

1

R47073

GASKET

- dipstick tube

1шт.

See Figures 9-22 and 9-26 for the hardware to mount the transmission to main frame and seat and tank frame.

1шт.

Part of Transmission Seal Kit P/N 138971A1

1шт.

2

R47760

TUBE,1.5" OD

- dipstick

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

D63543

BREATHER

- dipstick tube

1шт.

6

R50045

CLAMP

- dipstick tube

1шт.

7

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

8

L49541

SPACER

- bolt

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

R47798

DIPSTICK

- transmission

1шт.

12

1997075C1

FITTING

TEE - special, shipped with transmission

1шт.

12a

217-209

FITTING

ADAPTER - straight, 1/4 stem end x 3/8 inch PT

1шт.

13

R55963

HOSE - to recovery bottle, 6 mm ID x 711 mm long, cut from A21561X bulk, see below

1шт.

See Figures 9-22 and 9-26 for the hardware to mount the transmission to main frame and seat and tank frame.

1шт.

14

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - hose, adjustable, 1/4 - 5/8 inch dia

2шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, if used

1шт.

16

R50467

RESERVOIR

BOTTLE - plastic, transmission fluid recovery

1шт.

17

R50468

CAP

CAP - recovery bottle

1шт.

18

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

138971A1

SEAL KIT

KIT - seal, transmission, Includes: Ref. 1, and parts in Figures 6-08 through 6-20 and B17501 sealant

1шт.

See Figures 9-22 and 9-26 for the hardware to mount the transmission to main frame and seat and tank frame.

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

- bulk, 1/4 (6) x 1/2 (13) x 300 inch (7620 mm) long

1шт.

See Figures 9-22 and 9-26 for the hardware to mount the transmission to main frame and seat and tank frame.

1шт.
