Запчасти Case 855E (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (06) - POWER TRAIN

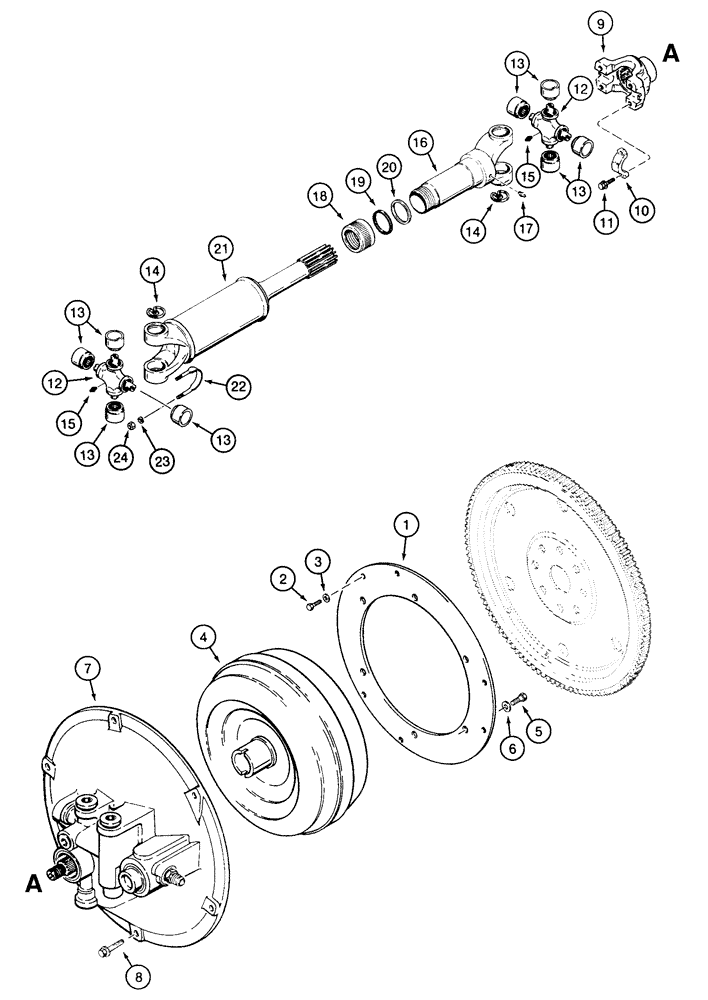

Схема запчастей Case 855E - (6-02) - TORQUE CONVERTER, ADAPTER PLATE AND DRIVE SHAFT (06) - POWER TRAIN
20
15
15
12
13
11
7
16
3
19
24
17
1
5
22
14
10
6
13
23
18
13
14
4
12
21
9
13
13
2
8

Артикул

Название

Примечание

Количество

1

A178706

PLATE

PLATE - adapter, torque converter to flywheel plate

1шт.

2

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

BOLT - hex, 5/16 NF x 5/8 inch, grade 8, adapter plate to flywheel plate

6шт.

3

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER - flat, hardened, special

6шт.

4

R58079

CONVERTER

CONVERTER - torque, component parts not serviced separately

1шт.

4

R58079R

REMAN-TORQUE CONVERT

Reman for New PN R58079

1шт.

4

R58079C

CORE-TORQUE CONVERTR

Core-Torque Converter, Return Number

1шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

BOLT, , Adapter Plate to Torque Converter Hex, M10 x 16, 8.8, Full Thd

6шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

WASHER - flat, 11 x 21 x 2 mm

6шт.

7

1348821C3

CONVERTER

HOUSING ASSEMBLY - torque converter complete, parts list figure 6-4

1шт.

8

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

BOLT - heavy hex flange, special, torque converter housing to flywheel housing

6шт.

9

1348826C1

CLEVIS

YOKE - torque converter housing to drive shaft

1шт.

10

90-6682T1

CLAMP

STRAP - bearing

4шт.

11

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

BOLT - special

8шт.

109491A1

STEERING SHAFT

SHAFT ASSEMBLY - drive, torque, Serial Range: converter-transmission

1шт.

134496A1

TOGGLE

KIT - universal joint

2шт.

12

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

14

R13992

RING, SNAP

RING SNAP RING - retaining, universal joint

4шт.

15

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long, if used

1шт.

16

N14247

YOKE

UNIVERSAL JOINT YOKE TUBE - yoke, torque converter end

1шт.

17

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long

1шт.

18

S301050

PLUG

CAP - dust

1шт.

19

154086H1

WASHER

WASHER - rubber

1шт.

20

S301051

WASHER

WASHER - steel

1шт.

21

S301049

YOKE

UNIVERSAL JOINT YOKE YOKE - splined shaft, transmission end

1шт.

H183566

BOLT

U-BOLT ASSEMBLY - special

2шт.

NSS

NOT SOLD SEPARAT

U-BOLT - special

1шт.

492-11031

LOCK WASHER,5/16"

2шт.

425-115

NUT,5/16"-24, G5

2шт.

Выбрано товаров: 29
