Запчасти Case 855E (4-26) - HORN (04) - ELECTRICAL SYSTEMS

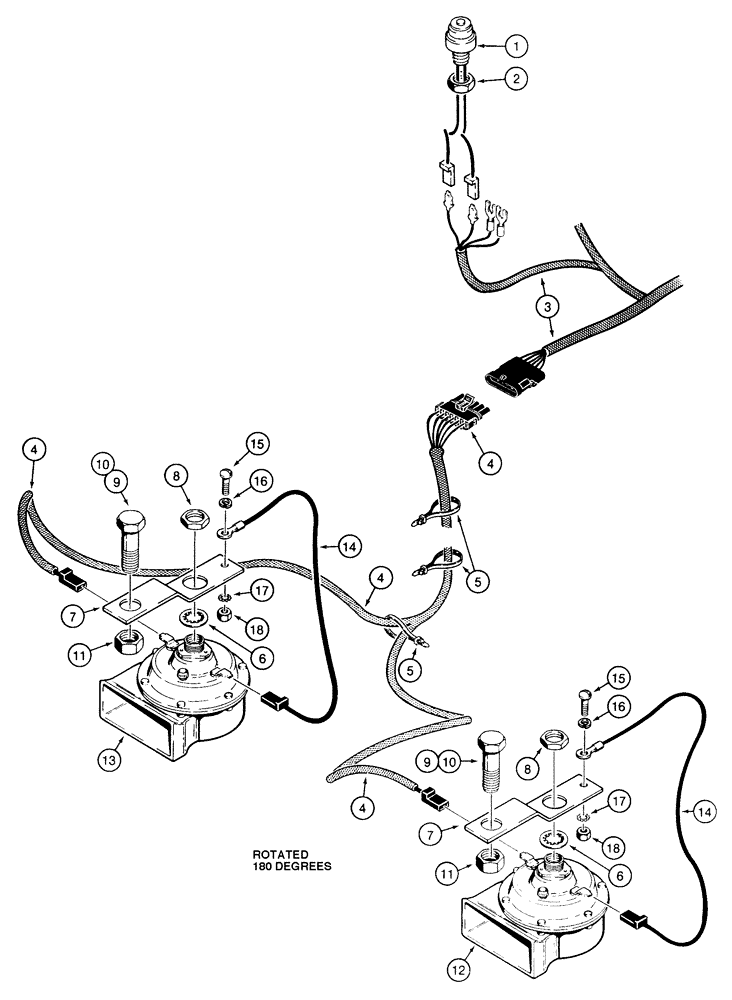

Схема запчастей Case 855E - (4-26) - HORN (04) - ELECTRICAL SYSTEMS
8
4
16
6
10
1
11
4
7
13
11
18
15
5
4
12
4
17
2
9
16
9
15
14
10
18
14
5
7
6
3
8
17

Артикул

Название

Примечание

Количество

1

R58727

SWITCH

- push button, horn

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

1шт.

3

107226A1

HARNESS

- rear wiring, see figure 4-16

1шт.

4

R58115

HARNESS

- front wiring, no longer used, see note on figure 4-10

1шт.

4a

126270A1

HARNESS

- front wiring, see figure 4-14

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

6

493-21078

LOCK WASHER,Int Tooth, 3/4"

WASHER - internal tooth lock, 3/4 inch

2шт.

7

R39064

BRACKET, SUPPORTING

BRACKET - horn mounting

2шт.

8

L30866

LOCK NUT

- hex, special

2шт.

9

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch, used without ROPS canopy brush guards

2шт.

10

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, Used with ROPS canopy brush guards

2шт.

11

425-1012

NUT,3/4"-10, G5

2шт.

12

R45461

HORN

- F note, 24 volt, left-hand, includes an item 8 nut and a bracket that is not used on this tractor

1шт.

13

D77650

HORN

- A note, 24 volt, right-hand, includes an item 8 nut and a bracket that is not used on this tractor

1шт.

14

R36131

ELECTRICAL WIRE

WIRE - ground

2шт.

15

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

16

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

17

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

18

225-14110

NUT,#10-24

2шт.

Выбрано товаров: 19
