Запчасти Case 855E (4-18) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY, WITH OR WITHOUT SCREEN (04) - ELECTRICAL SYSTEMS

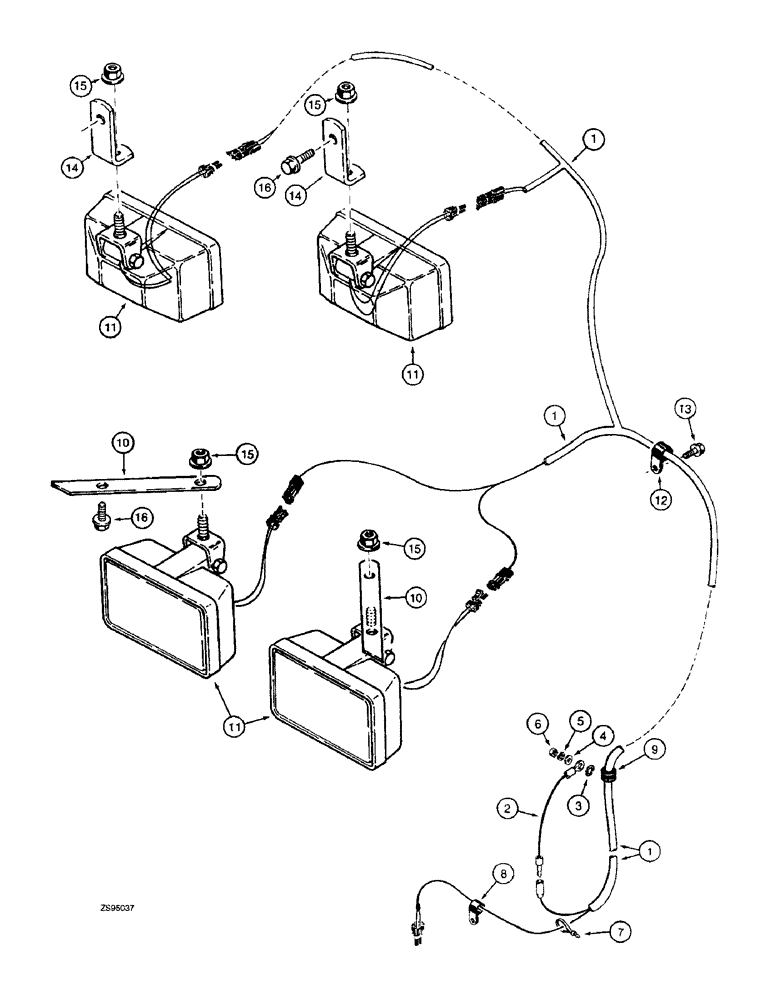

Схема запчастей Case 855E - (4-18) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY, WITH OR WITHOUT SCREEN (04) - ELECTRICAL SYSTEMS
5
6
15
4
1
15
14
16
11
3
14
16
15
8
15
7
10
11
9
1
2
10
12
11
13

Артикул

Название

Примечание

Количество

1

181424A1

HARNESS

- front, Serial Range: harness-lamps

1шт.

2

R47747

ELECTRICAL WIRE

WIRE - ground, harness

1шт.

3

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

4

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, brass, special

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

L127555

NUT,Hex, 3/8" - 16

- hex, brass, special

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID, harness, on hydraulic reservoir

1шт.

9

D37936

GROMMET

- rubber, harness through hydraulic reservoir cover

1шт.

10

R53887

SUPPORT

BRACKET - lamp mounting, use rear screen mounting hardware, on models without rear screen use (2) item 16, 160-106 bolts

2шт.

11

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP ASSEMBLY - front and rear flood, parts list Figure 4-22

4шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

Harness 1/2", Insul, 5/16" Bolt

7шт.

13

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

7шт.

14

186861A1

BRACKET

- front lamp mounting

2шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2-4шт.
