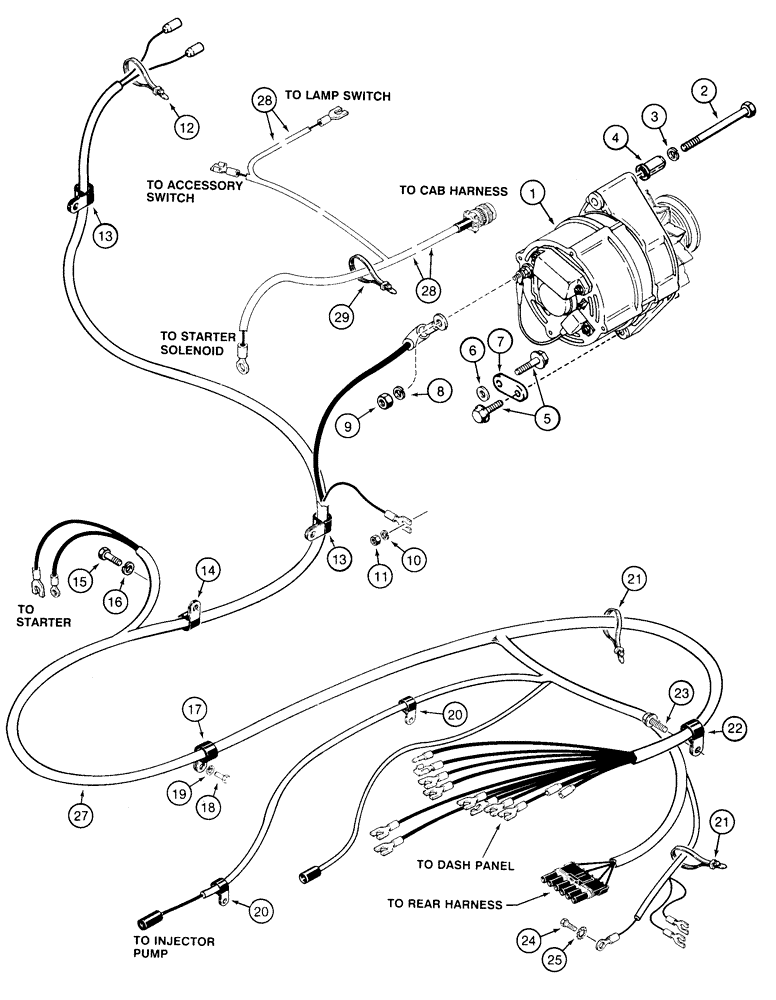

Запчасти Case 855E (4-14) - FRONT WIRING HARNESS AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

A187916

ALTERNATOR,24V, 45A

ASSEMBLY - engine, parts list Figure 4-4

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

4

J902469

SPACER

- alternator mounting, upper

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

- heavy hex flange, 8 - 1.25 x 20 mm, class 10.9

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- flat, special

1шт.

7

J903089

SUPPORT

BRACE - alternator mounting

1шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

9

825-1408

NUT,M8, Cl 8

1шт.

10

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

11

825-1405

NUT,M5, Cl 8

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, if used

1шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type 5/16", Insul, 3/8" Bolt

2шт.

14

49836

CLAMP

- P-type, 1/2 inch ID

1шт.

15

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1шт.

16

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

17

51200329

CLIP

CLAMP - P-type, 3/4 inch ID

2шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

19

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

20

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

D34033

CLAMP

- P-type, 1-3/16 inch ID

1шт.

23

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

24

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

25

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

27

R58115

HARNESS

- front wiring, no longer used, see note below

1шт.

Replace R58115 Harness with one item 27A 126270A1 Harness, and from Figure 4-10, one item 23 120398A1 Relay, two item 40 495-11028 Washer and two item 41 829-1406 Nut. See Figure 4-10, items 23, 40 and 41 for relay and hardware.

1шт.

27a

126270A1

HARNESS

- front wiring

1шт.

28

R58600

HARNESS

- cab models, starter solenoid to main cab harness

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.
