Запчасти Case 855E (4-12) - BATTERY MOUNTING, CABLES, AND STARTER (04) - ELECTRICAL SYSTEMS

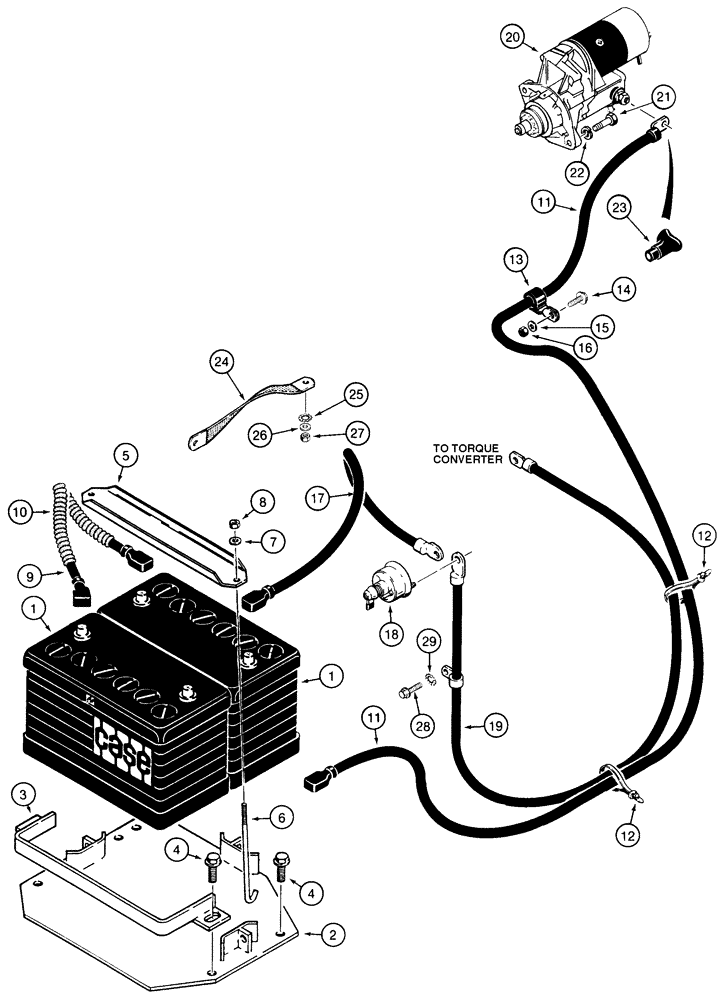

Схема запчастей Case 855E - (4-12) - BATTERY MOUNTING, CABLES, AND STARTER (04) - ELECTRICAL SYSTEMS
5
15
27
2
21
4
11
28
4
25
3
17
23
7
19
12
20
6
29
13
1
1
12
11
9
22
6
18
24
26
16
10
1

Артикул

Название

Примечание

Количество

1

BMF31E

DRY BATTERY

12V

2шт.

2

R51652

SUPPORT

PLATE - battery mounting

1шт.

3

R51654

SUPPORT

BRACKET - rear, battery retaining

1шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

3шт.

5

R46490

BRACKET

Top, battery hold down

1шт.

6

R27652

ROD

BOLT - J-type

2шт.

7

495-11034

WASHER,5/16", SAE

(1/32 x 11/16 x 1/16")

2шт.

8

231-4115

NUT,5/16"-18, GB

2шт.

9

177504A1

CABLE

Jumper, between batteries

1шт.

10

R51835

LOOM

CONDUIT - 5 inch (127 mm) long, cut from R44806 bulk conduit, see below

1шт.

11

R57555

CABLE

Battery, Serial Range: positive,-starter

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch, nylon

1шт.

13

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

Twist, positive battery cable

1шт.

14

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

1шт.

15

495-81127

WASHER,0.39" ID x 0.75" OD x 0.07" Thk

(25/64 x 3/4 x 1/16 inch)

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

R47203

CABLE

Battery, negative

1шт.

18

R52278

SWITCH

Master disconnect

1шт.

19

R58075

CABLE

Battery ground, includes clamp, use loader or dozer lift tube bracket mounting hardware for clamp, see Figure 8-14 or 8-22, use torque converter mounting, Serial Range: hardware-ground

1шт.

20

REF

INSTRUCTION

STARTER ASSEMBLY - engine, see Figure 4-2 for parts list

1шт.

21

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

22

892-11010

LOCK WASHER,M10

3шт.

23

L126713

BOOT

Plastic, battery cable at starter, if used

1шт.

24

D73383

STRAP

Ground, 13 inch (330 mm) long, cab models, uses existing master disconnect switch harware

1шт.

25

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

26

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Flat, 3/8 inch, brass, special

1шт.

27

L127555

NUT,Hex, 3/8" - 16

Hex, 3/8 inch NC brass, special

1шт.

28

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

29

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

R44806

LOOM

CONDUIT - bulk, 88-1/2 inch (2248 mm) long

1шт.

Выбрано товаров: 30
