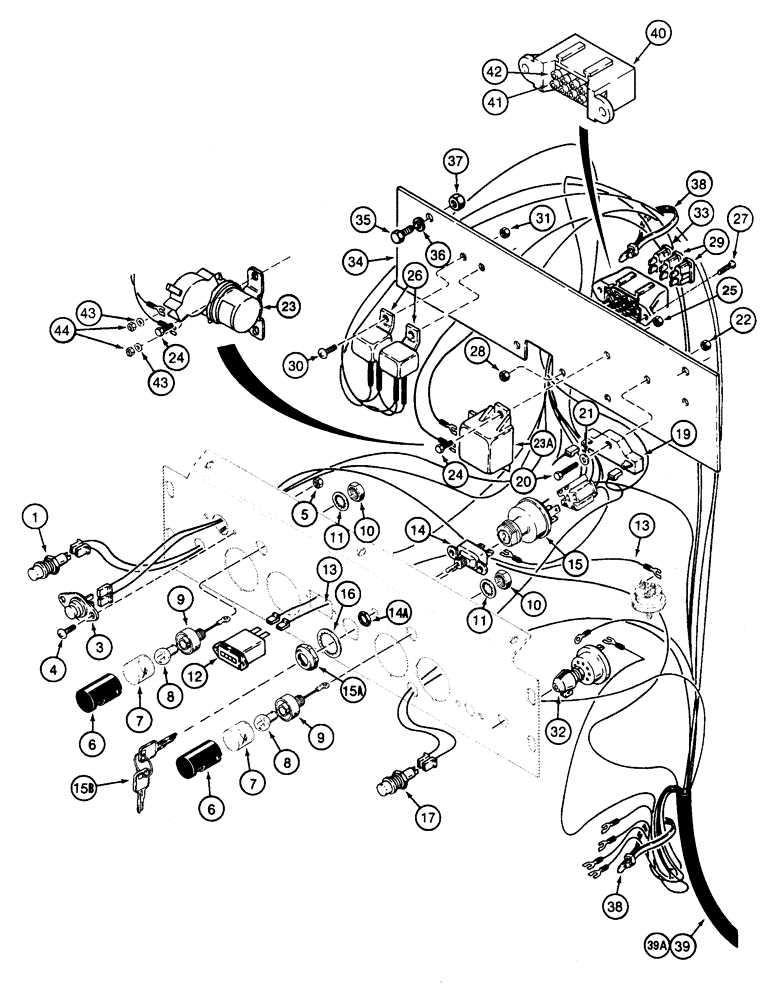

Запчасти Case 855E (4-10) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

A187881

LAMP

- amber lens, No. 1820

1шт.

2

T39215

BULB

- No. 1820, alternator indicator lamp, not shown

1шт.

3

D67872

SWITCH

- push button

1шт.

4

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

6

185383A1

ASSEMBLY

LAMP ASSEMBLY - instrument panel

2шт.

8

71421

BULB,R5W, 12V, 5W

- No. 623

1шт.

10

D39095

NUT

- special

1шт.

11

93-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8 inch

2шт.

12

L107631

METER

HOURMETER - engine

1шт.

13

R27252

HARNESS

WIRE - hourmeter to pressure switch

1шт.

14

R50405

SWITCH

- toggle

1шт.

14a

N13588

SPECIAL NUT

- special, toggle switch

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

15a

101760A1

SPECIAL NUT

- ignition switch

1шт.

15b

A77313

SET OF 2 KEYS

KEY - ignition, set of two; Metal Without Padding

1шт.

16

493-21104

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1 inch

1шт.

17

A187881

LAMP

- amber lens, No. 1820, filter indicator

1шт.

19

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm

1шт.

21

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

22

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

23

120398A1

RELAY

- sealed, 24 volt

1шт.

23a

1546542C1

RELAY

- sealed, 24 volt

1шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

25

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

26

S243589

RELAY

- brake, 24 volt

2шт.

27

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

28

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

29

A149800

FUSE,10 Amp

- red, 10 ampere

2шт.

30

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

31

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

32

R54064

IGNITION SWITCH

SWITCH - lamp

1шт.

33

A149802

FUSE

- yellow, 20 ampere

1шт.

34

R58073

PANEL

- instrument mounting

1шт.

35

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

39

R58115

HARNESS

- front wiring, no longer used, see below

1шт.

Replace R58115 Harness with one item 39A126270A1 Harness, one item 23 120398A1 Relay, two item 40 495-11028 Washer and two item 41 829-1406 Nut.

1шт.

39a

126270A1

HARNESS

- front wiring

1шт.

40

245435C1

FUSE HOLDER

BLOCK ASSEMBLY - fuse

1шт.

41

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL - fuse block, type L10

1шт.

42

506498C1

TERMINAL CONNECTOR

TERMINAL - fuse block, type L11

1шт.

43

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

44

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

506504C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL STRIPS, go inside fuse block

1шт.

506498C1

TERMINAL CONNECTOR

TERMINAL STRIPS, go inside fuse block

1шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.
