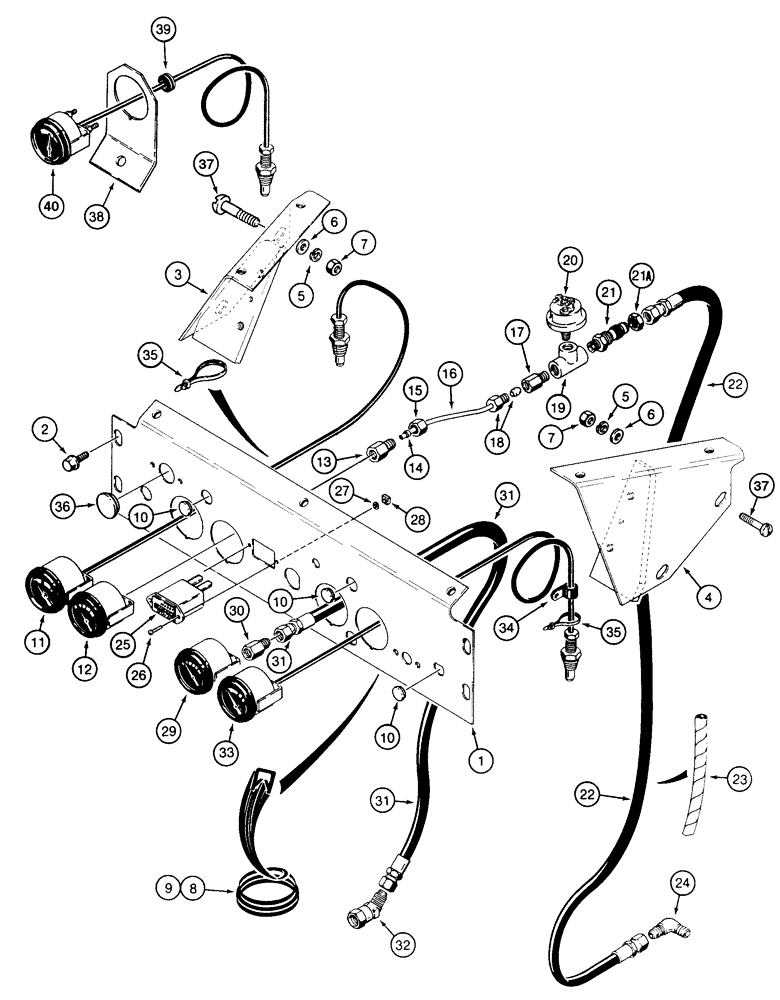

Запчасти Case 855E (4-06) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R58269

PANEL, INSTRUMENTS

PANEL - instrument, includes decal, see figure 9-102 for decal

1шт.

2

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

3

R58274

BRACKET

- instrument panel, left-hand, dozer model only

1шт.

4

R58273

BRACKET

- instrument panel, right-hand, dozer model only

1шт.

5

492-11038

LOCK WASHER,3/8"

dozer model only 3/8"

4шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Dozer model only 3/8", SAE

4шт.

7

425-106

NUT,3/8"-16, Cl 5

Dozer model only 3/8"-16, G5

4шт.

8

R58745

ADHESIVE STRIP

TRIM - panel edge, 32-1/2 inch (825 mm) long, dozer model only

1шт.

9

R58744

MOLDING

TRIM - panel edge, 31-1/2 inch (800 mm) long, loader model only, cut fromR58745 above

1шт.

10

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16 inch, if used

3шт.

11

R52133

GAUGE

- engine temperature

1шт.

12

R49132

GAUGE ASSY.

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

ADAPTER ASSEMBLY - straight, compression, engine oil pressure gauge

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

14

D37176

SLEEVE

- compression

1шт.

15

D37362

TUBE NUT

- adapter, compression

1шт.

16

A152199

PIPE

TUBE - nylon, 20 inch (508 mm) long, cut from A138483 bulk tube

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

18

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

19

217-1160

TEE,1/8"-27 Female

- pipe, 1/8 inch female

1шт.

20

D28796

SWITCH

- engine oil pressure, see page 4-11 for electrical connectors

1шт.

21

R58667

FITTING

ADAPTER - bulkhead

1шт.

21a

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

22

D95117

HOSE

- 57 inch (1448 mm) long, engine oil pressure

1шт.

23

R12586

TAPE

SLEEVE - hose guard

1шт.

24

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

- 90 degree, long, 7/16-20 flare x 1/8 inch PT, engine oil pressure, left-hand side of engine block

1шт.

25

L107631

METER

HOURMETER - engine

1шт.

26

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, Fillister head, No. 5 NC x 1/2 inch

2шт.

27

492-11005

LOCK WASHER,#5

Washer, Lock, #5

2шт.

28

224-10005

SQUARE NUT,Sq, #5-40

- square, No. 5 NC

2шт.

A138483

TUBE

- nylon, 99 inch (2515 mm) long

1шт.

29

138860A1

GAUGE

- transmission oil pressure

1шт.

30

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch female PT

1шт.

31

R58666

HOSE ASSY.

HOSE - transmission oil pressure, 30 inch (762 mm) long

1шт.

32

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, 9/16-18 inch flare x swivel

1шт.

33

R54146

GAUGE

- torque converter temperature, includes tube and connector

1шт.

34

51200330

CLAMP

- P-type, 3/16 inch ID, torque converter temperature cable, uses torque converter mounting hardware

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

36

353-411

PLUG,Dome, 1.000" hole, Nylon

Used if cold start system is not required Dome, 1.000" hole, Nylon

1шт.

37

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT - carriage 3/8 NC x 1-1/4 inch

4шт.

38

R38711

PANEL

BRACKET - gauge, uses reservoir top cover mounting harware, used on backhoe models only

1шт.

39

L13766

GROMMET

- bracket, gauge cable, used on backhoe models only

1шт.

40

R58475

ELECTRICAL GAUGE

GAUGE - hydraulic oil temperature, connects into reservoir, used on backhoe models only

1шт.
