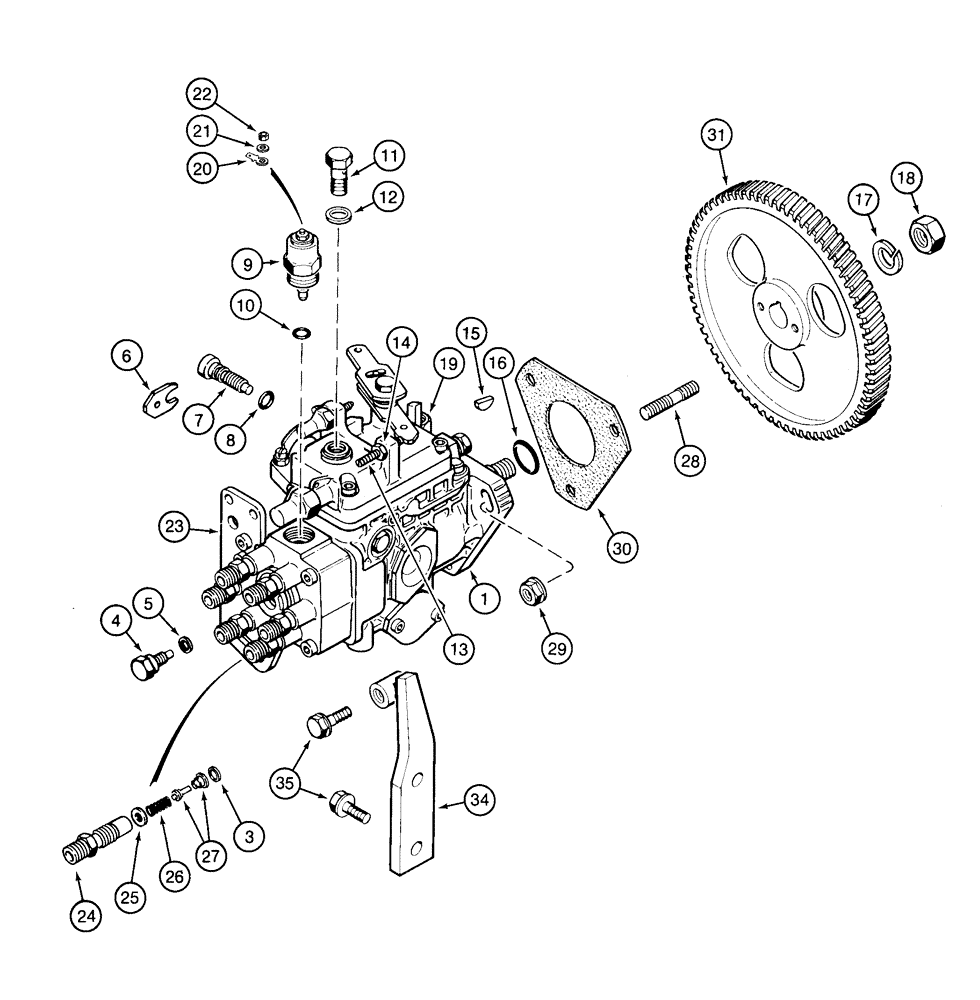

Запчасти Case 855E (3-16) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J922411

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new

1шт.

1

JR922411

REMAN-INJECTION PUMP

Pump Assembly, Fuel Injection, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly, For Service Order Item 1, J922411 Pump Assembly

1шт.

1

JC922411

CORE-INJECTION PUMP

Return Part Number

1шт.

1

J921323

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, no longer available, for service order J922411 pump assembly

1шт.

1

JR921323

REMAN-HYD PUMP

Pump Assembly, Fuel Injection, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly, No Longer Available, Order JR922411 Pump Assembly

1шт.

1

JC921323

CORE-HYDRAULIC PUMP

Return Part Number, Use This Part Number To Return Pump Core For Credit When Using a Remanufactured Assembly

1шт.

JC917503

PUMP, FUEL INJECTION

PUMP, INJECTION RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

5

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - gasket, vent screw, replaces J903573 ring

1шт.

6

J904786

PLATE

PLATE - timing lock

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

9

A77797

SOLENOID

SOLENOID - shut down, 24 volt, includes items 10, 20, 21, and 22 shown below, replaces J903576 solenoid

1шт.

10

J903577

SEAL

SEAL - solenoid

1шт.

11

J905465

BANJO BOLT

BOLT - banjo, overflow

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - overflow screw

1шт.

13

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

14

J904783

NUT

NUT - low idle screw

1шт.

15

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Replaces J902332 key #6, 5/32" x 5/8", HT

1шт.

16

J920393

SEAL

SEAL - shaft

1шт.

17

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm, Replaces 2-11056 washer

1шт.

18

J903738

NUT

NUT - hex, special, 14 mm - 2.0

1шт.

19

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER - tube

1шт.

20

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - , D+ adapter Male

1шт.

21

J907481

WASHER

WASHER - lock, special

1шт.

22

J907480

NUT

NUT - special

1шт.

23

J905697

SUPPORT

BRACKET - pump support

1шт.

24

J910794

FITTING

FITTING - bypass delivery valve

6шт.

25

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

WASHER - special, used as shim

6шт.

26

J910796

SPRING

SPRING - delivery valve

6шт.

27

J910795

BY-PASS VALVE

VALVE - bypass delivery

6шт.

28

J902501

STUD

STUD - pump mounting, 8 - 1.25 x 48 mm

3шт.

29

J900589

NUT

NUT - hex flange, special, 8 mm

3шт.

30

J914389

GASKET

GASKET - pump mounting

1шт.

31

J920594

PINION

GEAR - pump drive

1шт.

34

J905313

LEVER

BRACE - fuel pump

1шт.

35

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

3шт.
