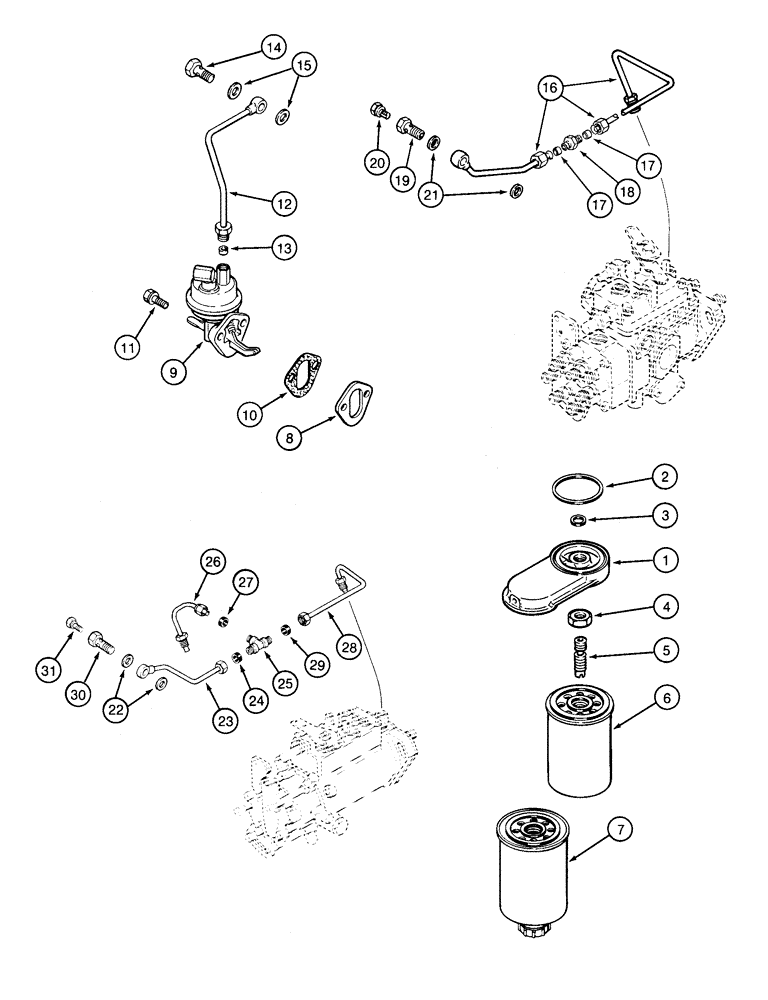

Запчасти Case 855E (3-12) - FUEL FILTER AND LIFT PUMP, 6-590 ENGINE, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

4

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845 adapter

1шт.

6

J925274

FILTER, FUEL

FILTER - fuel, primary, replaces J903410 filter

1шт.

7

J903640

FILTER, FUEL

FILTER - fuel

1шт.

8

J914284

SPACER

- fuel transfer pump mounting

1шт.

9

J904374

PUMP

- lift, fuel

1шт.

10

J923054

GASKET

- mounting, fuel transfer pump, replaces J914304 gasket

2шт.

11

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

12

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE - fuel supply

1шт.

13

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

14

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

15

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

16

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply, two-piece, replaces J917564 and J912783 tubes

1шт.

17

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

18

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - compression, 5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent

1шт.

21

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

22

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

23

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, Serial Range: filter-tee

1шт.

24

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

25

J905353

TEE

- 9/16 inch NF (remove and discard nuts before assembly) replaces 222-123 tee

1шт.

26

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump

1шт.

27

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

28

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE - fuel supply, tee to front of injection pump

1шт.

29

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

32

J926764

GASKET KIT

KIT - transfer pump repair, not shown, replaces J920544 kit

1шт.

33

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

34

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

35

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

37

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.
