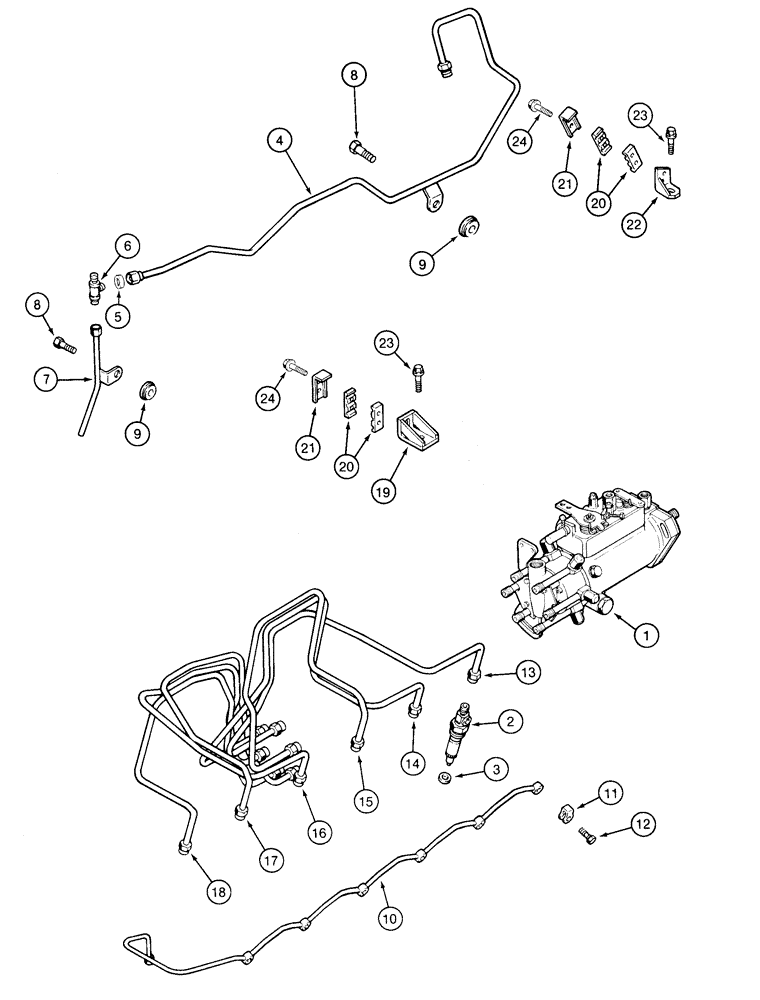

Запчасти Case 855E (3-08) - FUEL INJECTION SYSTEM, 6-590 ENGINE (03) - FUEL SYSTEM

1

J921501

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, parts list Figure 3-14

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see Figure 3-18

6шт.

3

J906659

SEAL

- injector nozzle, see Figure 3-18, item 3

6шт.

4

J920891

FUEL TUBE,4.76 mm OD x 909.3 mm L

TUBE - fuel drain, replaces J905709 tube

1шт.

Fuel tubes, items 4 and 7, bolt to intake cover, see Figure 2-06, items 7, 11 and 12.

1шт.

5

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD

1шт.

6

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (Remove and discard hex nuts and sleeves before assembly)

1шт.

7

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

2шт.

Fuel tubes, items 4 and 7, bolt to intake cover, see Figure 2-06, items 7, 11 and 12.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

9

J900267

SEAL

- cover bolt

2шт.

10

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

13

J914796

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

14

J914798

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

15

J914800

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

16

J914802

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

17

J914804

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 5 cylinder

1шт.

18

J914806

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, for service order items 19, 20, 21 and 24

1шт.

19

J917777

BRACE

- fuel tube

1шт.

20

J917747

CLAMP

- fuel tube

4шт.

21

J904519

SUPPORT

BRACE - tube retaining

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, no longer available, for service order items 20, 21, 22 and 24

1шт.

22

J917778

BRACE

- fuel tube

1шт.

23

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

2шт.

24

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J917712 bolt and J903723 washer Hex Hd, M5 x .8 x 20, w/LW

2шт.
