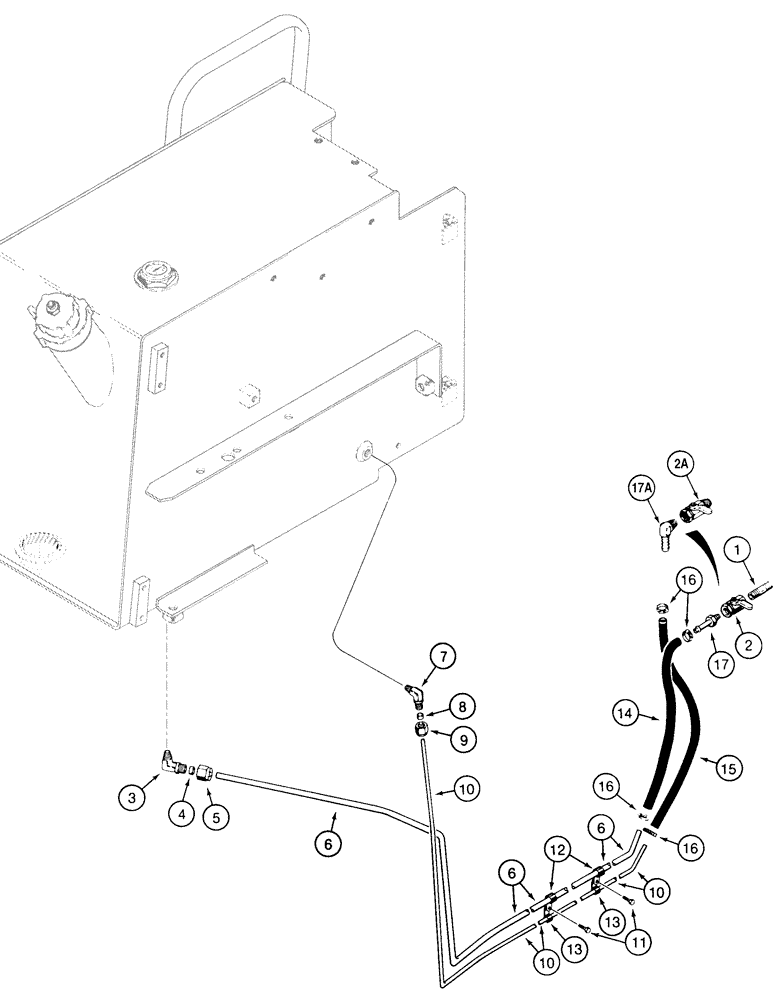

Запчасти Case 855E (3-06) - FUEL LINES (03) - FUEL SYSTEM

1

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - straight, 1/4 PT x 7/8 inch, if used

1шт.

2

R47797

VALVE

- shutoff, fuel tank, if used

1шт.

2a

113092A1

VALVE

- shutoff, fuel tank, if used

1шт.

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression, 5/16 tube OD x 1/4 inch PT

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

5

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch

1шт.

6

R57877

FUEL TUBE,0.312" OD

TUBE - fuel supply, 5/16 inch OD

1шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/4 inch PT

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

8

222-102

SLEEVE,1/4" Tube

1шт.

9

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

1шт.

10

R57878

FUEL TUBE,0.25" OD

TUBE - fuel return, 1/4 inch OD

1шт.

11

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

12

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Tube 5/16", Insul, 3/8" Bolt

2шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube, P-type, 1/4 inch ID

2шт.

14

104228A1

FUEL HOSE,7.93 mm ID x 250.00 mm, SAE 30R3

- Supply, Fuel tank to lift pump 7.93 mm ID x 250.00 mm, SAE 30R3

1шт.

15

S119600

FUEL HOSE,0.19" ID x 10.00", SAE 30R3

HOSE 0.19" ID x 10.0", SAE 30R3, Return, Filter to Fuel Tank, Cut from Bulk Hose, See below

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

4шт.

17

217-206

FITTING

- stem, straight, 5/16 inch hose ID x 1/4 inch PT, at fuel lift pump, if used

1шт.

17a

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 5/16 inch stem end x 1/4 inch PT, at fuel lift pump, if used

1шт.

S118575X

HOSE

- bulk, 3/16 (5) x 3/8 (10) x 300 inch (7620 mm) long

1шт.
