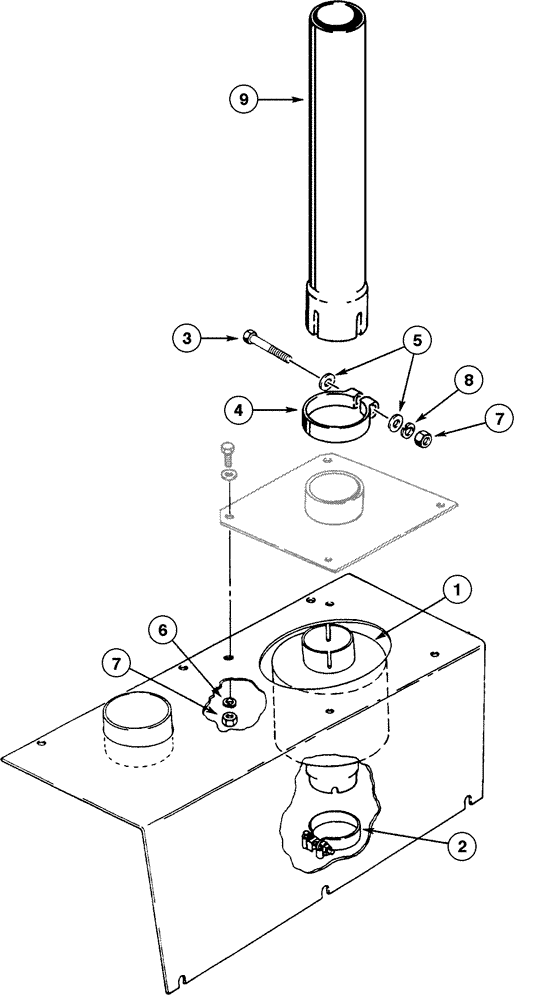

Запчасти Case 855E (2-55A) - MUFFLER FOR MODELS WITH TURBOCHARGER (02) - ENGINE

1

182284A1

MUFFLER

- turbocharger exhaust

1шт.

2

190981A1

CLAMP,76.2mm ID

- at muffler

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

3

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

4

R27699

CLAMP,114.3mm

- exhaust pipe

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

5

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

- flat, 13/32 x 13/16 x 1/16 inch, hardened

2шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

7

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

8

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , NC 3/8"

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

9

189279A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust, muffler

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

192381A1

SPARE PART SET

KIT - muffler service, Includes: Ref. 2-9 and also, 18-21 on Figure 09-42. See Service Bulletin NCR SB 005.1 95 for installation.

1шт.
