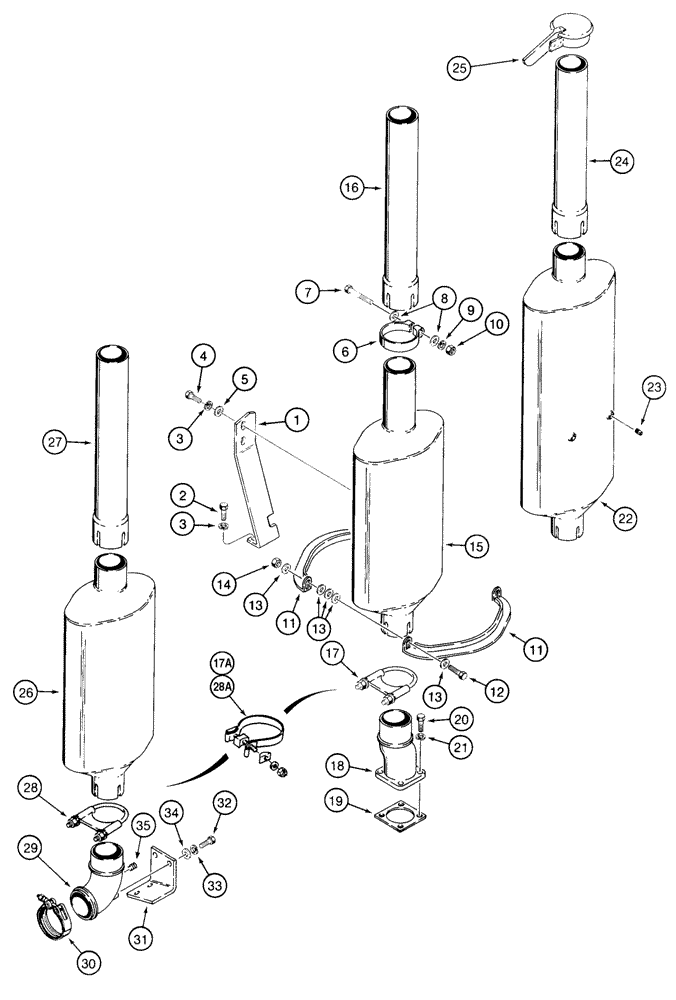

Запчасти Case 855E (2-54) - MUFFLER MOUNTING AND EXHAUST PARTS, PARTS USED ON ALL MODELS (02) - ENGINE

1

R58674

SUPPORT

BRACKET - muffler support

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

6

R48710

CLAMP,85.7mm

- muffler

1шт.

7

113-2271

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

8

195-81020

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

11

R52400

FIXING BRACKET

FLANGE - muffler

2шт.

12

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

13

H426775

WASHER

- flat, special, hardened

10шт.

14

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

15

A171649

MUFFLER

- standard, models without turbocharger, if used

1шт.

16

R50400

PIPE, EXHAUST SYSTEM

PIPE - exhaust, standard, not used on models with spark arrester muffler, if used, without turbocharger

1шт.

17

S65056

CLAMP

- muffler to manifold adapter, includes hardware, no longer used, order 122594A1 clamp below, models without turbocharger

1шт.

17a

122594A1

CLAMP,86.46mm

- muffler to manifold adapter, includes hardware, used on models without turbocharger

1шт.

18

A171507

ADAPTER

- muffler, parts used on models without turbocharger

1шт.

19

J912220

GASKET,0.4mm Thk

- muffler adapter, parts used on models without turbocharger

1шт.

20

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Parts used on models without turbocharger Hex, M10 x 30, 8.8

4шт.

21

892-11010

LOCK WASHER,M10

Parts used on models without turbocharger M10

4шт.

22

A171419

MUFFLER

- spark arrester, models without turbocharger, if used

1шт.

23

217-77

PLUG

- square, 3/8 inch PT, brass, parts used on models without turbocharger

2шт.

24

R50401

PIPE

EXHAUST PIPE - models with spark arrester muffler, if used, parts used on models without turbocharger

1шт.

25

A189374

CAP

- rain, models with spark arrester muffler, if used, parts used on models without turbocharger

1шт.

26

1547970C1

MUFFLER

- turbocharger exhaust, if used, no longer available, order muffler 182284A1 and muffler service kit 192381A1 on Figure 2-55A

1шт.

27

R50400

PIPE, EXHAUST SYSTEM

PIPE - exhaust, models with turbocharger, if used

1шт.

28

S65056

CLAMP

- muffler to turbocharger tube, no longer used, order 122594A1 clamp below, parts used on models with

1шт.

28a

122594A1

CLAMP,86.46mm

- muffler to turbocharger tube, parts used on models with

1шт.

29

A173623

ELBOW

- turbocharger exhaust, parts used on models with

1шт.

30

A170467

CLAMP,72mm ID

- at turbocharger elbow, includes hardwarem, parts used on models with

1шт.

31

A171823

BRACKET

- turbocharger elbow, parts used on models with

1шт.

32

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Parts Used on Models with Turbocharger Hex, M10 x 25, 8.8, Full Thd

4шт.

33

892-11010

LOCK WASHER,M10

Parts used on models with turbocharger M10

4шт.

34

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened, parts used on models with turbocharger

4шт.

35

221-841

PLUG

- hex socket, 1/4 inch PT, in elbow, parts used on models with turbocharger

1шт.
