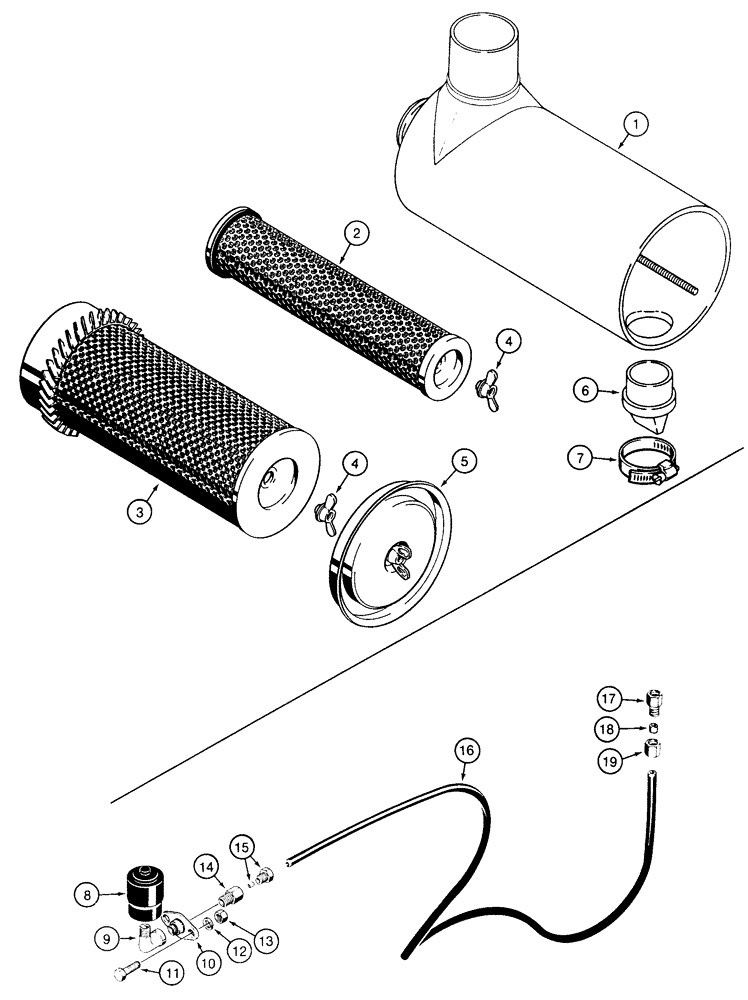

Запчасти Case 855E (2-52) - AIR CLEANER ASSEMBLY AND RESTRICTION INDICATOR (02) - ENGINE

A173852

FILTER ASSY

CLEANER ASSEMBLY - air, engine, used on all models

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

A47033

AIR FILTER

ELEMENT - secondary, inner

1шт.

3

A47032

AIR FILTER

ELEMENT - primary, outer

1шт.

4

D78354

WING NUT

NUT - wing, element

2шт.

5

A52419

COVER

- end, with tab for primary element wing nut retention

1шт.

6

S113982

CAP

VALVE - dust, rubber, 3 inch (76 mm), air cleaner

1шт.

7

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - adj, 2-9/16 - 3-1/2 inch dia, dust valve, not part of air cleaner assembly, order separately

1шт.

8

A59569

INDICATOR

- restriction, air

1шт.

9

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

10

H357707

FLANGE

BRACKET - restriction indicator mounting

1шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

15

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

16

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

TUBE - nylon, 20-7/8 inch (530 mm) long, cut from L60539X bulk, see below

1шт.

D35091

PIPE FITTING

ADAPTER ASSEMBLY - straight, compression, female

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

18

D37176

SLEEVE

- compression

1шт.

19

D37362

TUBE NUT

- compression

1шт.

L60539X

TUBE

- bulk, nylon, 1/8 (3) ID x 168 inch (4267 mm) long

1шт.
