Запчасти Case 855E (2-48) - RADIATOR ASSEMBLY, MODINE (02) - ENGINE

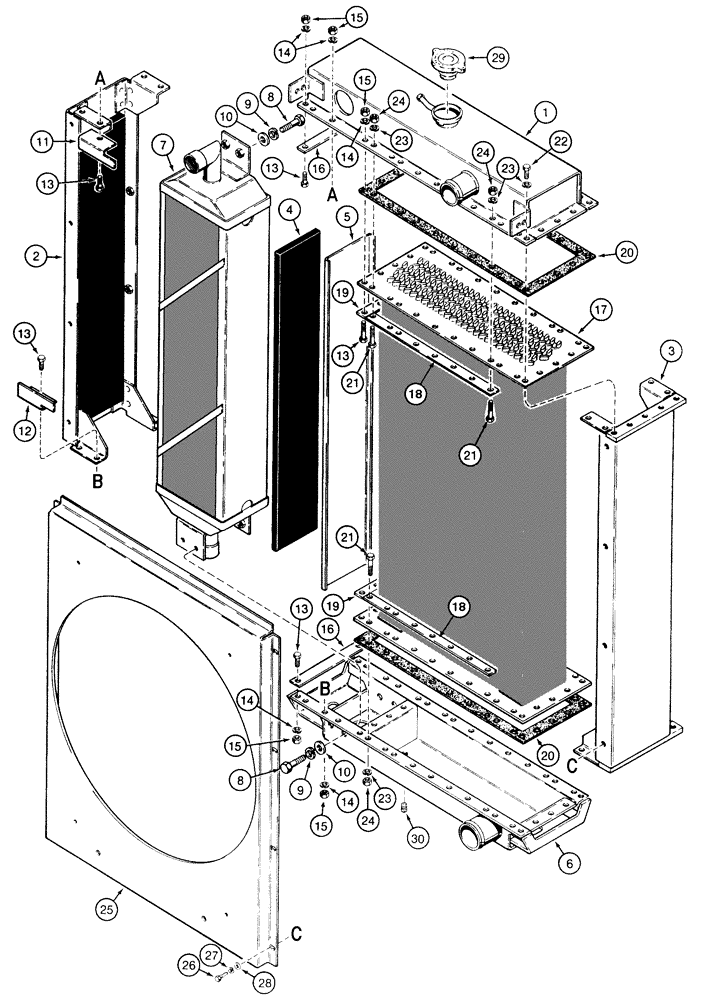

Схема запчастей Case 855E - (2-48) - RADIATOR ASSEMBLY, MODINE (02) - ENGINE
16
13
21
23
18
29
23
30
20
9
2
1
14
15
8
20
17
15
23
14
21
14
25
28
27
8
24
21
19
10
10
13
3
16
12
18
24
24
7
13
13
11
22
5
9
6
14
4
15
26
19
13
15

Артикул

Название

Примечание

Количество

R49826

RADIATOR

ASSEMBLY - see note below, Modine Ref. No. R52865

1шт.

When ordering R49826 radiator assembly, you will receive either a Modine radiator assembly (parts list shown above) or a General Thermodynamics radiator assembly (parts list on Figure 2-46). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

N14785

COVER

TANK - top

1шт.

2

N14793

LARGE PLATE

PANEL - left-hand side, covers oil cooler tank

1шт.

3

N14788

LARGE PLATE

PANEL - right-hand side, with panel for vibration dampener

1шт.

4

N14798

NOISE PROTECTION

INSULATOR - vibration dampener

1шт.

5

N14799

LARGE PLATE

PLATE - core reinforcement, between core and oil cooler

1шт.

6

N14786

COVER

TANK - bottom

1шт.

7

N14792

COOLER, OIL

COOLER - oil, tank

1шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Oil cooler mounting Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

10

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

11

N14795

LARGE PLATE

BAFFLE - oil cooler, upper

1шт.

12

N14796

LARGE PLATE

BAFFLE - oil cooler, lower

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

14шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

14шт.

16

N14797

LARGE PLATE

PLATE - reinforcement, oil cooler, upper and lower

2шт.

17

N14787

RADIATOR

CORE - radiator

1шт.

18

N14790

LARGE PLATE

PLATE - reinforcement, 13-5/8 inch long, core header flange, front and rear

4шт.

19

N14789

LARGE PLATE

PLATE - reinforcement, 7-1/2 inch long, core header flange, inner

2шт.

20

N14791

GASKET

- core, upper and lower

2шт.

21

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

40шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

50шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

40шт.

25

N14794

LARGE PLATE

SHROUD - radiator

1шт.

26

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, shroud mounting

8шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

28

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16inch

8шт.

29

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

30

221-841

PLUG

- hex socket, 1/4 inch PT, replace with elbow and drain valve shown on Figure 2-44

1шт.

Выбрано товаров: 32
