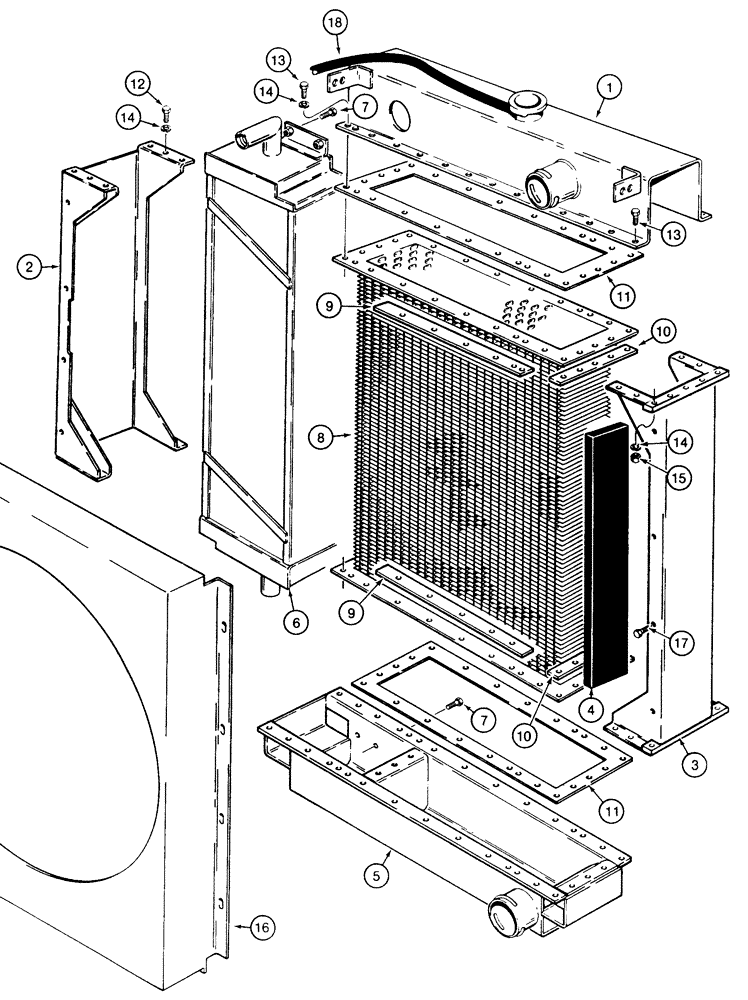

Запчасти Case 855E (2-46) - RADIATOR ASSEMBLY, GENERAL THERMODYNAMICS (02) - ENGINE

R49826

RADIATOR

ASSEMBLY - see note below, General Thermodynamics Ref. No. R52864

1шт.

When ordering R49826 radiator assembly, you will receive either a General Thermodynamics radiator assembly (parts list shown above) or a Modine radiator assembly (parts list on Figure 2-48). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

N9753

COVER

TANK - top

1шт.

2

N9755

LARGE PLATE

PANEL - left-hand side, covers oil cooler tank

1шт.

3

N9756

LARGE PLATE

PANEL - right-hand side, with panel for vibration dampener

1шт.

4

N7887

PADDING

INSULATOR - vibration dampener, if used, single piece as shown not available, replace with three strips of 1968072 C1, see below

1шт.

5

N9754

COVER

TANK - bottom

1шт.

6

N9759

RESERVOIR

COOLER - oil, tank

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Oil cooler mounting

4шт.

8

N9757

RADIATOR

CORE - radiator

1шт.

9

N9761

LARGE PLATE

PLATE - reinforcement, core

4шт.

10

N9760

LARGE PLATE

PLATE - reinforcement, core ends, inner

2шт.

11

N9762

GASKET

GASKET - core, upper and lower

2шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

13шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

59шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

72шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

59шт.

16

N9758

LARGE PLATE

SHROUD - radiator

1шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Shroud mounting

8шт.

18

NSS

NOT SOLD SEPARAT

HOSE - overflow, see figure 2-44 for correct overflow hose

1шт.

1968072C1

SEAL

STRIP - foam, 19-5/16 inch (490 mm) long

3шт.
