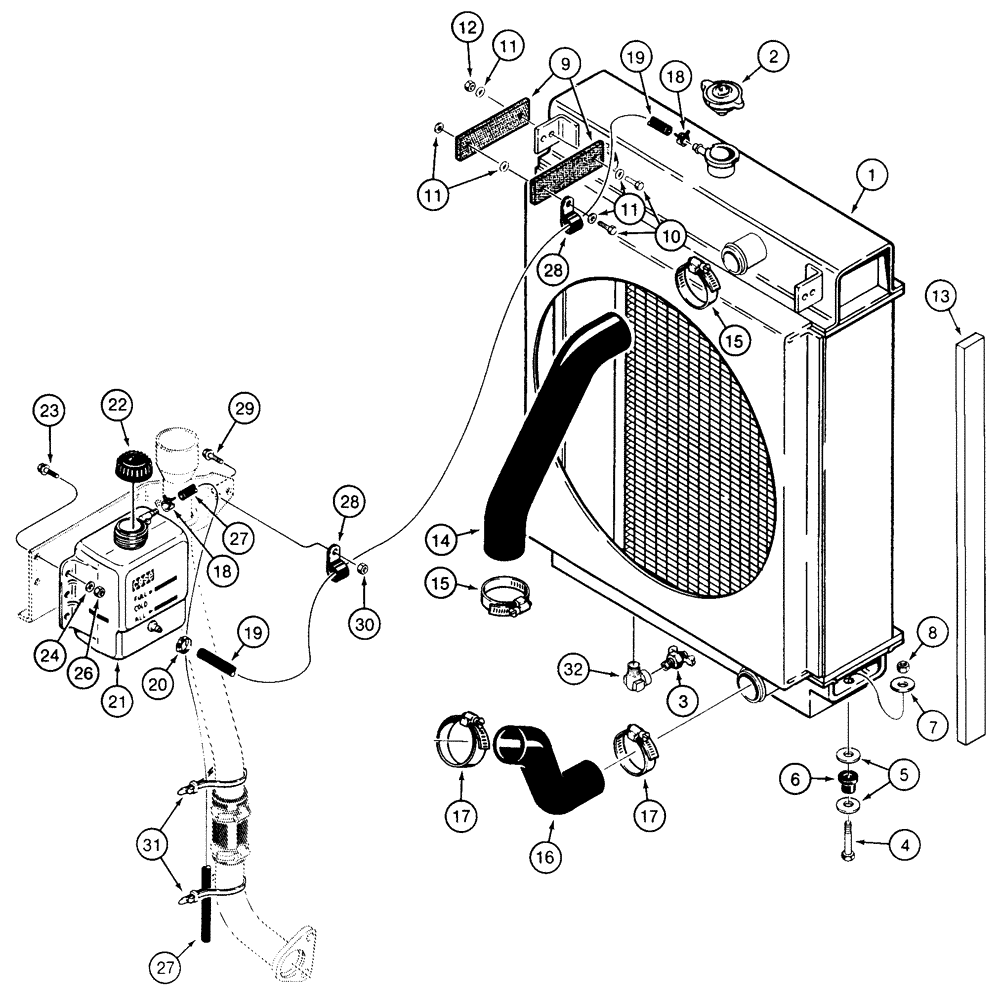

Запчасти Case 855E (2-44) - RADIATOR, HOSES, AND COOLANT BOTTLE (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - engine cooling, for correct assembly and components see pages 2-47 and 2-49

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

217-92

COCK

VALVE - 1/4 inch PT, radiator drain

1шт.

4

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

5

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

- flat, hardened, special

4шт.

6

R29799

SHOCK ABSORBER

INSULATOR - rubber, radiator mounting

2шт.

7

D25022

WASHER

- flat, hardened, special

2шт.

8

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

9

D73500

STRAP

- radiator mounting

4шт.

10

113-2279

LOCK BOLT,Locking, 3/8"-16 x 1 3/4", G5

BOLT, Locking, 3/8"-16 x 1 3/4", G5

4шт.

11

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, special

10шт.

12

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

13

R53624

PAD

- non-recirculating, 2 x 31-5/16 inch, cut from R30870, see below

2шт.

For upper and lower radiator baffles and pads, see figures 9-39 and 9-41.

1шт.

14

R54514

RADIATOR HOSE,45.00 mm ID x 400.00 mm, SAE 20R4 Class C or SAE 20R4 Class D1

HOSE - radiator, upper

1шт.

15

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adj., Upper radiator hose 1.75/2.625 HD Worm, W/liner

2шт.

16

R54513

RADIATOR HOSE,58.00 mm ID x 195.00 mm, SAE 20R4 Class C or SAE 20R4 D1

HOSE - radiator, lower

1шт.

17

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

CLAMP - adj, 2-1/4 - 3-1/8 inch dia, lower radiator hose

2шт.

18

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring type, coolant bottle hoses

2шт.

19

138593A1

HOSE,8.3 mm ID x 1120.00 mm, SAE J30 OR SAE 20R4

- 1120 mm long, radiator to coolant bottle, cut from L126767 bulk hose, see below

1шт.

For upper and lower radiator baffles and pads, see figures 9-38 and 9-41.

1шт.

20

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia, at coolant bottle

1шт.

21

L127093

RESERVOIR

RESERVOIR - coolant

1шт.

22

1547924C1

CAP

- coolant recovery bottle

1шт.

23

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

24

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

26

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

27

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

7.50 mm ID, 8.30 mm ID x 1000.00 mm, SAE J30 - Cut from L126767 Bulk Hose, See Below

1шт.

For upper and lower radiator baffles and pads, see figures 9-38 and 9-40.

1шт.

28

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

2шт.

29

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

32

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street, radiator valve drain 90º, 1/4"-27, NPT

1шт.

R30870

PAD

- bulk, 54 (1372) x 72 (1829) x 1 inch (25 mm) thick

1шт.

For upper and lower radiator baffles and pads, see figures 9-38 and 9-40.

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

For upper and lower radiator baffles and pads, see figures 9-38 and 9-40.

1шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.
