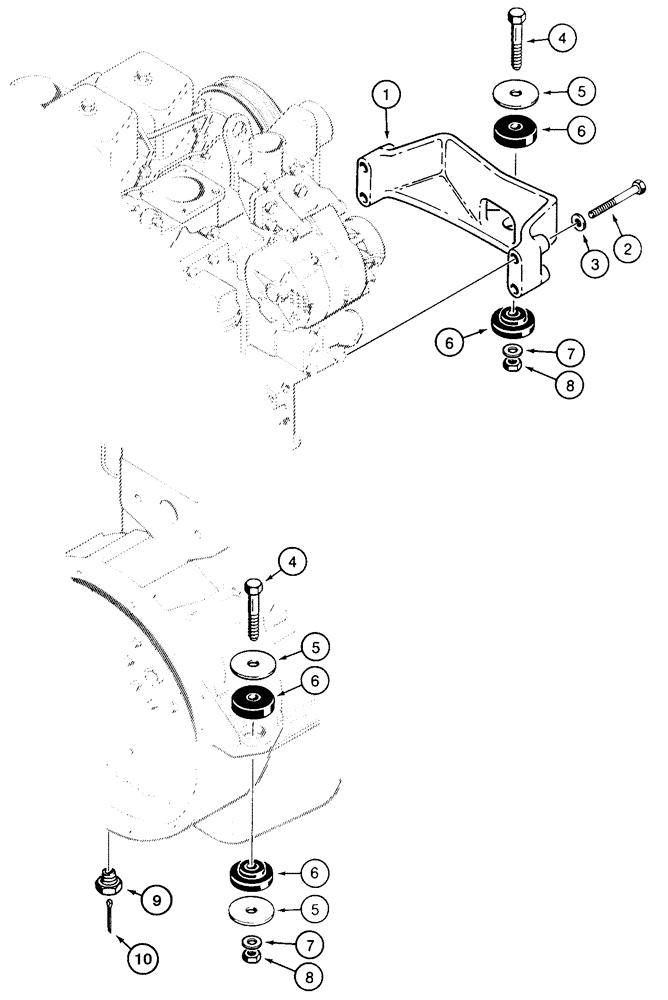

Запчасти Case 855E (2-40) - ENGINE MOUNTING (02) - ENGINE

1

A170985

BRACKET

- engine mounting

1шт.

2

A171690

BOLT

BOLT - hex, special, 12 mm - 1.75 x 85 mm, class 10.9

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

4

113-2632

LOCK BOLT,Locking, 5/8"-11 x 3 1/2", G5

BOLT, Locking, 5/8-11 x 3 1/2", G5

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

- flat, special, 5/8 inch

5шт.

6

R49921

RUBBER MOUNTING

INSULATOR - rubber

6шт.

7

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

3шт.

8

425-1010

NUT,5/8"-11, G5

3шт.

9

L113178

PLUG

BUSHING - reducer

1шт.

10

32-1416

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), 7/32" x 1"

1шт.
