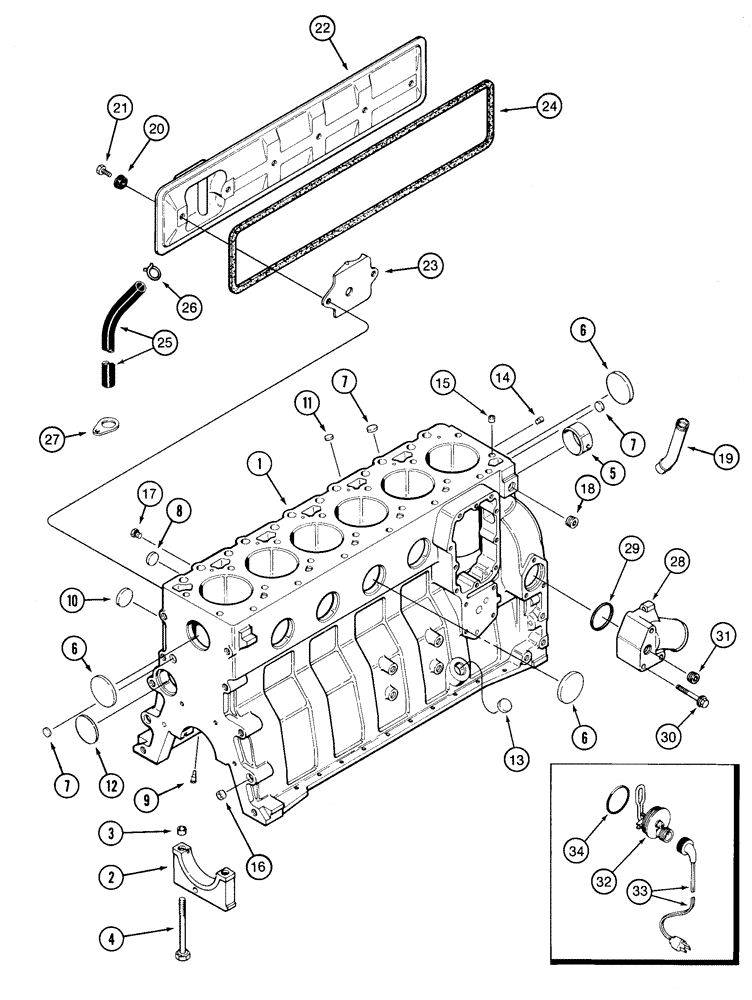

Запчасти Case 855E (2-26) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

1989130C1

ENGINE

ENGINE ASSEMBLY - complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below

1шт.

1989163C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manif., flywheel and housng, oil fill and dipstick, fuel injection pump, injectrs and lines, front crnk pulley, turbochger and blt tensioner

1шт.

1989096C2R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE ASSEMBLY - basic, remanufactured, For North America only, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

1989096C2C

CORE-ENGINE

RETURN NUMBER - use this part number to return core for credit when using a remanufactured assembly

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

A77762

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, order J920392 short block assembly

1шт.

J920392

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

JR920392

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, remanufactured, For North America only, component parts shown on this Figure do not apply to the remanufactured assembly, replaces AR77762 short block assembly

1шт.

JC920392

CORE-SHORT ENGINE

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly, replaces AC77762

1шт.

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, replaces A77760 stripped block

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see item 2 on Figure 2-20

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Replaces A77539 plug Cup, 1", Stainless

4шт.

J920399

PACKAGE, REPAIR

KIT - block hardware

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

13

A77439

PLUG

PLUG - expansion, 22 mm OD, not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, see Figure 2-8 for connecting parts

1шт.

20

J900267

SEAL

SEAL - cover bolt

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm, Replaces J900629 bolt

4шт.

22

J927913

COVER

COVER - tappet, replaces J911822 cover

1шт.

23

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

24

J928832

GASKET

GASKET - tappet cover, replaces J907617 gasket

1шт.

25

J918612

TUBE,360.00 mm

Breather, Replaces J906593

1шт.

26

J904230

CLAMP,25.4mm

CLAMP - spring, hose, spring type, hose

1шт.

27

J909670

CLIP

CLIP - retaining, breather hose

1шт.

28

J903102

CONNECTION

CONNECTION - water inlet

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

31

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

32

NSS

NOT SOLD SEPARAT

HEATER - engine block

1шт.

33

J905113

CABLE

CABLE - engine block heater

1шт.

34

J910517

O-RING

O-RING - heater sealing, engine block heater

1шт.
