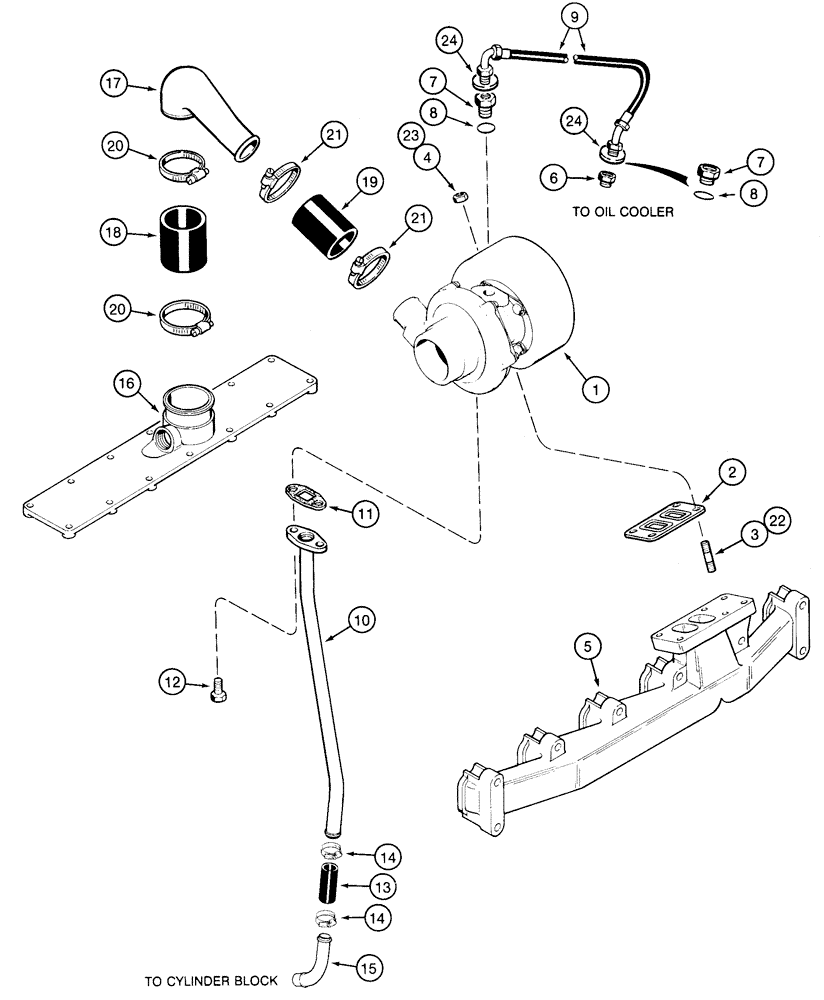

Запчасти Case 855E (2-08) - TURBOCHARGER SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

J919113

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, engine, see Figure 2-10 for correct assembly

1шт.

1

JR802289

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J901356

GASKET,0.5mm Thk

GASKET -, Serial Range: turbocharger-manifold

1шт.

3

J905417

STUD

STUD - turbocharger mounting, no longer used, for service order item 22, J818823 stud

4шт.

4

J901961

NUT

NUT - hex, special, 10 mm - 1.25, stud, no longer used, for service order item 23, J818824 nut

4шт.

5

J901683

MANIFOLD

MANIFOLD - exhaust, see Figure 2-6, item 1A

1шт.

6

A77457

FITTING

CONNECTOR ADAPTER - special, oil supply hose to oil filter head prior to Engine Serial Number 52107489

1шт.

7

J919687

HYD CONNECTOR

ADAPTER - female hex, special

1-2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

9

J918562

HOSE

HOSE - 21-3/16 inch (538 mm) long, turbocharger, replaces J909548 hose

1шт.

10

J918579

TUBE

TUBE - oil drain, upper

1шт.

11

J914388

GASKET

GASKET - turbo oil drain tube

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

2шт.

13

J903745

LARGE HOSE

HOSE,LARGE HOSE - 3 inch (76 mm) long

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

16

J904862

COVER

COVER - intake manifold, see Figure 2-6, item 8

1шт.

17

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

TUBE - air intake

1шт.

18

J916529

TRANSMISSION SLEEVE

HOSE - 3 inch (76 mm) long

1шт.

19

J916166

INTAKE AIR HOSE

HOSE - air intake

1шт.

20

J924386

COLLAR CLAMP

CLAMP - adjustable, special, hose retaining, replaces 214-261 clamp

2шт.

21

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

CLAMP - adj, 1-5/16 - 2-1/4 inch dia

2шт.

22

J818823

STUD

STUD - turbocharger mounting, used with item 23, J818824 nut only

4шт.

23

J818824

FLANGE NUT

NUT - hex flange, special, stud, used with item 22, J818823 stud only

4шт.

24

222-993

GASKET,3/8 Tube, Fl, Copper

GASKET, 3/8 Tube, Fl, Copper

2шт.
