Запчасти Case 855E (2-06) - MANIFOLDS, 6-590 ENGINE, 6T-590 ENGINE, EXHAUST (02) - ENGINE

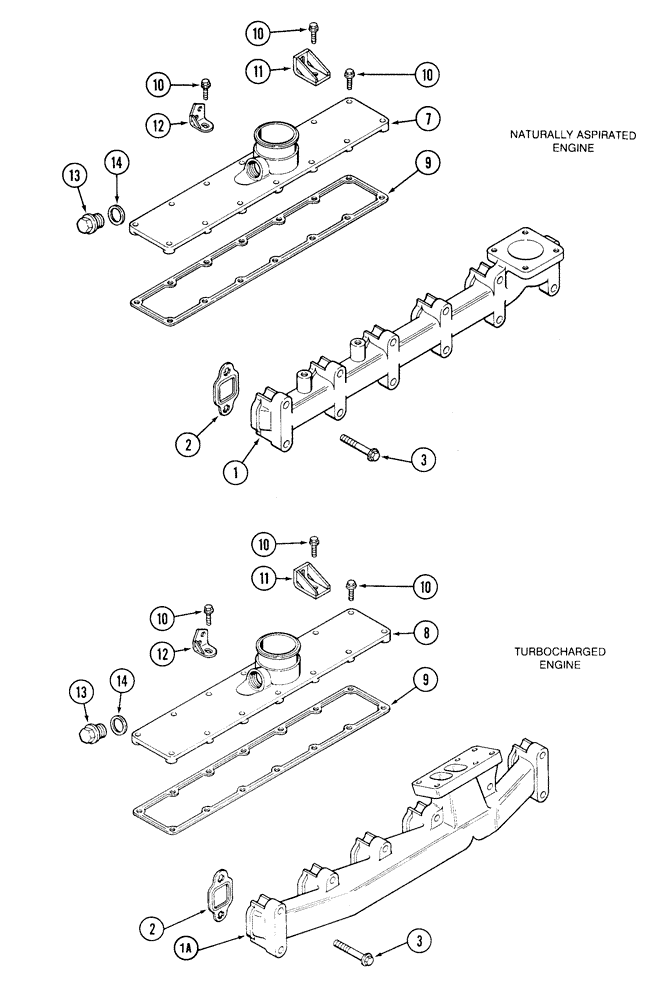

Схема запчастей Case 855E - (2-06) - MANIFOLDS, 6-590 ENGINE, 6T-590 ENGINE, EXHAUST (02) - ENGINE
2
10
9
14
13
9
7
12
1a
8
11
10
13
2
1
14
10
11
3
10
10
3
10
12

Артикул

Название

Примечание

Количество

1

J901326

MANIFOLD

- exhaust, naturally aspirated

1шт.

1a

J901683

MANIFOLD

- exhaust, turbocharged

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

12шт.

7

J904444

COVER

- intake manifold, naturally aspirated

1шт.

8

J904862

COVER

- intake manifold, turbocharged

1шт.

9

J914029

GASKET

- mounting, intake cover

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake Hex Flg Hd, M8 x 1.25 x 25

16шт.

11

J917777

BRACE

- fuel tube, see Figures 3-8 and 3-10, intake

2шт.

12

J917778

BRACE

- fuel tube, see Figures 3-8 and 3-10, intake

2шт.

13

J907185

PLUG

- manifold, intake

1шт.

14

J906773

WASHER

- plug sealing, intake

1шт.

A77417

VALVE

KIT - manifold, intake, naturally aspirated, no longer available, order items 7, 13 and 14 listed above

1шт.

A77418

KIT

- manifold, intake, turbocharged, no longer available, order items 8, 13 and 14 listed above

1шт.
