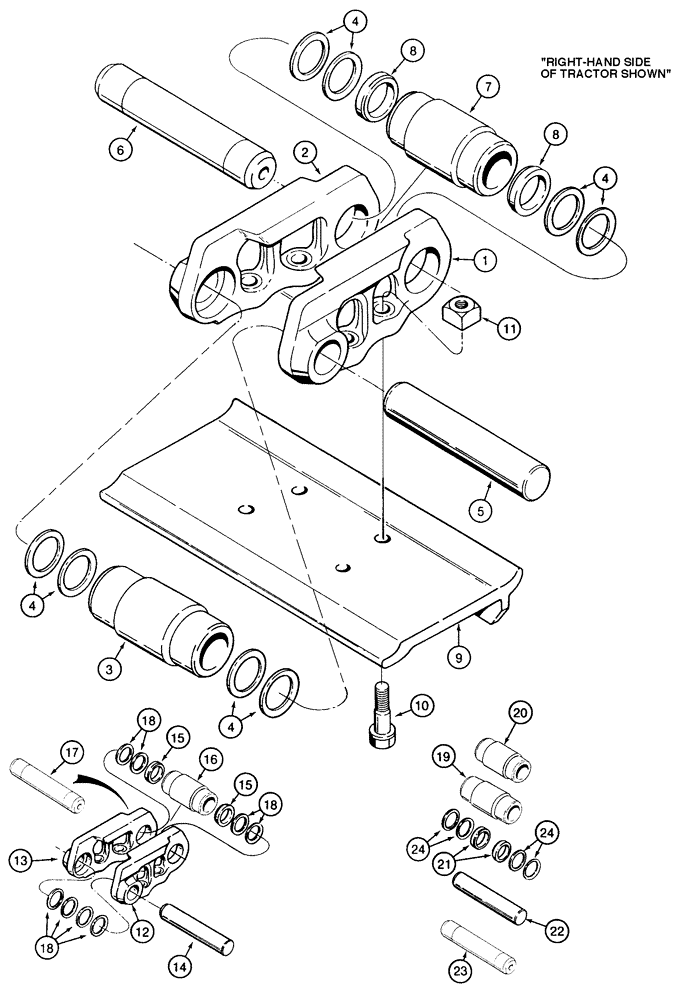

Запчасти Case 855E (5-14) - SEALED TRACK CHAIN, IF USED (11) - TRACKS/STEERING

R56723

CHAIN (CE)

CHAIN ASSEMBLY - 38 unit

2шт.

See Figure 5-12 for Case Lubricated Track Chain.

1шт.

1

R56490

LINK

- track, right-hand

38шт.

2

R56489

LINK

- track, left-hand

38шт.

3

R56517

BUSHING

- link, standard pin

37шт.

4

R50211

WASHER

SPRING - Belleville, bushing

152шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

- standard

37шт.

6

R54281

PIN,33.41mm OD x 183.5mm L

- master link

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

- master link

1шт.

8

R50210

SPACER

- master bushing

2шт.

9

REF

INSTRUCTION

SHOE - track, see figure 5-16 for track shoe options

76шт.

10

D48004

FLANGE BOLT

BOLT - hex, special

304шт.

11

R57375

SQUARE NUT

- square, special

304шт.

R56022

CHAIN (CE)

KIT - chain unit, includes instruction sheet, standard & master track pins

1шт.

12

R56490

LINK

- track, right-hand, chain unit kit (includes standard & master track pins)

1шт.

13

R56489

LINK

- track, left-hand, chain unit kit (includes standard & master track pins)

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

- track, chain unit kit (includes standard & master track pins)

2шт.

15

R50210

SPACER

- master bushing, used with master pin, chain unit kit (includes standard & master track pins)

2шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

- master link, chain unit kit (includes standard track pins)

1шт.

17

R54281

PIN,33.41mm OD x 183.5mm L

- master link, chain unit kit (includes standard track

1шт.

18

R50211

WASHER

SPRING - Belleville, bushing, chain unit kit (includes standard & master track pins)

8шт.

R56023

KIT

- pin and bushing, includes instruction sheet, services complete track chain for both sides of tractor

1шт.

19

R56517

BUSHING

- link, standard pin, (services complete track chain, both sides of tractor)

74шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

- master link, 4 inch long, pin kit (services complete track chain, both sides of tractor)

2шт.

21

R50210

SPACER

- master bushing, pin kit (services complete track chain, both sides of tractor)

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

- standard, bushing kit (services complete track chain, both sides of tractor)

74шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

- master, bushing kit (services complete track chain, both sides of tractor)

2шт.

24

R50211

WASHER

SPRING - Belleville, bushing, pin kit (services complete track chain, both sides of tractor)

304шт.
