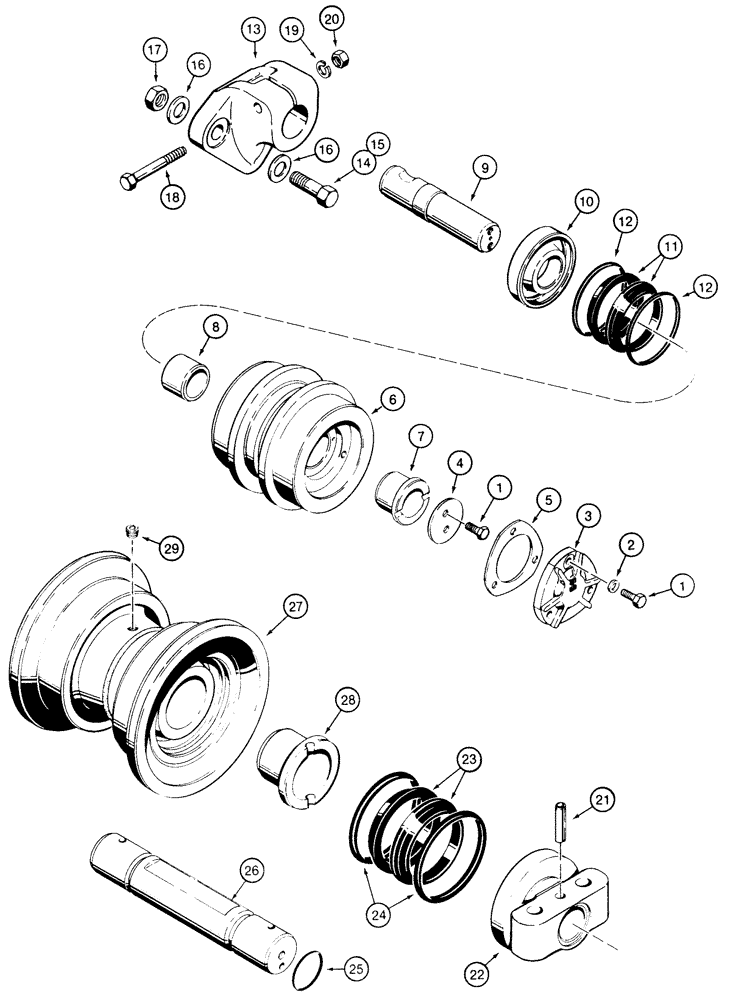

Запчасти Case 855E (5-08) - TRACK ROLLER ASSEMBLIES, AND CARRIER ROLLER MOUNTING, R33965 CARRIER ROLLER AND MOUNTING (11) - TRACKS/STEERING

R33965

ROLLER

ASSEMBLY - carrier

2шт.

1

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER

1шт.

3

R33959

CYLINDER END CAP

CAP - carrier roller

1шт.

4

R33960

PLATE

- retainer

1шт.

5

R33964

GASKET

- cover

1шт.

R33967

CARRIER

HUB ASSEMBLY - carrier roller

1шт.

6

NSS

NOT SOLD SEPARAT

HUB - roller

1шт.

7

R33951

BUSHING

- roller with flange

1шт.

8

R33958

BUSHING

- roller

1шт.

R33969

SHAFT

ASSEMBLY - carrier roller

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - carrier roller

1шт.

10

R33962

RETAINER

- seal

1шт.

R33607

SEAL

ASSEMBLY - face, carrier roller

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

- face seal

2шт.

13

D45485

BRACKET

- carrier roller mounting

2шт.

14

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

BOLT, Locking, 3/4-10 x 2", G8, Loader models

4шт.

15

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

Dozer models Hex, 3/4"-10 x 2 1/4", G8

4шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

8шт.

17

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

4шт.

18

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

R56593

SHIFTER ROLLER

ROLLER ASSEMBLY - track

10-12шт.

21

R33563

ROLL PIN

PIN - roll, shaft retaining, R56593 track roller assembly

2шт.

22

R33560

BUSHING

CAP - track roller, with mounting block, R56593 assembly

2шт.

S113075

SEAL

ASSEMBLY - oil, face, R56593 track roller

2шт.

23

NSS

NOT SOLD SEPARAT

SEAL - rubber, R56593 track roller assembly

2шт.

24

N6846

O-RING,75.7mm ID x 9.5mm Width

- seal, R56593 track roller assembly

2шт.

25

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

R56593 track roller assembly -224, 70 Duro, 1.734" ID x .139" Thk

2шт.

26

R33561

SHAFT

- roller, R56593 track roller assembly

1шт.

R56594

HUB ASSY.

HUB ASSEMBLY - no longer available, order R56593, track roller

1шт.

27

NSS

NOT SOLD SEPARAT

HUB - R56593 track roller assembly

1шт.

28

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- flanged, hub, R56593 track roller assembly

2шт.

29

R33557

PLUG

- hex socket, R56593 track roller assembly

1шт.
